Panasonic TH-P54Z1D Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Plasma TV
  5. TH-P54Z1D
  6. Service manual
Panasonic TH-P54Z1D Service Manual

Panasonic TH-P54Z1D Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TH-P54Z1D
Model No.
TH-P54Z1M
TH-P54Z1N
TH-P54Z1T
TH-P54Z1DM
TH-P54Z1MM
TH-P54Z1SM
TH-P54Z1TM
TU-Z100D
TU-Z100M
TU-Z100S
TU-Z100T
SP-54Z1A
GPF12ZA Chassis
© Panasonic Corporation 2009.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.ITD0907082CE
Plasma Television

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-P54Z1D

Summary of Contents for Panasonic TH-P54Z1D

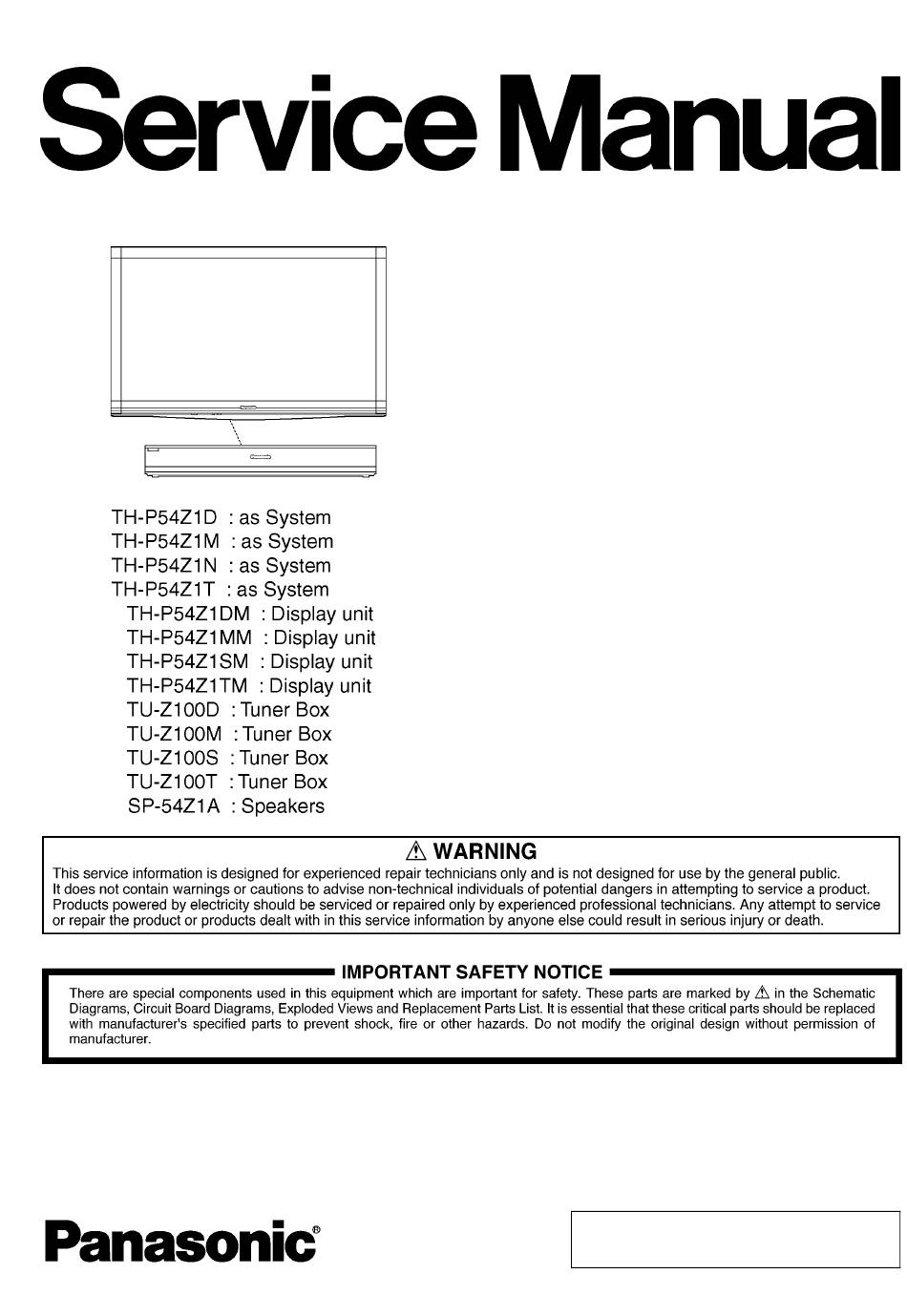

  • Page 1 ORDER NO.ITD0907082CE Plasma Television TH-P54Z1D Model No. TH-P54Z1M TH-P54Z1N TH-P54Z1T TH-P54Z1DM TH-P54Z1MM TH-P54Z1SM TH-P54Z1TM TU-Z100D TU-Z100M TU-Z100S TU-Z100T SP-54Z1A GPF12ZA Chassis © Panasonic Corporation 2009. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 14.2. Electrical Replacement Parts List ------------------ 162 1.1. General Guidelines ----------------------------------------3 1.2. Touch-Current Check--------------------------------------3 2 Warning --------------------------------------------------------------4 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4 2.2. About lead free solder (PbF) ----------------------------5 3 Service Navigation------------------------------------------------6 3.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. Service Hint 3.1.1. Tuner box Board Name Function Board Name Function Power Supply Front Terminal Non-serviceable. SD Card Slot, HDMI4 in Q-Board should be exchanged for service. Power Switch, Key Switch, Power LED, SD LED Digital Signal Processor HDMI out...
  • Page 7 3.1.2. Display unit Board Name Function Board Name Function Power Supply Data Driver (Lower Right) Digital Signal Processor Data Driver (Lower Center) HDMI in Data Driver (Lower Left) Fan control Scan Drive Power Switch Scan out (Upper) Non-serviceable. IR Remote receiver, Power LED, C.A.T.S sensor SU-Board should be exchanged for service.

  • Page 8: Applicable Signals

    3.2. Applicable signals COMPONENT (Y, P ), HDMI * Mark: Applicable input signal Signal name COMPONENT HDMI 525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p...

  • Page 9: Specifications

    4 Specifications Power Source AC 220 - 240 V, 50 / 60 Hz Power Consumption Average use 348 W Standby condition Display Unit: 0.5 W Tuner Box: 0.5 W Display panel Aspect Ratio 16:9 137 cm (diagonal) 1,198 mm (W) × 673 mm (H) Visible screen size 2,073,600 (1,920 (W) ×...
  • Page 10 Monitor Output RCA PIN Type × 2 AUDIO L - R 0.5 V [rms] (high impedance) RCA PIN Type × 1 1.0 V [p-p] (75 Ω) VIDEO Others HDMI1 - 4 Input TYPE A Connectors This TV supports “HDAVI Control 4” function. HIGH-DENSITY D-SUB 15PIN R, G, B / 0.7 V [p-p] (75 Ω) PC Input HD, VD / TTL Level 2.0 - 5.0 V [p-p] (high impedance)

  • Page 11: Service Mode

    5 Service Mode 5.1. Tuner box 5.1.1. How to enter into Service Mode While pressing [VOLUME ( - )] button of the Tuner box, press [0] button of the remote control three times within 2 seconds. 5.1.1.1. Key command [1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction...
  • Page 12 5.1.1.2. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. 5.1.1.3. How to exit Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
  • Page 13 5.1.2. Monitor mode 5.1.2.1. How to access 1. Select [Monitor] in Service Mode of Tuner box. 2. Press [OK] button on the remote control. 5.1.2.2. How to enter into Service Mode of the Display unit While pressing [VOLUME ( - )] button of the Display unit, press [0] button of the remote control three times within 2 seconds. Service mode of the Display unit sees section 5.2.
  • Page 14 5.1.2.3. How to enter into Self-check of the Display unit Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the Display unit, press [OK] button on the remote control for more than 3 seconds. Self-check indication and forced to factory shipment setting: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the Display unit, press [MENU] button on the remote control for more than 3 seconds.
  • Page 15 5.1.3. Service tool mode 5.1.3.1. How to access 1. Select [SRV-TOOL] in Service Mode. 2. Press [OK] button on the remote control. 5.1.3.2. Display of SOS History SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication will be cleared by [Self-check indication and forced to factory shipment setting].

  • Page 16: Display Unit

    5.2. Display unit 5.2.1. How to enter into Service Mode Service mode of display unit have 2 versions. 1. Separate mode: Normal mode (Connect the Display unit and Tuner Box). Enter: Monitor mode (See section 5.1.2.). 2. Stand alone mode: WB-ADJ mode (Connect the Display unit and HDMI equipment (Ex. DIGA) with HDMI cable). Tools: IR remote control (Recommended IR remote control 09’...
  • Page 17 5.2.1.2. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. 5.2.1.3. How to exit Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
  • Page 18 5.2.2. Service tool mode 5.2.2.1. How to access 1. Select [SRV-TOOL] in Service Mode. 2. Press [OK] button on the remote control. 5.2.2.2. Display of SOS History SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication will be cleared by [Self-check indication and forced to factory shipment setting].

  • Page 19: Hotel Mode

    5.3. Hotel mode 1. Purpose Restrict a function for hotels. item Function 2. Access command to the Hotel mode setup menu Hotel Mode Select hotel mode ON/OFF In order to display the Hotel mode setup menu, please Initial INPUT Select input signal modes. enter the following command (within 2 second).

  • Page 20: Troubleshooting Guide

    6 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 6.1. Check of the IIC bus lines 6.1.1. Tuner box 6.1.1.1. How to access Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the Tuner box, press [OK] button on the remote control for more than 3 seconds.
  • Page 21 6.1.2. Display unit 6.1.2.1. How to access Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the Display unit, press [OK] button on the remote control for more than 3 seconds. Self-check indication and forced to factory shipment setting: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the Display unit, press [MENU] button on the remote control for more than 3 seconds.

  • Page 22: Power Led Blinking Timing Chart

    6.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the Tuner box and Display unit.

  • Page 23: No Power

    6.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 6.2.)

  • Page 24: No Picture

    6.4. No Picture...

  • Page 25: Local Screen Failure

    6.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 26: Service Fixture & Tools

    7 Service Fixture & Tools 7.1. SC jig Purpose: To find the failure board (SC or SU/SD) when the power LED is blinking 7 times. SC jig: Jumper connector to connect to SC50 connector on SC board Part number: TZSC09187 How to use: Caution: Remove SC jig from SC board after inspection.

  • Page 27: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Tuner box 8.1.4. Remove the Front panel assy , ×2 , ×3 1. Remove the claws (×2 ) and remove 8.1.1. Remove the Top case the Front panel assy. 1. See Service Hint (Section 3.1.1.) 8.1.2.
  • Page 28 8.1.9. Remove the DH-Board and the DH- 5. Remove the G-Board. Board shield metal 1. Remove the Rear panel. (See section 8.1.2.) 2. Disconnect the flexible cable (DH5). 3. Disconnect the connectors (DH71 and DH72). 4. Remove the screws (×4 ) and remove the DH-Board.
  • Page 29 8.1.10. Remove the A-Board 1. Remove the Rear panel. (See section 8.1.2.) 2. Remove the DH-Board and DH-Board shield metal. (See section 8.1.9.) 3. Unlock the cable clampers to free the cable. 4. Disconnect the flexible cables (A5 and A11). 5.

  • Page 30: Display Unit

    8.2. Display unit 8.2.2. Remove the Pedestal stand 1. Remove the Plasma panel section from the servicing 8.2.1. Remove the Speakers (L, R) stand and lay on a flat surface such as a table (covered 1. Remove the Speaker cables (L, R). by a soft cloth) with the Plasma panel surface facing downward.
  • Page 31 8.2.3. Remove the Bottom covers (C, L 8.2.6. Remove the AC filter shield metal and R) 1. Remove the screws (×4 ) and remove the AC filter shield metal. 1. See Service Hint (Section 3.1.2.) 8.2.4. Remove the Rear cover and Rear cover bottom 1.
  • Page 32 8.2.8. Remove the AC inlet assy 6. Remove the Partition P-Board. Caution: To remove P.C.B. wait 1 minute after power was off for dis- charge from electrolysis capacitors. 1. Remove the screws (×2 ) and remove the AC inlet assy. 7.
  • Page 33 8.2.10. Remove the PB-Board 5. Remove the screws (×2 ) and remove the Partition DA-Board. 1. Unlock the cable clampers to free the cable. 2. Disconnect the connectors (PB1, PB2, PB3, PB4, PB5 and PB6). 3. Remove the screws (×4 ) and remove the PB-Board.
  • Page 34 8.2.15. Remove the SG-Board 8.2.17. Remove the J-Board 1. Remove the Bottom plate (C). (See section 8.2.5.) 1. Remove the Bottom plate (R). (See section 8.2.5.) 2. Disconnect the flexible cable (J1). 2. Remove the screws (×2 ) and remove the SG-Board 3.
  • Page 35 8.2.19. Remove the SU-Board 1. Remove the screws (×2 2. Remove the Partition SU-Board. 3. Remove the flexible cables (SU1B, SU2B, SU3B, SU4B and SU5B) connected to the SU-Board. 4. Remove the flexible cable (SU11-SD11) and the bridge connector (SC41-SU41). 5.
  • Page 36 8.2.22. Remove the SS2-Board 8.2.24. Remove the C1-Board 1. Disconnect the bridge connector (SS21-SS22) and dis- 1. Unlock the cable clampers to free the cable. connect the flexible cable (SS58). 2. Remove the DD-Heat-sink fastening screws (×10 2. Disconnect the connectors (SS35 and SS36). 3.
  • Page 37 8.2.26. Remove the C3-Board 8.2.28. Remove the Control button 1. Unlock the cable clampers to free the cable. 1. Disconnect the flexible cable (J1). (See section 8.2.17.) 2. Remove the DD-Heat-sink fastening screws (×10 2. Remove the screws (×11 3. Remove the DD-Heat-sink (×5). 3.
  • Page 38 8.2.31. Replace the plasma panel 2. Remove the Corner metal. (See section 8.2.29.) 3. Remove the screws (×18 Caution: Place the Plasma panel on a flat surface of a table (cov- ered by a soft cloth) and a cushion. A new plasma panel itself without Cabinet assy is fragile. To avoid the damage to new plasma panel, carry a new plasma panel taking hold of the Cabinet assy.

  • Page 39: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Adjustment Procedure 9.1.1. Driver Set-up 9.1.1.1. Item / Preparation 1. Input a white signal to plasma video input. 2. Set the picture controls as follows. Picture menu : Dynamic PNR : Min Aspect : 16:9 Caution 1.
  • Page 40 9.1.2. Initialization Pulse Adjust 1. Input the White signal to plasma video input. 2. Set the picture controls as follows. Picture menu : Dynamic PNR : Min Aspect : 16:9 3. Connect Oscilloscope to TPSC1 (SC). Check the voltage (T2) at 100μs period on the down slop. Test point Volume Level...
  • Page 41 9.1.4. Adjustment Volume Location 9.1.5. Test Point Location...

  • Page 43: Block Diagram

    10 Block Diagram 10.1. Main Block Diagram (Tuner box) GS SD CARD SLOT DIGITAL SIGNAL PROCESSOR HDMI4 TMDS DATA TMDS DATA GS11 HDMI EQ HDMI4 +5V(S) NOR FLASH +3.3V(S) CUP-BUS +5V(S) SD-USB SD CARD SD CARD DATA GS09 CONV. SLOT 10BASE-T/ PCI BUS ETHERNET DATA...

  • Page 44: Main Block Diagram (Display Unit)

    10.2. Main Block Diagram (Display unit) DISPLAY UNIT DIGITAL SIGNAL PROCESSOR SG SD CARD SLOT HDMI IN SD CARD DATA SD CARD SG52 SLOT TMDS DATA TMDS DATA TMDS DATA HDMI IN HDMI EQ GH11 DA11 POW_WiHD GL SD LED WiHD_DET POW_WiHD WiHD_DET...

  • Page 45: Tuner Box (1/3) Block Diagram

    10.3. Tuner box (1/3) Block Diagram D3015 JK4500 JK4501 JK4502 OPTICAL DIGITAL SIGNAL PROCESSOR AUDIO OUT HDMI IN 1 HDMI IN 2 HDMI IN 3 ANT IN FRONT TERMINAL TU2901 TUNER IIC_TU FRONT_Y FRONT_C JK3701 FRONT_V FRONT_L FRONT_R HPOUT_L HEADPHONE HPOUT_R IC4510 ADV7470...

  • Page 46: Tuner Box (2/3) Block Diagram

    10.4. Tuner box (2/3) Block Diagram JK8301 DIGITAL SIGNAL PROCESSOR ETHERNET IC8503 IC8504 SUB3.3V EEPROM ETHERNET CONTROL IC8001 Peaks AVC (MAIN MPU+VIDEO SIGNAL PROCESSOR) PCI BUS IC5110 IC8004 LVDS RX CLOCK 3.3V Y/UV_16bit CLOCK LVDS DATA LVDS_I/F OSD_16bit LOSD_OUT IC8581 GC6 RST NAND FLASH...

  • Page 47: Tuner Box (3/3) Block Diagram

    10.5. Tuner box (3/3) Block Diagram HDMI OUT IC9401 IC9005 IC9004 LVDS RX KYOTO LVDS TX IC2600 R/G/B_ R/G/B_ Dual 10bit LVDS FRC-Q LVDS DATA LVDS DATA LVDS 30bit 30bit LVDS LVDS OUT DIGITAL DIGITAL LVDS DATA DDC IIC FRC 1.05V JK9001 IC2601 IIC0...

  • Page 48: Display Unit (1/4) Block Diagram

    10.6. Display unit (1/4) Block Diagram DIGITAL SIGNAL PROCESSOR HDMI IN IC3902 GH11 DA11 IC24510 SUB+5V ADV7471 STB5V EEPROM SUB+3.3V (ADV7496) (ADAV4622) Q25000 Q25002 TMDS DATA SUB+3.3V TMDS DATA IC3901 CLOCK CLOCK TMDS DATA (LED:10TIMES) (LED:10TIMES) HDMI IN RX1 VOLTAGE HDMI CLOCK DDC IIC...

  • Page 49: Display Unit (2/4) Block Diagram

    10.7. Display unit (2/4) Block Diagram DIGITAL SIGNAL PROCESSOR IC25100 PANEL IC29300 PD3-H IIC2 R/G/B_36bit DA31 PORT-A Y/UV_16bit VIDEO DATA PORT-C *PLASMA AI VIDEO DATA LVDS DATA LVDS DATA *CPG with SS OSD_16bit LVDS *H/V Sync Control LOSD VIDEO DATA *Sub Filed Processor +3.3V(P) IC29303...

  • Page 50: Display Unit (3/4) Block Diagram

    10.8. Display unit (3/4) Block Diagram POWER SUPPLY COLD COLD MC203 F201 Vsus Vsus Vsus OUT POWER OUT RECTIFIER SS11 MC601 VR201 Vsus Vsus IC202 IC201 PC201 IC601 Vsus Vsus PHOTO COUPLER ERROR DET POWER CONTROL CONTROL PC202 SUS_ON PHOTO COUPLER Q607 PC601 PFC_ON...

  • Page 51: Display Unit (4/4) Block Diagram

    10.9. Display unit (4/4) Block Diagram SCAN DRIVE TPVSUS Vsus SC50 FACTORY TPVSET IC16791 VSET GEN. SHUNT REG 16V-F DC/DC IPD CIRCUIT SUSTAIN DRIVE CONVERTER IC16788,89 VF_GND Q16604 PC16601 CPH2 IC16771 PHOTO COUPLER TPVSUS Vad+5V Q16607 IC16661 Vsus PC16603 Q16661 IPD CIRCUIT SCAN OUT (UPPER) CERS...

  • Page 52: Wireless Unit Block Diagram

    10.10. Wireless unit Block Diagram WiHD RECEIVER WiHD TRANSMITTER IC31009 IC31002 IC31001 IC30001 IC30002 IC30013 HDMI-Rx SB9120(BB) SB9110(RF) SB9111(RF) SB9121(BB) HDMI-Tx SiI9135 NETWORK PROCESSOR RF-Rx NETWORK PROCESSOR SiI9134 RF-Tx RF SIGNAL RF SIGNAL HDMI DATA 36bit BB IN (V/A) (V/A) BB OUT HDMI DATA 36bit TMDS DATA...

  • Page 53: Wiring Connection Diagram

    11 Wiring Connection Diagram 11.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 11.2. Wiring (Tuner box)

  • Page 54: Wiring (Display Unit 1)

    11.3. Wiring (Display unit 1) 11.4. Wiring (Display unit 2)

  • Page 55: Wiring (Display Unit 3)

    11.5. Wiring (Display unit 3) 11.6. Wiring (Display unit 4)

  • Page 56: Wiring (Display Unit 5)

    11.7. Wiring (Display unit 5) 11.8. Wiring (Display unit 6)

  • Page 57: Schematic Diagram

    12 Schematic Diagram 12.1. Schematic Diagram Note...

  • Page 58: Tuner Box

    12.2. Tuner box 12.2.1. G and K-Board Schematic Diagram K-BOARD TNPA4869AD G-BOARD TNPA4897AC JK3702 PC IN POWER_LED K1FY115B0021 ZA3701 ZA3703 K4AD01D00004 K4AD01D00004 *R3786 *R3790 7.15k *D2702 C2700 D2700 B3AGB0000057 MAZ80560ML 0.01u *R3784 *R3781 *R3789 14.3k 6.65k 1.74k *R2702 *R2705 1.27k JS3701 JS3703 JS3705...
  • Page 59 12.2.2. GS-Board Schematic Diagram GS-BOARD TNPA4867AC R3802 D3814 B0HCMM000014 R3803 TP3803 R3847 *Q3804 R3812 D3813 R3806 2SD0601A0L B0HCMM000014 R3840 R3815 L3805 J0JHC0000117 C3829 C3823 C3813 C3814 R3841 0.1u 6.3V 0.1u HDMI_CEC R3805 4.7k R3821 *Q3801 TP3804 2SD0601A0L *Q3807 C3818 C3811 2SD0601A0L C3801 D3811...
  • Page 60 12.2.3. A-Board (1/20) Schematic Diagram A-BOARD TXN/A1DKUM (1/20) TP0907 TP0910 TP0912 TP0915 TP0917 TP0920 TP0901 TP0905 FRC_3.3V TO 14/20 TO 13/20 TO 17/20 TO 2/20 SUB3.3V SUB3.3V SUB_FS_3.3V R0987 R0988 R0993 2.7k IC8001 IC5100 IC4001 IC2600 R0967 R0984 R0902 R0990 R0901 R0991 R0904...
  • Page 61 12.2.4. A-Board (2/20) Schematic Diagram Peaks-COMMON A-BOARD TXN/A1DKUM (2/20) REF No. 8000-8999 FOR ADV7470 LOSD OUT--> PIO SERIAL I/F CPU BUS I/F LVDS I/F PCI BUS I/F POD,CI I/F TO 4/20 IC8001 SBI0 (SRL_DEBUG) TO 5/20 TO 4/20 TO 14/20 VOUTENB IC8001 VOUTENB...
  • Page 62 12.2.5. A-Board (3/20) Schematic Diagram Peaks-COMMON A-BOARD TXN/A1DKUM (3/20) REF No. 8000-8999 DDR2 #0 IC8002 C3ABTG000007 1.8V_DDRI/F C8046 TSTSEL AK29 IC8001 CH0DM0 IC8002 IC8002 IC8002 0.1u CH0DM1 IC8002 IC8002 IC8002 CH0DM0 MMDM0 IC8001 IC8002 IC8002 CH0DM1 CH0XDQS0 MMDM1 IC8001 IC8002 UDQS IC8002 IC8002...
  • Page 63 12.2.6. A-Board (4/20) Schematic Diagram A-BOARD TXN/A1DKUM (4/20) Peaks-DEST REF No. 8000-8999 SUB3.3V R8663 R8716 R8661 R8746 TO 2/20 TO 5/20 R8575 TO 2/20 ECLK AA_XECS0 AC_XPDCE2 R8860 R8576 XECS6 XPDCE2 XECS0 TO 14/20 R8577 XECS1 R8667 XECS2 AA_XECS2 R8578 XECS4 AA_XEAS TO 5,14/20...
  • Page 64 12.2.7. A-Board (5/20) Schematic Diagram A-BOARD TXN/A1DKUM (5/20) Peaks-MODEL R8622 REF No. 8000-8999 EXB2HVR000V C8583 0.1u FLASH *IC8581 TVRQ761 TO 2/20 R8715 AB_PCRST R8724 PCRST *R8765 AB_PCCLK0 R8726 < PCCLKO0 C8584 0.1u SUB3.3V AB_PCCXBE2 R8729 *R8767 PCCXBE2 AB_PCCXBE3 R8730 *R8723 PCCXBE3 TO 2/20 AB_PCAD0...
  • Page 65 12.2.8. A-Board (6/20) Schematic Diagram A-BOARD TXN/A1DKUM (6/20) GenX REF No. 1100-1499 SUB3.3V R1224 R1225 TO 2/20 TP1107 G-PEAKS_SERIAL_SBO R1181 SBI2 R1179 TP1108 G-PEAKS_SERIAL_SBI SBO2 D1107 R1182 MA3X704A0L G-HDMI_CEC_PU_ON TO 9/20 G-HDMI_CEC G-HDMI_CEC TO 4/20 G-SD_BOOT_STS G-SD_BOOT_STS TO 4,14/20 G-HDMI_5V_DET0 G-HDMI_5V_DET0 G-DTV_VOUTENB G-HDMI_5V_DET1...
  • Page 66 12.2.9. A-Board (7/20) Schematic Diagram A-BOARD TXN/A1DKUM (7/20) REF No. 1500-1999 D1507 R1582 MA3X704A0L AG-HDMI_CEC_PU_ON TO 18/20 AG-HDMI_CEC AG-HDMI_CEC R1605 IC1503 470k STB3.3V C0JBAE000321 *R1599 R1606 C1529 0.1u TO 6/20 G-RMIN TO 18/20 KYOTO_RST FACTORY USE KYOTO_RST DCM_XRST TP1501 DCM_XRST STB3.3V PON_RMO L1500...
  • Page 67 12.2.10. A-Board (8/20) Schematic Diagram A-BOARD TXN/A1DKUM (8/20) REF No. 4500-4799 PowerSupply TVDD_3.3V DVDD_1.8V VAVDD_1.8V C1AB00003045 C4626 SUB5V C4642 1.8V C4628 DGND IC4510 0.1u IC4510 TVDD DGND IC4510 0.1u IC4510 DVDD DGND IC4510 AGND IC4510 IC4510 VAVDD 3.3V DGND IC4510 IC4510 TVDD DGND...
  • Page 68 12.2.11. A-Board (9/20) Schematic Diagram A-BOARD TXN/A1DKUM (9/20) ADV_V Q4533 REF No. 4500-4799 B1ABCF000231 R4525 R4658 R4507 R4543 TO 6/20 G-DDCSCL2 G-DDCSCL2 R4541 G-DDCSDA2 G-DDCSDA2 Q4535 B1ABCF000231 R4530 R4733 R4740 R4533 R4732 D4611 B0BC5R6A0275 STB5V D4541 MA2J11100L R4667 R4735 R4540 L4506 D4617 J0JYC0000068...
  • Page 69 12.2.12. A-Board (10/20) Schematic Diagram ADV_A A-BOARD TXN/A1DKUM (10/20) REF No. 2000-2499 ADV_V SUB5V REF No. 4500-4799 Q2001 C2096 R2015 B1ABCF000231 TO 13/20 0.1u ADV-COMMON R2132 R2016 ADV7470 R2007 L2001 R2006 R2032 C2120 SUB9V G1C150KA0038 TO 8/20 SIF_IN1 L4511 J0JYC0000068 C4554 C4625 C4551...
  • Page 70 12.2.13. A-Board (11/20) Schematic Diagram A-BOARD TXN/A1DKUM (11/20) AVSW REF No. 3000-3399 PC IN G-BOARD G-BOARD TO 12/20 (G51) (G52) TP3110 SIDE_HP_R_TERMINAL TP3098 1.HPOUT_R TP3111 G-GND TO 12/20 SIDE_HP_L_TERMINAL 2.HPOUT_L TP3099 PC_G_TERMINAL TP3112 TP3113 TP3101 3.SUB_MONO TP3102 4.HP_DET B-GND TP3114 TP3103 PC_R_TERMINAL 5.HP_GND...
  • Page 71 12.2.14. A-Board (12/20) Schematic Diagram A-BOARD TXN/A1DKUM (12/20) VIDEO AVSW TO 11/20 REF No. 3000-3399 M-OUT TO 11/20 TO 11/20 E_AV1_VOUT JS3010 E_AV1_VOUT(19P)/A_VOUT__TERMINAL AVSW_R044PIN_CVBS/Y+COUT3 R3167 C3095 AUDIO C3083 R3169 100u TO 13/20 R3128 100k MAIN_RF_CVBS AVSW_R005PIN_CVBSIN4 C3103 100u M-OUT Q3001 AVSW_R043PIN_SAGCVBSOUT3 TO 11/20 L3014...
  • Page 72 12.2.15. A-Board (13/20) Schematic Diagram A-BOARD TXN/A1DKUM (13/20) FS-COMMON TUNER CRNo.4000-4199 REF No. 2900-2999 TUNER5V IC2960 SUB6V C0DBGHF00001 R2960 SUB_FS_1.8V Cont C2961 C2960 SUB3.3V 470p C4036 L4004 TUNER5V J0JYC0000068 TP2902 C4028 C4035 VOUT IC4002 0.1u C2962 6.3V ON/OFF C0CBCAC00358 1.8V R4044 *TU2901C ENGF9706GF...
  • Page 73 12.2.16. A-Board (14/20) Schematic Diagram A-BOARD TXN/A1DKUM (14/20) IC5100 MN84527 CRNo. 5000-5399 EXB-BUS (PEAKS) LSI TEST TO 5/20 PORT-E (Digital Out) SUB3.3V AA_ED15 IC5100 ED15 IC5100 TEST R5095 AA_ED14 IC5100 ED14 HSOH IC5100 HSOE IC5100 TO 4/20 IC5100 XIRQ2 AA_ED13 IC5100 ED13 (IRQ VBI)
  • Page 74 12.2.17. A-Board (15/20) Schematic Diagram A-BOARD TXN/A1DKUM (15/20) CRNo. 5000-5399 IC5100 MN84527 MCLK IC5100 R5088 IC5001 C3ABRY000015 GC6_1.2V GC6_1.8V LOSD DDR2 #0 1.8V_GCDDR 1.8V_GCDDR L5002 L5001 J0JHC0000045 J0JHC0000045 C5062 MOSDHSO2 IC5100 R5017 G_CH0DM0 G_CH0DM0 MOSDVSO2 IC5100 MMDM0 AJ16 IC5100 IC5001 IC5001 IC5001 0.1u...
  • Page 75 12.2.18. A-Board (16/20) Schematic Diagram STB-RESET FRC-Q-PDP REF No. 5400-5499 REF No. 2600-2749 A-BOARD TXN/A1DKUM (16/20) SUB3.3V R5486 D5486 TO 2/20 MA2J72800L POWER_DET RMCO TO 6/20 R5485 G-SW_OFF_DET STB5V SUB5V Q5475 R5417 R5412 Q5473 2SD0601ASL R5414 R5418 Q5478 R5415 2SD0601A0L Q5477 2SD0601A0L R5413...
  • Page 76 12.2.19. A-Board (17/20) Schematic Diagram FRC-Q IC2600 C1AB00003090 DDR2#0 Zport(input) IC2611 Xport(Out1st) Yport(Out2nd) C3ABSY000036 JEIDA 10bit TO 13/20 JEIDA 10bit TO 14/20 1ST_PIX_TA- 1st pixel TA- C1AB00003090 FRC_DDR_1.8V P_XA_TX0_N IC2600 1st pixel TA- GC6_TA2M IC2600 P_ZA_RX0_N 1ST_PIX_TA+ 1st pixel TA+ P_XA_TX0_P IC2600 C2722...
  • Page 77 12.2.20. A-Board (18/20) Schematic Diagram POWER-Peaks A-BOARD TXN/A1DKUM (18/20) CRNo.4400-4499 REF No. 5600-5749 F15V L5604 L5605 PA5600 G1C100MA0203 J0JHC0000045 K5H5022A0031 C5619 C5611 VJ5600 C5631 C5632 R5630 SUB1.2V/1.8V DH-BOARD 3.3k C5626 (DH71) F15V C5624 C5621 C5618 C5612 0.1u CTL1 0.01u R5621 3300p VJ5602 DRVH1...
  • Page 78 12.2.21. A-Board (19/20) Schematic Diagram A-BOARD TXN/A1DKUM (19/20) POWER-MODEL POWER-GC6 REF No. 5400-5499 CRNo.5300-5399 SUB9V IC5481 C0DBEJG00001 (FIN) Q5431 TP5431 STB3.3V B1ADCE000022 R5433 R5515 TO 6/20 SUB5V G-SOS R5497 R5499 C5432 R5434 R5431 294k 2.2k C5490 0.1u R5496 4.7u VJ5300 F15V R5432 3.3k...
  • Page 79 12.2.22. A-Board (20/20) Schematic Diagram A-BOARD TXN/A1DKUM (20/20) REF No. 2750-2899 STB5V TP1062 FACTORY USE STB3.3V FACTORY USE STB5V TP0101 TP0154 STB5V R0180 STB3.3V TO 6,7/20 TP0102 GenX5_SRQ G-SRQ_GENX IIC_CONT/SRQ TO 1/20 IIC_CONT TP0104 GenX8_SCL1 (GenX8 Loarder/E2PROM) TEMP SENSOR ADJ-GENX_SCL Panel_SCL (Panel Dpr.E2PROM) TP0105...
  • Page 80 12.2.23. DH-Board (1/3) Schematic Diagram DH-BOARD TXNDH1DKUU (1/3) IC9401 C1ZBZ0004060 LVDS RX A-BOARD (A5) SPI Configuration Mode LVDS INPUT POWER/GND Digital OUTPUT VCCO R9401 RE_O+(LSB) IC9401 IO_L05P_0 LVDS2P<4> IC9401 IC9401 IO_L01N_2/M0 AK_CLK R9441 IC9401 IO_L24P_1/A24 AK_HS R9438 RE_O-(LSB) IC9401 IO_L05N_0 LVDS2N<4>...
  • Page 81 12.2.24. DH-Board (2/3) Schematic Diagram DH-BOARD TXNDH1DKUU (2/3) IC9005 KYOTO IC9006 C1AB00003092 DDR-SDRAM C3ABQJ000055 IC9006 VSS_Thermal AK_B19 AH_B9 L8R_DQ12 L8R_A11 IC9006 VSSQ IC9006 R9063 IC9005 DT1[29] IC9005 DT2[15] IC9005 OSD[15] IC9005 HDO[29] IC9005 MDT[31] IC9005 MAD[11] AK_B18 AH_B8 EXB28V820JX L8R_DQ13 L8R_A10 IC9006 VSS_Thermal...
  • Page 82 12.2.25. DH-Board (3/3) Schematic Diagram DH-BOARD TXNDH1DKUU (3/3) D9004 DH3.3V L9012 DH3.3V EZAEG2A50AX J0JYC0000068 D9005 EZAEG2A50AX DH1.2V L9011 D9006 J0JYC0000068 EZAEG2A50AX L9013 D9007 J0JYC0000068 EZAEG2A50AX C9309 D9008 EZAEG2A50AX 0.1u D9009 EZAEG2A50AX D9010 EZAEG2A50AX JK9001 R9458 D9011 C9310 EZAEG2A50AX 0.1u AH_G9 L9301 AH_G8 G1BYYYC00026...

  • Page 83: Display Unit

    12.3. Display unit 12.3.1. P(SUS)-Board Schematic Diagram P (MULTI)-BOARD (P57) RECTFIER P (MULTI)-BOARD (P53) CONTROL P (MULTI)-BOARD (P55) P (SUS)-BOARD ETX2MM718EAS COLD POWER OUT Vsus OUT Vsus POWER CONTROL SC-BOARD (SC2) SS-BOARD (SS11) Vsus ERROR DET COLD...
  • Page 84 12.3.2. P(MULTI)-Board (1/2) Schematic Diagram P(FILTER)-BOARD (P58) RECTFIER COLD P(SUS)-BOARD (P54) P(SUS)-BOARD (P51) CONTROL CONTROL ERROR DET P (MULTI)-BOARD ETX2MM718EBS (1/2) COLD...
  • Page 85 12.3.3. P(MULTI)-Board (2/2) Schematic Diagram COLD P (MULTI)-BOARD ETX2MM718EBS (2/2) SS2-BOARD (SS36) POWER CONTROL CONTROL COLD DA-BOARD (DA6) POWER MICOM SS-BOARD (SS12) DA-BOARD (DA6) COLD P(P-1)-BOARD (P56) RESET +15V ERROR DET FACTORY...
  • Page 86 12.3.4. P(FILTER)-Board Schematic Diagram P (FILTER)-BOARD ETX2MM718ECS AC CORD P (MULTI)-BOARD (P52)
  • Page 87 12.3.5. PB-Board Schematic Diagram PB-BOARD TNPA4864AE ZA5902 ZA5901 K4AZ01D00004 K4AZ01D00004 TO FAN A-I *PB5 TP5911 TP5912 TP5913 TP5910 TP5914 R5945 R5951 R5948 R5947 *R5949 K4AZ01D00004 K4AZ01D00004 +B FOR FAN ZA5903 ZA5900 GND FOR FAN D5913 D5914 D5915 *D5916 *D5917 D5907 D5911 D5904 D5905...
  • Page 88 12.3.6. GL, KA, J, S and SG-Board Schematic Diagram R3503 2.32k GL-BOARD TNPA4693AF CH.UP GL02 DA-BOARD R7800 (DA52) R3502 1.62k D7800 CH.DN SD LED B3AEB0000107 KEY SWITCH DA-BOARD SD BLUE LED R3501 (DA52) 1.74k L3501 KEYSCAN VOL.UP C3501 1000p VOL.DN J-BOARD TNPA4944 SIDE SD CARD SLOT...
  • Page 89 12.3.7. GH-Board Schematic Diagram GH-BOARD TXNGH1DKUM IC3906 VOUT R3975 100k C0CBCCC00138 ON/OFF Q3906 STBY_4V 2SD0601A0L To WiHD R3983 180k JK3902 C3956 C3957 R3987 DA-BOARD TP3916 180k (DA10) GH10 FL3906 TP3907 TP3915 J0HAYY000011 TP3908 WiHD_DET TP3909 WiHD-Rx(GenX2 -> Mon) TP3910 L3907 J0JCC0000059 WiHD-Tx(GenX2 <- Mon) IRQ_WiHD...
  • Page 90 12.3.8. DA-Board (1/18) Schematic Diagram DA-BOARD (1/18) TZTNP02DKUM SUFFIX *JS21000 *JS21018 A(AA) SUB3.3V SUB3.3V SUB3.3V IC28001 TO 2/18 R20958 R20957 R20960 R20959 R20962 R20961 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k AVC31 R20948 SCL0 PEAKS_SCL0 R20947 TO 11/18 SDA0 PEAKS_SDA0 R20950 PEAKS_SCL1 PEAKS_SCL1 SCL1...
  • Page 91 12.3.9. DA-Board (2/18) Schematic Diagram DA-BOARD TZTNP02DKUM (2/18) Peaks-AVC LOSD OUT -> GC6 FOR ADV7470 SERIAL I/F CPU BUS I/F LVDS I/F PCI BUS I/F POD,CI I/F TO 9/18 TO 4/18 TO 4/18 DEBUG VI2P1 IC28001 VI2P1 LOSDOUT0 SBI0 IC28001 SBI0 VI2P0 IC28001...
  • Page 92 12.3.10. DA-Board (3/18) Schematic Diagram DA-BOARD TZTNP02DKUM (3/18) Peaks-AVC IC28002 C3ABTY000015 DDR2 #0 1.8V_DDRI/F TSTSEL AK29 IC28001 CH0DM0 C28046 IC28002 IC28002 IC28002 CH0DM1 IC28002 IC28002 IC28002 0.1u CH0DM0 MMDM0 IC28001 IC28002 IC28002 IC28001 CH0DM1 CH0XDQS0 MMDM1 IC28001 IC28002 UDQS IC28002 IC28002 CH0DQS0 MN2WS0059...
  • Page 93 12.3.11. DA-Board (4/18) Schematic Diagram DA-BOARD (4/18) TZTNP02DKUM Peaks-MODEL ADMPX NON USE Adress Data Multi PleX USE SD-IF FLASH AA_ED0 AA_ED1 R28689 AA_ED2 EXB2HV680JV AA_ED3 SUB3.3V SD_SUB3.3V AA_ED4 SUB5V AA_ED5 SD_SUB3.3V R28801 AA_ED6 R28674 EXB2HV103JV AA_ED7 SUB3.3V TO 2/18 TO 9/18 AA_ED8 C21133 C21131...
  • Page 94 12.3.12. DA-Board (5/18) Schematic Diagram DA-BOARD TZTNP02DKUM (5/18) SUB3.3V SUB3.3V GenX8,EEPROM SUB3.3V R21216 R21169 R21167 SUB3.3V R21217 R21168 100k R21170 G-SUB3.3V_SENSE 100k Peaks-COMMON 100k R21224 G-MAIN9V_SENSE R21225 R21181 TP21107 G-DTV9V_SENSE R21196 SUB5V G-PEAKS_SERIAL_SBO SBI2 G-SUB5V_SENSE TP21108 TO 2/18 G-PEAKS_SERIAL_SBI G-MAIN3.3V_SENSE SBO2 R21194 R21179...
  • Page 95 12.3.13. DA-Board (6/18) Schematic Diagram DA-BOARD TZTNP02DKUM (6/18) ADV7471 HDMI I/F RECEIVER IC24510 ADV7471 10bit A/D (ADV7496) (ADAV4622) C1AB00003048 AUDIO PROCESSOR POWER SUPPLY TVDD_3.3V DVDD_1.8V VAVDD_1.8V C24642 C24626 C1AB00003048 C24628 SUB5V 0.1u 0.1u 0.1u IC24513 DGND IC24510 IC24510 TVDD DGND IC24510 IC24510 DVDD...
  • Page 96 12.3.14. DA-Board (7/18) Schematic Diagram DA-BOARD TZTNP02DKUM (7/18) ADV_V TP22008 SUB3.3V Q22022 R22142 2SB0709A0L G-SOUND_SOS To SOS C22301 OPERATE R22141 R22115 3.9k 2.2k 0.1u SOUND_15V R22114 D22014 2.2k MA2J11100L TP22018 R22118 C22302 D22017 0.1u L22018 MA2J11100L J0JHC0000042 C22436 C22361 C22362 C22438 GenX5 IC22301...
  • Page 97 12.3.15. DA-Board (8/18) Schematic Diagram DA-BOARD TZTNP02DKUM (8/18) LVDS-MODEL Peaks-COMMON TO 2/18 TO 5/18 GenX-DEST R24832 IS0VAL DRVMUTE R24844 G-PANEL_STBY_ON/PANEL_VCC_ON PANEL_STBY_ON R24834 GenX G-PANEL_READY READY R24842 TO 5/18 G-PANEL_ALARM/INVERTER_SOS ALARM R24841 R24835 100k 100k R24833 100k R24006 GENX7_SDA P3V_SDA01 R24001 TO 1,11,18/18 GENX7_SCL P3V_SCL01...
  • Page 98 12.3.16. DA-Board (9/18) Schematic Diagram LSI TEST PIN EXB-BUS (PEAKS) DA-BOARD TZTNP02DKUM (9/18) AA_ED15 IC25100 ED15 PORT-E (Digital Out) R25105 SUB3.3V 4.7k AA_ED14 IC25100 ED14 IC25100 TEST IC25100 XIRQ2 R25093 AA_ED13 IC25100 ED13 HSOH IC25100 HSOE IC25100 TO 4/18 IC25100 XIRQ1 R25231 R25094...
  • Page 99 12.3.17. DA-Board (10/18) Schematic Diagram DA-BOARD TZTNP02DKUM (10/18) R25077 MCLK IC25100 R25088 1.8V_GCDDR IC25001 C3ABRY000038 R25017 G_CH0DM0 G_CH0DM0 MMDM0 AJ16 IC25100 IC25001 IC25001 G_CH0DM1 G_CH0DM1 C25062 GC6_1.2V R25032 DDR2 #0 GC6_1.8V MMDM1 AK15 IC25100 IC25001 IC25001 0.1u IC25001 IC25001 UDQS IC25001 G_CH0DQS0 1.8V_GCDDR...
  • Page 100 12.3.18. DA-Board (11/18) Schematic Diagram DA-BOARD TZTNP02DKUM (11/18) STB-RESET SUB3.3V Peaks-COMMON TO 2/18 R25486 POWER_DET RMCO GENX-DEST TO 5/18 R25485 G-SW_OFF_DET IC25480 STB-RESET-LCD/PDP C1ZBZ0003972 TO 5,9/18 SUB5V STB_RST STB3.3V G-MON_MUTE STB_RESET G-MON_MUTE TO 5/18 G-SP_HP_MUTE G-SP_HP_MUTE R25461 SUB5V MONITOR_MUTE SUB5V ADV_A-DEST STB_RST DTB9V...
  • Page 101 12.3.19. DA-Board (12/18) Schematic Diagram 3.3V IC29805 DC-DC CONVERTER 15V->3.3V C0DBAYY00477 P15V P5V->FPGA2.5V PGND DA-BOARD TZTNP02DKUM (12/18) PGND P2.5V PGND P3.3V C29077 C29078 C29899 C29926 Panel-D L29001 G1C3R3Z00004 VOUT R29897 C29072 6.3V ON/OFF C29080 200p BOOT PSET R29079 C29071 R29898 C29073 Q29807 6.3V...
  • Page 102 12.3.20. DA-Board (13/18) Schematic Diagram DA-BOARD TZTNP02DKUM (13/18) Panel-D FPGA to PD3/FPGA P3.3V C29825 100p R29402 R29592 P3.3V P2.5V P1.2V C29889 R29618 R29578 XI_DONE 4.7k R29586 SFLATCH FP_SIU R29587 SFVRST FP_CLK R29616 SFRST IO_L01N_1 IO_L07P_3 IO_L08N_2/VS1 VCCINT C29543 C29542 16V 0.1u VCCO_1 IO_L09P_2/VS0 IO_L02N_2/MOSI/CSI_B...
  • Page 103 12.3.21. DA-Board (14/18) Schematic Diagram DA-BOARD TZTNP02DKUM (14/18) Panel-D D_TRST IC29300 TRST Low Active D_TMS IC29300 D_TCK IC29300 PD3H_ROM P3.3V L8R_CLKMO R29983 IC29300 CKMO D_TDO IC29300 20MHz(SS) IC29300 AP20 L8R_FCCLK D_TDI IC29300 FCCLK IC29300 C29469 16V 0.1u CCLK for FPGA L8R_PROG C29972 IC29300...
  • Page 104 12.3.22. DA-Board (15/18) Schematic Diagram DA-BOARD TZTNP02DKUM (15/18) Panel-D PD3H P1.2V P1.8V P1.8V_DDR2 P3.3V 1.20V L29900 R29702 IC29300 LVDOD5P IC29300 DOUTDA01 IC29300 DOUTDB01 IC29300 DOUTDC01 J0JHC0000117 L29904 J0JHC0000117 IC29300 LVDOD5N IC29300 DOUTDA02 IC29300 DOUTDB02 IC29300 DOUTDC02 C29968 L29903 IC29300 VDDIO IC29300 MLVVDD33 IC29300...
  • Page 105 12.3.23. DA-Board (16/18) Schematic Diagram DA-BOARD TZTNP02DKUM (16/18) Panel-D P1.8V_DDR2 DDR-Terminate to DDR C29993 L8R_DM0 IC29902 IC29902 IC29902 0.1u IC29300 IC29300 IC29300 IC29300 IC29300 AM20 VSS IC29300 MLVVSS IC29300 LVVSS L8R_DM1 IC29902 IC29902 IC29902 IC29300 IC29300 IC29300 IC29300 AD30 IC29300 AM21 VSS IC29300 MLVVSS...
  • Page 106 12.3.24. DA-Board (17/18) Schematic Diagram F15V POWER-Peaks DA-BOARD TZTNP02DKUM (17/18) L25604 L25605 PA25600 G1C100MA0203 J0JHC0000045 K5H5022A0031 C25631 C25632 C25619 C25611 C25630 POWER SUPPLY VJ25600 C25626 C25624 C25621 0.1u C25618 C25612 R25630 CTL1 3.3k 3300p 0.01u VJ25602 DRVH1 TP25602 L25601 SUB1.2V G1C3R3Z00004 R25632 VJ25603...
  • Page 107 12.3.25. DA-Board (18/18) Schematic Diagram DA-BOARD TZTNP02DKUM (18/18) CONNECTOR FOR_ADJUSTMENT_AND_DEVELOPMENT_PDP PB-BOARD STB5V DA30 (PB6) DA21 FAN15V FACTORY TP22761 TP22756 DA22 TP21062 FACTORY STB3.3V STB5V TP20154 R22767 TP20101 TP22757 STB5V STB3.3V G-FAN_MAX GenX-DEST TP20102 R21002 TP22758 TO 5/18 GenX5_SRQ TO 5/18 G-SRQ_GENX IIC_CONT/SRQ G-FAN_SOS...
  • Page 108 12.3.26. C1-Board (1/2) Schematic Diagram C1-BOARD TNPA4770AC (1/2) ZA17104 ZA17101 K4AD01Z00001 K4AD01Z00001 ZA17102 K4AD01Z00001 ZA17103 K4AD01Z00001 C17133 C17134 250V 250V 0.15u 0.15u C1_P5_3.3V PANEL DATA DRIVER C17102 C17131 C17132 C17135 C17136 250V 250V 250V 250V 0.15u 0.15u 0.15u 0.15u C1_P5_3.3V C1_P5_3.3V PANEL DATA PANEL DATA...
  • Page 109 12.3.27. C1-Board (2/2) Schematic Diagram C1-BOARD TNPA4770AC (2/2) AC_LED1 AB_LED1 AC_ODED1 AB_ODED1 AC_PCD1 AB_PCD1 AC_CLRD1 AB_CLRD1 R17142 C1_P5_3.3V EXB38V470JV 5V_DET 5V/P3.3V_DET R17126 P5V/P3.3V P5V/P3.3V AB_LED1 AB_ODED1 ODE1 AB_PCD1 AB_CLRD1 CLR1 DD1_2- DD1_2- DD1_2+ DD1_2+ DD1_1- DD1_1- DD1_1+ DD1_1+ DRVCLK1- DRVCLK1- DRVCLK1+ C17137 C17138...
  • Page 110 12.3.28. C2-Board (1/2) Schematic Diagram C2-BOARD TNPA4771AC (1/2) DA-BOARD (DA31) TERM C21_P5_3.3V C2_P5_3.3V R17204 R17241 EXB38V470JV AB_LED1_C1 AA_LED1 5V/P3.3V_DET AB_LED1 C2_P5_3.3V AB_ODED1_C1 AB_ODED1 P5V/P3.3V R17242 P5V/P3.3V EXB38V470JV AA_ODED1 AB_PCD1_C1 AA_PCD1 AB_PCD2 AB_LED1_C1 AB_CLRD1_C1 AA_PCD2 AB_CLRD1 AA_CLRD1 C2_P5_3.3V AB_ODED1_C1 ODE1 AB_PCD1_C1 C17213 0.1u AB_CLRD1_C1...
  • Page 111 12.3.29. C2-Board (2/2) Schematic Diagram C2-BOARD TNPA4771AC (2/2) ZA17204 ZA17203 K4AD01Z00001 K4AD01Z00001 DA-BOARD CB10 (DA32) TERM ZA17201 ZA17202 K4AD01Z00001 K4AD01Z00001 SS_5V C22_P5_3.3V C2_P5_3.3V R17293 5V_DET_O 5V/3.3V_DET_O 5V_DET_I 5V/3.3V_DET_I C2_P5_3.3V P5V/P3.3V SS_5V P5V/P3.3V C2_P5_3.3V SS_5V DRVSOS8 NC(NUEL) C17215 C17214 AA_CLRD2 AB_UEH 0.1u 0.1u R17245...
  • Page 112 12.3.30. C3-Board (1/2) Schematic Diagram C3-BOARD TNPA4772AC (1/2) SS_5V 5V/3.3V_DET_O R17326 220k 5V/3.3V_DET_I C3_P5_3.3V P5V/P3.3V SS_5V AB_CLRD2_C3 AC_CLRD2 P5V/P3.3V SS-BOARD SS2-BOARD AC_PCD4 AB_PCD4_C3 (SS33) (SS35) AC_ODED2 AB_ODED2_C3 AC_LED2 AB_LED2_C3 R17345 EXB38V470JV DRVSOS8_C3 DRVSOS8 NC(NUEL) AB_UEH AB_USL AB_USH AB_UML AB_UMH AB_CLRD2_C3 CLR2 AB_PCD4_C3 C17332...
  • Page 113 12.3.31. C3-Board (2/2) Schematic Diagram C3-BOARD TNPA4772AC (2/2) C17336 C17339 C17340 250V 250V 250V C17335 0.15u 0.15u 0.15u 250V 0.15u CB13 CB15 R17399 4.7k C3_P5_3.3V C3_P5_3.3V PANEL DATA PANEL DATA DRIVER DRIVER C17305 C17307 ZA17304 K4AD01Z00001 ZA17301 C17337 C17338 K4AD01Z00001 250V 250V 0.15u...
  • Page 114 12.3.32. SC-Board (1/4) Schematic Diagram SC-BOARD TNPA4840AF (1/4) Vsus P-BOARD (P2) Vsus Vsus C16411 C16412 C16413 C16414 C16415 C16416 C16417 C16418 220V 220V 220V 220V 220V 220V 250V 250V 130u 130u 130u 130u 130u 130u 1.1u 1.1u DA-BOARD (DA20) IC16561 SC20 C0JBAZ002692 TP16...
  • Page 115 12.3.33. SC-Board (2/4) Schematic Diagram SC-BOARD TNPA4840AF (2/4) Vsus Vsus D16401 B0FCCR000004 IC16771 C0CBADC00072 D16402 B0FCCR000004 Vad+5V 16V_F Vad+5V D16403 VOUT B0FCCR000004 PC16461 IC16464 C16533 B3PBA0000457 C16772 C16771 R16534 R16414 R16415 R16536 0.1u C0JBAB000715 AA_CMH 4.7u C16535 R16416 INVERTER D16411 R16411 MA2J11100L D16536...
  • Page 116 12.3.34. SC-Board (3/4) Schematic Diagram SC-BOARD TNPA4840AF (3/4) Vsus R16602 TP65 TP66 AA_CPH2 PC16601 D16608 R16606 16V_F B3PBA0000498 MAZ81200ML Q16604 R16604 B1CHPM000001 AA_CERS Vsus PC16603 C16602 R16765 R16631 R16633 B3PBA0000498 R16869 R16613 D16619 B0ECKP000047 D16616 MA3X152E0L C16604 R16611 R16614 C16603 PC16684 630V 630V...
  • Page 117 12.3.35. SC-Board (4/4) Schematic Diagram SC-BOARD TNPA4840AF (4/4) TP64 TPVSET R16719 TP45 AA_SEL R16731 100k TP41 R16720 AA_SIU R16721 TP42 L16699 D16715 AA_OC2 B0ECHR000001 G0C471KA0167 Vsus R16722 TP43 R16735 C16823 C16822 IC16788 R16744 AA_CLK R16713 TPVSUS VSET GEN. 187k R16877 D16714 C16821 630V...
  • Page 118 12.3.36. SS-Board (1/2) Schematic Diagram SS-BOARD TNPA4841AD (1/2) R16031 C16201 R16032 C16202 C16203 C16204 C16205 C16206 C16207 C16208 C16209 C16210 C16211 250V 250V 250V 250V 250V 250V 250V 250V 250V 250V 250V 1.1u 1.1u 1.1u 1.1u 1.1u 1.1u 1.1u 1.1u 1.1u 1.1u 1.1u...
  • Page 119 12.3.37. SS-Board (2/2) and SS2-Board Schematic Diagram R16001 Q16001 B1JBEN000001 *SS53 TNPA4841 TP51 ZA16001 SS11 ZA16011 K4CD01000011 R16002 Q16002 D16284 R16287 TP53 B1JBEN000001 MA3X152D0L SS53 330k C16284 0.1u PANEL TP54 R16003 R16288 330k SUSTAIN Q16003 ELECTRODE B1JBEN000001 C16285 0.1u D16285 R16284 R16289 MA3X152D0L...

  • Page 120: Printed Circuit Board

    13 Printed Circuit Board 13.1. Tuner box 13.1.1. A-Board A-BOARD (FOIL SIDE) TXN/A1DKUM R4459 CL2618 CL4431 Q 4 4 0 1 TP3118 TP3116 TP3114 TP3112 I C 8 5 8 0 A I C 8 5 8 0 TP8565 TP8554 TP8550 TP8549 TP8589...
  • Page 121 Parts Location Parts Location A-BOARD (FOIL SIDE) A-BOARD (COMPONENT SIDE) IC IC TRANSISTOR IC IC TRANSISTOR IC1000 Q0903 IC1502 Q0900 IC1100 Q0904 IC2008 Q0901 IC1101 Q0905 IC2600 Q2602 IC1500 Q2001 IC2604 Q2603 IC1501 Q2023 IC2605 Q2800 IC1503 Q2063 IC2606 Q2903 IC2601 Q2064 IC2607...
  • Page 122 A-BOARD (COMPONENT SIDE) TXN/A1DKUM C2719 I C 8 5 0 2 CN2600 R3320 R3321 CL5436 CL5435 R8801 R8511 C2617 C2611 IC8502 R8644 R4460 C8632 R8703 C8508 R2715 R0953 R0961 L4800 L4801 L4802 L4803 L4804 L4805 C2610 C2609 R0954 R0962 CL3098 CL3099 R3322 CL8470...
  • Page 123 13.1.2. DH-Board DH-BOARD (COMPONENT SIDE) DH-BOARD (FOIL SIDE) TXNDH1DKUU TXNDH1DKUU TNPA5035 B DH71 CL9227 TP9003 TP9002 TP9304 TP9001 TP9411 PA9201 CL9306 DH71 CL9205 CL9208 CL9211 CL9216 CL9221 CL9224 CL9418 R9473 R9471 CL9201 CL9204 CL9203 CL9202 CL9230 CL9206 CL9231 CL9207 CL9214 CL9212 CL9229 C9220...
  • Page 124 13.1.3. K-Board K-BOARD (FOIL SIDE) TNPA4869AD TNPA4869 C 7 8 1 0 S E E R E V E R S E F O R O R D E R N O . R 2 7 1 2 R 7 8 1 0 C 2 7 0 1 C 2 7 0 0 C 2 7 0 3...
  • Page 125 13.1.4. G-Board G-BOARD (FOIL SIDE) TNPA4897AC J S 3 7 0 6 J S 3 7 0 5 C 3 7 1 1 J S 3 7 1 0 J S 3 7 0 9 G 5 2 JS3706 G 5 1 JS3705 CL001 C3711...
  • Page 126 13.1.5. GS-Board GS-BOARD (FOIL SIDE) TNPA4867AC T P 7 7 0 4 T P 7 7 0 5 T P 7 7 0 1 GS11 T P 7 7 0 6 TP7704 CL7700 CL7701 T P 7 7 0 0 CL3813 R3802 R3803...

  • Page 127: Display Unit

    13.2. Display unit 13.2.1. P(SUS)-Board P (SUS)-BOARD (FOIL SIDE) ETX2MM718EAS P (SUS) Parts Location P (SUS))-BOARD (FOIL SIDE) MODULE VOLUME MC203 VR201 MC601 VR601...
  • Page 128 P (SUS)-BOARD (COMPONENT SIDE) ETX2MM718EAS P (SUS) Parts Location P (SUS)-BOARD (COMPONENT SIDE) TRANSISTOR VOLUME IC201 Q202 VR201 VR601 IC202 Q203 IC601 Q270 Q271 Q272 MODULE Q273 Q605 MC203 Q606 MC601 Q607 Q608 Q609 PHOTO COUPLER Q610 PC201 Q611 PC202 Q612 PC601 Q613...
  • Page 129 13.2.2. P(MULTI)-Board P (MULTI)-BOARD (FOIL SIDE) ETX2MM718EBS P (MULTI) Parts Location P (MULTI)-BOARD (FOIL SIDE) IC IC TRANSISTOR IC501 Q351 Q407 MODULE Q408 MC302 RESISTOR MC303 MC801 VR401...
  • Page 130 P (MULTI)-BOARD (COMPONENT SIDE) ETX2MM718EBS P (MULTI) Parts Location P (MULTI)-BOARD (COMPONENT SIDE) IC IC TRANSISTOR IC301 Q302 IC351 Q303 IC401 Q351 IC402 Q352 IC403 Q353 IC404 Q354 IC451 Q402 IC501 Q403 IC551 Q404 IC701 Q405 IC702 Q406 IC801 Q407 Q408 IC MODULE Q409...
  • Page 131 13.2.3. P(FILTER)-Board P (FILTER) P (FILTER)-BOARD (FOIL SIDE) P (FILTER)-BOARD (COMPONENT SIDE) ETX2MM718ECS ETX2MM718ECS...
  • Page 132 13.2.4. GH and PB-Board Parts Location Parts Location GH-BOARD PB-BOARD IC IC TEST POINT IC IC TEST POINT TP3913 TP3914 IC3901 TP3901 IC5900 TP5900 TP3915 IC3902 TP3902 IC5901 TP5901 TP3916 IC3904 TP3903 IC5902 TP5902 TP3917 IC3905 TP3904 IC5903 TP5903 TP3918 IC3906 TP3905 TP5904...
  • Page 133 13.2.5. GL, KA, J, S and SG-Board J-BOARD (FOIL SIDE) GL-BOARD (FOIL SIDE) TNPA4944 TNPA4693AF T N P A 4 9 4 4 TNPA4693 L E P R O R D E R N O . R 3 5 0 2 R 3 5 0 1 C 3 5 0 3 C 3 5 0 2...
  • Page 134 13.2.6. DA-Board DA-BOARD (FOIL SIDE) TZTNP02DKUM TNPH0791 I C 8 5 0 2 CL29859 CL22753 CL22752 TP22772 TP22764 TP22765 TP22766 TP22767 TP22768 TP22769 TP22770 TP22771 P b F TPF15 FL29805 TP22756 TP22758 TP22759 TP22774 CL29008 CL29863 CL22754 C29855 TP22757 C28508 R28649 TP22753 S E E...
  • Page 135 Parts Location Parts Location DA-BOARD (FOIL SIDE) DA-BOARD (COMPONENT SIDE) IC IC TRANSISTOR TEST POINT TRANSISTOR TEST POINT TP22012 TP24812 TP28561 TP22013 TP24813 TP28562 IC21100 Q22022 TP20101 IC21000 Q20903 TP28000 TP22014 TP24814 TP28563 IC21101 Q25000 TP20102 IC22301 Q20904 TP28001 TP22015 TP24815 TP28745 IC22302...
  • Page 136 DA-BOARD (COMPONENT SIDE) TZTNP02DKUM ( A A ) ( B A ) ( C A ) DA16 ( D A ) ( E A ) ( F A ) JS21000 JS21001 JS21002 JS21003 JS21004 JS21005 C28510 P b F DA30 JS21010 JS21013 JS21022...
  • Page 137 13.2.7. C1-Board C1-BOARD (FOIL SIDE) TNPA4770AC P b F T N P A 4 7 7 0 S E E R E V E R S E F O R O R D E R N O . C1-BOARD (COMPONENT SIDE) TNPA4770AC ZA101 1 C1...
  • Page 138 13.2.8. C2-Board Parts Location C2-BOARD IC IC IC17201 IC17202 IC17203 IC17211 C2-BOARD (FOIL SIDE) TNPA4771AC P b F T N P A 4 7 7 1 S E E R E V E R S E F O R O R D E R N O . C2-BOARD (COMPONENT SIDE) TNPA4771AC I C 2 1 1...
  • Page 139 13.2.9. C3-Board C3-BOARD (FOIL SIDE) TNPA4772AC T N P A 4 7 7 2 1 P b F S E E R E V E R S E F O R O R D E R N O . 1 2 3 C3-BOARD (COMPONENT SIDE) TNPA4772AC ZA301...
  • Page 140 13.2.10. SC-Board SC-BOARD (FOIL SIDE) TNPA4840AF T P 5 9 T P 6 2 T P 6 3 T P 6 0 T P 8 0 T P 7 8 S C 5 0 T P 7 9 T P 8 1 T P 5 1 S C 4 1 T P 4 1...
  • Page 141 Parts Location Parts Location SC-BOARD (FOIL SIDE) SC-BOARD (COMPONENT SIDE) TEST POINT PHOTO COUPLER Q16523 Q16817 TP43 Q16531 Q16818 TP44 IC16464 PC16461 IC16784 Q16532 Q16874 TP45 IC16465 PC16480 IC16786 Q16551 Q16875 TP51 IC16471 PC16601 IC16788 Q16552 Q16876 TP52 IC16490 PC16603 IC16791 Q16601 Q16882...
  • Page 142 SC-BOARD (COMPONENT SIDE) TNPA4840AF Z A 4 1 2 Z A 4 2 1 Z A 4 2 2 Z A 4 1 1 H.V.DANGER H.V.DANGER H.V.DANGER H.V.DANGER C 8 0 7 R 5 7 3 D 7 1 5 D 4 7 7 R 7 4 5 I C 5 6 4...
  • Page 143 13.2.11. SS-Board Parts Location SS-BOARD (FOIL SIDE) VOLUME TP20 TP53 TP21 TP54 IC16304 VR16001 TP24 TP56 TP25 TP068 TEST POINT TP26 TP069 TP27 TP070 TP28 TP071 TP29 TP072 TP30 TP073 TP31 TP074 TP33 TP077 TP10 TP34 TP078 TP13 TP36 TPSOS8 TP14 TP38 TPSS1...
  • Page 144 Parts Location SS-BOARD (COMPONENT SIDE) TRANSISTOR TEST POINT Q16051 Q16052 IC16131 Q16001 TP062 Q16053 IC16151 Q16002 TP063 Q16054 IC16241 Q16003 TP064 Q16055 IC16251 Q16004 TP065 Q16056 IC16304 Q16005 TP066 Q16065 IC16312 Q16006 TP067 Q16066 Q16021 TP075 PHOTO COUPLER Q16101 Q16022 TP076 Q16102 Q16023...
  • Page 145 13.2.12. SS2-Board SS2-BOARD (FOIL SIDE) SS2-BOARD (COMPONENT SIDE) TNPA4843 TNPA4843 S M M 2 4 TNPA4843 S S 2 2 Z A 1 6 0 0 4 Z A 1 6 0 0 4 O R D E R N O . SS22 S M M 2 1 P b F...

  • Page 147: Exploded View And Replacement Parts List

    14 Exploded View and Replacement Parts List 14.1. Exploded View and Mechanical Replacement Parts List 14.1.1. Exploded View 1 (Tuner box)
  • Page 148 14.1.2. Exploded View 2 (Display unit)
  • Page 149 14.1.3. Exploded View 3 (Display unit)
  • Page 150 14.1.4. Packing 1...
  • Page 151 14.1.5. Packing 2...
  • Page 152 14.1.6. Packing 3...
  • Page 153 14.1.7. Packing 4 (Pedestal stand)
  • Page 154 14.1.8. Packing 5...
  • Page 155 14.1.9. Packing 6...
  • Page 156 14.1.10. Packing 7...
  • Page 157 14.1.11. Mechanical Replacement Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks MECHANICAL REPLACEMENT PARTS (TUNER BOX) K1TYYYY00119 RF CABLE (TUNER) L6FAYYYH0118 FAN (TUNER) RMA2032 MAGNET CATCHER (TUNER) TBLG3087 FOOT RUBBER (TUNER) TBMH467 MODEL NAME PLATE (TUNER) TBXA55401 POWER BUTTON (TUNER) TBXA55502...
  • Page 158 Ref. Safety Part No. Part Name & Description Q'ty Remarks TESD101 POWER BUTTON SPRING THEC108J SCREW (P-FILTER) THEC127N THIN HEAD SCREW (CORNER METAL) THEL0239 SCREW THEL071J SCREW THTA0419 HOOK SCREW THTD023J STEP SCREW(FAN) THTD024J MACHINE SCREW TKKC5372 IR PANEL TKKC5373 SD LIGHTING PANEL TKKF5133-1 CORNER METAL (TOP/LEFT)
  • Page 159 Ref. Safety Part No. Part Name & Description Q'ty Remarks TMWC033 POWER BUTTON BRACKET TMWF010 SG-PCB BRACKET TPDF2368 SPACER SHEET TSXL519 CABLE (SU11-SD11) TSXL661 CABLE (C26-C36) TSXL737 CABLE (C10-C20) TSXL832 CABLE (DA11-GH11) TSXL835 CABLE (DA20-SC20) TSXL836 CABLE (DA31-C21/DA32-C22) TTUA2211 REAR COVER TTUA2214 REAR COVER TTUA2215...
  • Page 160 Ref. Safety Part No. Part Name & Description Q'ty Remarks PACKING REPLACEMENT PARTS (TUNER BOX) K2CT3YY00019 AC CORD (TUNER) 1 M/N K2CZ3YY00008 AC CORD (TUNER) K2CZ3YY00009 AC CORD (TUNER) TPCC68701 CARTON BOX (TUNER) TPDA1996 CUSHION LEFT/RIGHT (TUNER) TPEH454 BAG FOR TUNER PACKING REPLACEMENT PARTS (DISPLAY UNIT) TPCC62201A CARTON BOX (SPEAKER)
  • Page 161 Ref. Safety Part No. Part Name & Description Q'ty Remarks TXJ/SPDKUU-1 SPEAKER LEAD XSS26+5FJK SCREW (CLAMPER) PACKING REPLACEMENT PARTS (PEDESTAL STAND) TBLA0460 STAND BASE ASSY TBLA0464 STAND FRAME ASSY TBLX0107 PEDESTAL STAND THEL062N SCREW STAND-TV TPDA2076 BOTTOM POLYFOAM TPDA2078 HOLDER POLYFOAM TPDA2080 FRAME POLYFOAM TPDF2313...
  • Page 162 14.2. Electrical Replacement Parts List 14.2.1. Replacement Parts List Notes...
  • Page 163 14.2.2. Electrical Replacement Parts List Safety Ref. No. Part No. Part Name & Pcs Remarks Description Safety Ref. No. Part No. Part Name & Pcs Remarks C2105 F1G1C104A116 C 0.10UF, K, 16V Description C2106 F1G1C104A116 C 0.10UF, K, 16V C2107 F1J1A106A043 C 0.010UF, K, K1KY30A00017 30P CONNECTOR K1KA06A00508 6P CONNECTOR...
  • Page 164 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C2613 F1H1C105A145 C 0.01UF, K, 16V C2701 F1G1C104A116 C 0.10UF, K, 16V C2614 F1G1A473A053 C 0.47UF, 10V C2702 F1G1C104A116 C 0.10UF, K, 16V C2615 F1G1H472A571 C 4700PF, K, 25V...
  • Page 165 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C2962 F1H0J1050012 C 1UF, K, 16V C3146 F1J1A106A043 C 0.010UF, K, C3002 F1G1H561A730 C 56UF, 50V C3147 F1J1A106A043 C 0.010UF, K, C3003 F1G1H561A730 C 56UF, 50V C3007...
  • Page 166 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C4006 F1G1C104A116 C 0.10UF, K, 16V C4626 F1G1C104A116 C 0.10UF, K, 16V C4008 F1G1C104A116 C 0.10UF, K, 16V C4628 F1G1C104A116 C 0.10UF, K, 16V C4010...
  • Page 167 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C5046 F1J1A106A043 C 0.010UF, K, C5415 F1G1C104A116 C 0.10UF, K, 16V C5419 F1H1A334A084 C 0.33UF, K, 50V C5047 F1H0J1050012 C 1UF, K, 16V C5423 F1G1H102A730 C 1000UF, 50V...
  • Page 168 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C5639 F1G1C104A116 C 0.10UF, K, 16V C7902 F1J0J106A020 C 0.010UF, K, C5640 F1G1C104A116 C 0.10UF, K, 16V C7903 F1G1H330A731 C 33UF, 50V C5641 F1G1C104A116 C 0.10UF, K, 16V...
  • Page 169 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C8058 F1J1A106A043 C 0.010UF, K, C9028 F1G1C104A116 C 0.10UF, K, 16V C9029 F1G1C104A116 C 0.10UF, K, 16V C8059 F1G1C104A116 C 0.010UF, K, C9030 F1G1C104A116 C 0.10UF, K, 16V...
  • Page 170 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C9102 F1G1C104A116 C 0.10UF, K, 16V C9429 F1G1C104A116 C 0.10UF, K, 16V C9104 F1G1C104A116 C 0.10UF, K, 16V C9430 F1J1A106A043 C 0.010UF, K, C9105...
  • Page 171 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C16329 F2A2C131A197 E 130UF, 160V C16665 F1H1H820A971 C 82UF, 50V C16330 F0C2E115A260 E 0.011UF, 250V C16666 F1H1H820A971 C 82UF, 50V C16331 F0C2E115A260 E 0.011UF, 250V C16668...
  • Page 172 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C17231 F1L2E154A028 E 1500UF, 25V C22192 F1J1A106A043 C 0.010UF, K, C17232 F1L2E154A028 E 1500UF, 25V C22216 F1G1C104A116 C 0.10UF, K, 16V C17233 F1L2E154A028 E 1500UF, 25V C22244...
  • Page 173 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C22437 F2G1E101A186 E 100UF, 25V C25020 F1G1C104A116 C 0.10UF, K, 16V C22438 F1K1E106A136 C 10UF, Z, 25V C25021 F1H0J1050012 C 1UF, K, 16V C22439 F1K1E106A136 C 10UF, Z, 25V...
  • Page 174 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C25202 F1G1C104A116 C 0.10UF, K, 16V C25688 F1H1A225A051 C 22UF, 50V C25301 F1H1A1050032 C 10UF, 50V C25709 F1G1C104A116 C 0.10UF, K, 16V C25302 F1G1C104A116 C 0.10UF, K, 16V C25731...
  • Page 175 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C28072 F1G1C104A116 C 0.10UF, K, 16V C29077 F1K1E106A136 C 10UF, Z, 25V C28073 F1G1C104A116 C 0.10UF, K, 16V C29078 F1K1E106A136 C 10UF, Z, 25V C28074...
  • Page 176 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C29468 F1G1E103A123 C 0.010UF, K, C29922 F1G1C104A116 C 0.10UF, K, 16V C29923 F1G1C104A116 C 0.10UF, K, 16V C29469 F1G1C104A116 C 0.10UF, K, 16V C29924 F1G1C104A116 C 0.10UF, K, 16V...
  • Page 177 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D1507 MA3X704A0L ZENER DIODE D4577 B0HCMM000014 DIODE D2512 MAZ80560ML ZENER DIODE D4583 B0HCMM000014 DIODE D2520 B3AGB0000057 LED D4587 EZAEG2A50AX DIODE D2524...
  • Page 178 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D5919 B0BC4R700007 ZENER DIODE D16477 MA2J11100L DIODE D5922 B0JCME000037 DIODE D16478 B0HCKS000002 DIODE D5923 B0BC4R700007 ZENER DIODE D16480 MA2J11100L DIODE D5924...
  • Page 179 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D16792 MA2J11100L DIODE FL20734 J0HABH000013 LC FILTER D16811 MA2J11100L DIODE FL24800 J0JAD0000028 CHIP INDUCTOR D16820 MA3X152E0L ZENER DIODE FL24801 J0JAD0000028 CHIP INDUCTOR D16821...
  • Page 180 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description IC5901 C0BBBA000024 IC IC25003 C0JBAB000703 IC IC5902 C0DBAYY00183 IC IC25100 MN84527 IC5903 C0BBBA000024 IC IC25110 C0JBCZ000519 IC IC7701 C0DBEHG00006 IC IC25300 C0CBCBD00062 IC...
  • Page 181 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description L2618 J0JHC0000045 CHIP INDUCTOR L5304 G1C100MA0203 INDUCTION COIL L2800 G1C330MA0234 INDUCTION COIL L5305 J0JHC0000045 CHIP INDUCTOR L2901 J0JCC0000278 CHIP INDUCTOR L5421 G1C100MA0072 INDUCTION COIL L2902...
  • Page 182 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description L16405 G0C1R5KA0208 PEAKING COIL L29802 G1C6R8Z00010 INDUCTION COIL L16406 G0C1R5KA0208 PEAKING COIL L29900 J0JHC0000117 CHIP INDUCTOR L16411 G0C1R5KA0208 PEAKING COIL L29901 J0JHC0000117 CHIP INDUCTOR L16412...
  • Page 183 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description Q0900 B1CBHD000002 FET Q16024 B1JBEN000001 TRANSISTOR Q0901 B1CBHD000002 FET Q16025 B1JBEN000001 TRANSISTOR Q0903 2SD0601ASL TRANSISTOR Q16041 B1JBDN000002 TRANSISTOR Q0904 2SD0601ASL TRANSISTOR...
  • Page 184 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description Q16675 B1ADCN000007 TRANSISTOR R0915 ERJ2GEJ472 M 4.7KOHM, J,0.063W Q16676 B1ABCF000231 TRANSISTOR R0916 ERJ2GEJ472 M 4.7KOHM, Q16677 2SD0601AQL TRANSISTOR J,0.063W Q16678 B1ABCF000231 TRANSISTOR...
  • Page 185 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R0971 ERJ2GEJ103 M 10KOHM, R1236 ERJ2GEJ473 M 47KOHM, J,0.063W J,0.063W R0972 ERJ2GEJ103 M 10KOHM, R1237 ERJ2GEJ102X M 1K OHM J 1/4W J,0.063W R1243 ERJ2GEJ473...
  • Page 186 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R2003 ERJ2GEJ105 M 1MOHM, R2634 ERJ2GEJ473 M 47KOHM, J,0.063W J,0.063W R2006 ERJ2GEJ471 M 470 OHM, R2635 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R2007...
  • Page 187 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R2728 ERJ2GEJ470 M 47 OHM, R3021 ERJ2GEJ222 M 2.2KOHM, J,0.063W J,0.063W R2729 ERJ2GEJ470 M 47 OHM, R3024 ERJ2GEJ104 M 100KOHM, J,0.063W J,0.063W...
  • Page 188 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R3140 ERJ2GEJ221 M 220 OHM, R3806 ERJ2GEJ473 M 47KOHM, J,0.063W J,0.063W R3146 ERJ2GEJ331 M 330 OHM, R3807 ERJ2GEJ100 M 10 OHM, J,0.063W J,0.063W...
  • Page 189 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R3975 ERJ2GEJ104 M 100KOHM, R4524 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R3982 D0YAR0000007 M 0 OHM 1/4W R4525 ERJ2GEJ103 M 10KOHM, J,0.063W R3983...
  • Page 190 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R4666 ERJ2GEJ473 M 47KOHM, R5071 ERJ2GEJ470 M 47 OHM, J,0.063W J,0.063W R4674 ERJ2GEJ103 M 10KOHM, R5074 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R4677...
  • Page 191 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R5208 ERJ2GEJ105 M 1MOHM, R5452 ERJ6GEYJ104V M 100KOHM,J,1/ J,0.063W R5209 D0YAR0000007 M 0 OHM 1/4W R5453 ERJ6GEYJ472V M 4.7K OHM J 1/ R5211 ERJ2GEJ103 M 10KOHM,...
  • Page 192 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R5604 D1BB3901A055 M 3.9KOHM, 1/10W R5943 D0GA4R7JA021 M 4.7OHM, J,0.063W R5605 D1BB2201A055 M 2.2KOHM, 1/10W R5945 ERJ6GEY0R00V M 0 OHM J 1/10W R5610 ERJ2GEJ5R6X M 5.6 OHM,...
  • Page 193 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8030 ERJ2GEJ101 M 100 OHM, R8102 ERJ2GEJ105 M 1MOHM, J,0.063W J,0.063W R8031 ERJ2RKF1001 M 1KOHM, 0.063W R8103 D0YAR0000007 M 0 OHM 1/4W R8032 ERJ2RKF1001 M 1KOHM, 0.063W...
  • Page 194 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8615 ERJ2GEJ680 M 68 OHM, R8699 ERJ2GEJ680 M 68 OHM, J,0.063W J,0.063W R8616 ERJ2GEJ680 M 68 OHM, R8703 EXB28V680JX RESISTOR ARRAY J,0.063W...
  • Page 195 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9002 ERJ8GEY0R00 M 0 OHM, 1/8W R9088 ERJ2GEJ470 M 47 OHM, J,0.063W R9029 ERJ2GEJ220 M 22 OHM, J,0.063W R9089 EXB28V470JX RESISTOR ARRAY...
  • Page 196 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9402 ERJ2GEJ101 M 100 OHM, R9445 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R9403 ERJ2GEJ101 M 100 OHM, R9446 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W...
  • Page 197 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16152 D0GD101JA036 M 100 R16334 ERJ6GEYJ472V M 4.7K OHM J 1/ OHM,J,0.25W R16154 D0GD750JA059 M 75 OHM,J,0.25W R16335 ERJ6GEYJ102V M 1K OHM J 1/10W R16155 D0GF1R0JA047 M 1.0 OHM,J,...
  • Page 198 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16498 D0GD103JA036 M 10KOHM,J,0.25W R16605 ERJ6GEYG182 M 1.8KOHM,J,1/ R16501 D0GD101JA036 M 100 OHM,J,0.25W R16606 D0GD103JA036 M 10KOHM,J,0.25W R16502 D0GD101JA036 M 100 R16607 D1BD6651A044 M6.65KOHM, 1/10W...
  • Page 199 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16690 ERJ6GEYJ472V M 4.7K OHM J 1/ R16798 ERJ6GEYJ222V M 2.2K OHM J 1/ R16691 ERJ8GEYJ563 M 56KOHM, J,1/8W R16799 ERJ6GEYJ102V M 1K OHM J 1/10W R16692...
  • Page 200 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R17115 ERJ3GEYJ101 M 100 OHM,J,1/ R17235 ERJT14J6R8U C6.8 OHM, J,1/4W R17236 ERJT14J6R8U C6.8 OHM, J,1/4W R17116 ERJ3GEYJ101 M 100 OHM,J,1/ R17237 ERJT14J6R8U C6.8 OHM, J,1/4W...
  • Page 201 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R20906 ERJ2GEJ680 M 68 OHM, R21102 ERJ2GEJ101 M 100 OHM, J,0.063W J,0.063W R20907 EXB28V680JX RESISTOR ARRAY R21103 ERJ2RKD330 M 33 OHM, J, 2W R20908 ERJ2GEJ103...
  • Page 202 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R22019 D1BB2002A055 M 20KOHM, 1/10W R24000 ERJ2GEJ103 M 10KOHM, J,0.063W R22020 D1BB2001A055 M 2KOHM, 1/10W R24001 D0YAR0000007 M 0 OHM 1/4W R22056 ERJ2GEJ220 M 22 OHM,...
  • Page 203 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R24653 ERJ2GEJ473 M 47KOHM, R25062 ERJ2GEJ470 M 47 OHM, J,0.063W J,0.063W R24654 ERJ2GEJ473 M 47KOHM, R25063 ERJ2GEJ470 M 47 OHM, J,0.063W J,0.063W R24657...
  • Page 204 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R25117 ERJ2GEJ221 M 220 OHM, R25213 ERJ2GEJ222 M 2.2KOHM, J,0.063W J,0.063W R25119 ERJ6GEYJ102V M 1K OHM J 1/10W R25223 ERJ2GEJ101 M 100 OHM,...
  • Page 205 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R25650 ERJ2GEJ683 M 68KOHM, R28088 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R25651 ERJ2GEJ103 M 10KOHM, R28090 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R25652...
  • Page 206 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R28580 ERJ2GEJ680 M 68 OHM, R28666 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R28581 ERJ2GEJ103 M 10KOHM, R28667 ERJ2GEJ680 M 68 OHM, J,0.063W J,0.063W R28582...
  • Page 207 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R29091 D1BB2702A055 M 27KOHM, 1/10W R29206 ERJ2GED563X M 56KOHM ,J,0.063W R29092 D1BB1202A055 M 12KOHM, 1/10W R29207 ERJ2GEJ243 M 24KOHM, R29095 ERJ2GEJ103 M 10KOHM,...
  • Page 208 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R29408 ERJ2GEJ470 M 47 OHM, R29966 ERJ2GEJ391 M 390 OHM, J,0.063W J,0.063W R29409 ERJ2GEJ470 M 47 OHM, R29967 ERJ2GEJ470 M 47 OHM, J,0.063W...
  • Page 209 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description VR16601 EVMEASA00B53 CONTROL 5KOHMB C228 ACCST220131 220V 130 0.3W C229 ACCST220131 220V 130 C230 ECQE2473SKF C 0.047U 250V X1100 H0J100500035 CRYSTAL C301...
  • Page 210 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C504 ACKZE1H100 50V 10 C709 ECJ1VB1H103K C 0.001UF, K, C505 ACKZE1H220SP 50V 22 C710 ECJ1VB1H103K C 0.001UF, K, C506 ECJ1VB1H103K C 0.001UF, K, C711...
  • Page 211 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D605 VDS3V60L1 DIODE AKS02B-PASK2 CONNECTOR D620 VDCMF04E12L DIODE AKS03B-PASK2 CONNECTOR D621 VDCMF04E12L DIODE AKS04B-PASK2 CONNECTOR D622 VDCMF04E12L DIODE AKS2P3-VH32 CONNECTOR D623...
  • Page 212 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description Q809 2SD2185R TRANSISTOR R276 ERJ6GEYJ472V M 4.7K OHM J 1/ Q810 2SB1440RTX TRANSISTOR R277 ERJ6GEYJ472V M 4.7K OHM J 1/ Q811 2SA1235AX TRANSISTOR...
  • Page 213 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R364 ERG12SJ332J M 3.3KOHM, J,1/ R456 ERJ3EKF1001 M 1KOHM, 1/16W R458 ERJ3EKF1332 M13.3KOHM, 1/16W R365 ARSG734K4R7U 0.25W 4.7 R459 ERJ3GEYJ333 M 33KOHM,J,1/16W...
  • Page 214 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R610 ERJ3EKF5901 62.5mW 5.9k R718 ERJ3GEYJ392 M 3.9KOHM,J,1/ R611 ERJ6GEYJ393V M 39KOHM,J,1/10W R719 ERJ3GEYJ224 M 220KOHM,J,1/ R612 D0GB473JA057 M 47KOHM,J,1/16W R614 ARMPC5WR15JD 5W 0.15 R720...
  • Page 215 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R819 ERJ6ENF3403 M 340KOHM, 1/10W ZD603 MA4120NM ZENER DIODE R822 ERJ6ENF5902 M 59KOHM, 1/10W ZD701 MA4036L ZENER DIODE R823 ERJ3EKF3161 M3.16KOHM, 1/16W...

This manual is also suitable for:

Th-p54z1mTh-p54z1nTh-p54z1tTh-p54z1dmTh-p54z1mmTh-p54z1sm ... Show all

Table of Contents
