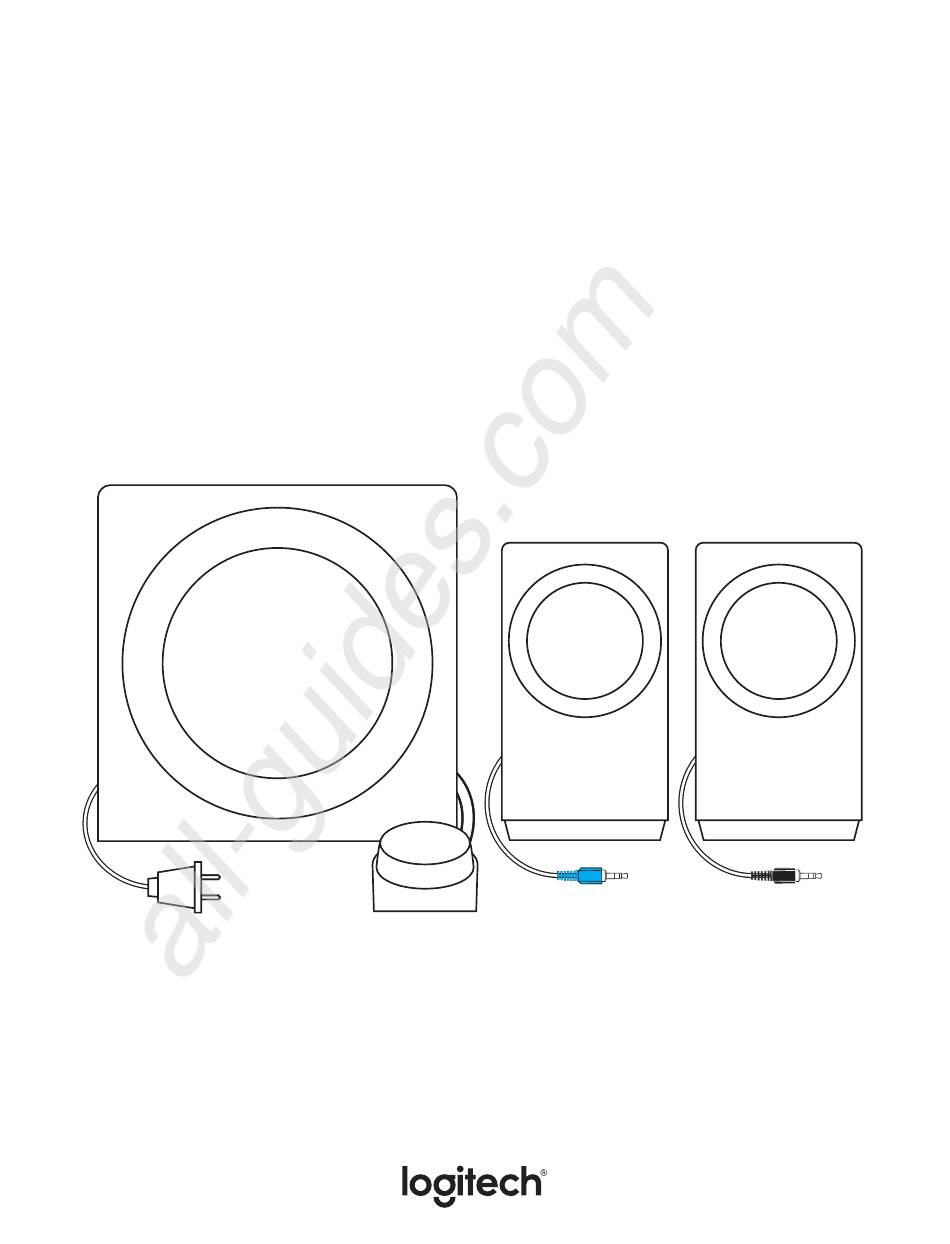

All manuals and user guides at all-guides.com KNOW YOUR PRODUCT Bass control Subwoofer Left satellite Right satellite Power plug RCA cable to subwoofer Wired control pod 3.5 mm audio cable Volume control knob Bluetooth pairing button Headphone jack Power on/off button English...
All manuals and user guides at all-guides.com CONNECT THE SPEAKERS 1 Plug the blue RCA connector on the left satellite into the blue subwoofer jack 2 Plug the black RCA connector on the right satellite into the black subwoofer jack 3 Plug the power plug into an electrical outlet English...
Page 5
3 Press and hold the Bluetooth button to activate pairing mode The LED on the control pod will blink quickly 4 Select and connect to “Logitech Z337” on your Bluetooth device list 5 To pair with your second device via Bluetooth, repeat step 3 and step 4 Make sure to turn on Bluetooth on your device...
Page 6
All manuals and user guides at all-guides.com CONNECT TO AUDIO SOURCE (CONT’D) 1A For RCA connection: Connect one end of the RCA cable to the corresponding RCA jack on the back of the subwoofer Then connect the other end of the cable to the RCA outlet on your device (TV and gaming console, etc ) Note: the RCA cable is not included in the box and must be purchased separately 1B For 3 5 mm connection: Connect one end of the provided 3 5 mm cable to the auxiliary input on the back of the subwoofer...
Page 7
2 You can pair up to eight Bluetooth source devices with your speakers and connect to 2 of them at once 3 To switch between audio sources just pause audio on one connected device and play audio from the other connected device Z337 Logitech Z337...
All manuals and user guides at all-guides.com ADJUST THE VOLUME 1 Adjust the volume of Z337 with the knob on the control pod Turn the knob clockwise (to the right) to increase volume Turn the knob counter-clockwise (to the left) to decrease volume...
Page 9
All manuals and user guides at all-guides.com 了解您的产品 低音控制 低音炮 左卫星音箱 右卫星音箱 电源插头 连接低音炮的 RCA 线缆 有线控制器 3 5 毫米音频连接线 音量控制旋钮 蓝牙 配对按钮 耳机插孔 电源打开/关闭按钮 简体中文...
Page 10
All manuals and user guides at all-guides.com 连接音箱 1. 将左侧卫星音箱上的蓝色 VGA 插头插入蓝色低音炮端口。 2. 将右侧卫星音箱上的黑色 VGA 插头插入黑色低音炮端口。 3. 将电源线插入电源插座。 简体中文...
Page 11
All manuals and user guides at all-guides.com 连接音源 使用 蓝牙 : ™ 1. 在设备上开启 蓝牙 。 2. 打开音箱。 3. 按住 蓝牙 按钮激活配对模式。 控制器的 LED 指示灯将快速闪烁。 4. 在设备的 蓝牙 设备列表中选择“罗技 Z337”。 5. 要通过 蓝牙 与第二台设备配对, 请重复步骤 3 和步骤 4。 请确保已在设备上开启 蓝牙 。 Z337 Logitech 简体中文...
Page 20
All manuals and user guides at all-guides.com 調整音量 1 使用線控裝置上的控制鈕調整 Z337 的音量 。 順時針 (向右) 轉動轉鈕可增加音量 。 逆時針 (向左) 轉動轉鈕可減少音量 。 調整低音 2 使用重低音音箱背面的低音控制旋鈕可調整低音強度 。 向右轉動控制鈕可加強低音 , 向左轉動可減少低音 。 BASS 低音 www.logitech.com/support/Z337 繁體中文...
Page 21
All manuals and user guides at all-guides.com 제품 설명 베이스 컨트롤 서브우퍼 왼쪽 위성 스피커 오른쪽 위성 스피커 전원 플러그 RCA 케이블로 서브우퍼 연결 유선 컨트롤 포드 3.5mm 오디오 케이블 볼륨 컨트롤 노브 Bluetooth 페어링 버튼 헤드폰 잭 전원 켜기/끄기 버튼 한국어...
Page 22
All manuals and user guides at all-guides.com 스피커 연결 1. 파란색 서브우퍼 잭에 좌측 스피커의 파란색 RCA 커넥터를 연결합니다. 2. 검은색 서브우퍼 잭에 우측 스피커의 검은색 RCA 커넥터를 연결합니다. 3. 전원 플러그를 전기 콘센트에 연결합니다. 한국어...
Page 23
2. 스피커의 전원을 켭니다. 3. 페어링 모드를 활성화하려면 Bluetooth 버튼을 길게 누르십시오. 컨트롤 포드의 LED가 빠르게 깜박입니다. 4. Bluetooth 장치 목록에서 "로지텍 Z337"을 선택하고 연결하십시오. 5. Bluetooth 를 통해 두 번째 기기와 페어링하려면 3단계와 4단계를 반복하십시오 기기의 Bluetooth 를 켰는지 확인하십시오...
Page 24
All manuals and user guides at all-guides.com 오디오 소스 연결(계속) 1A. RCA 연결의 경우: RCA 케이블의 한쪽 끝을 서브우퍼의 뒤쪽에 있는 해당 RCA 잭에 연결하십시오. 그다음 케이블의 다른 쪽 끝을 장치의 RCA 콘센트에 연결하십시오(TV, 게임 콘솔 등). 참고: RCA 케이블은 박스에 포함되지 않으며 따로 구매하셔야 합니다. 1B.
Page 25
1. 서브우퍼 뒷면의 RCA 커넥터와 서브우퍼의 3.5mm 케이블 및 Bluetooth로 최대 3개의 장치를 동시에 연결하십시오. 2. 최대 8개의 Bluetooth 소스 장치를 스피커와 페어링하며 그 중 2개를 동시에 연결할 수 있습니다. 3. 오디오 소스 사이를 전환하려면 연결된 장치 중 하나의 오디오를 일시 중지하고 연결된 다른 장치에서 오디오를 재생하십시오. Z337 Logitech Z337 Logitech 한국어...
Page 26
All manuals and user guides at all-guides.com 볼륨 조절 1. 컨트롤 포드의 노브를 사용하여 Z337의 볼륨을 조절하십시오. 볼륨을 높이려면 노브를 시계 방향(오른쪽)으로 돌리십시오. 볼륨을 줄이려면 노브를 시계 반대 방향(왼쪽)으로 돌리십시오. 베이스 조절 2. 서브우퍼 뒷면에 있는 베이스 조절 노브를 사용하여 베이스를 조절합니다.
