DST8000 Triple/Pro
Important: a. It is essential to read a few times all instructions before beginning.
b. If something is not clear or if you are uncertain how to proceed,
stop and contact support at:
C. pictures can vary, depending on your model
1. Each package has a drawing attached to it. Remove the pat from the package
only when needed for assembly

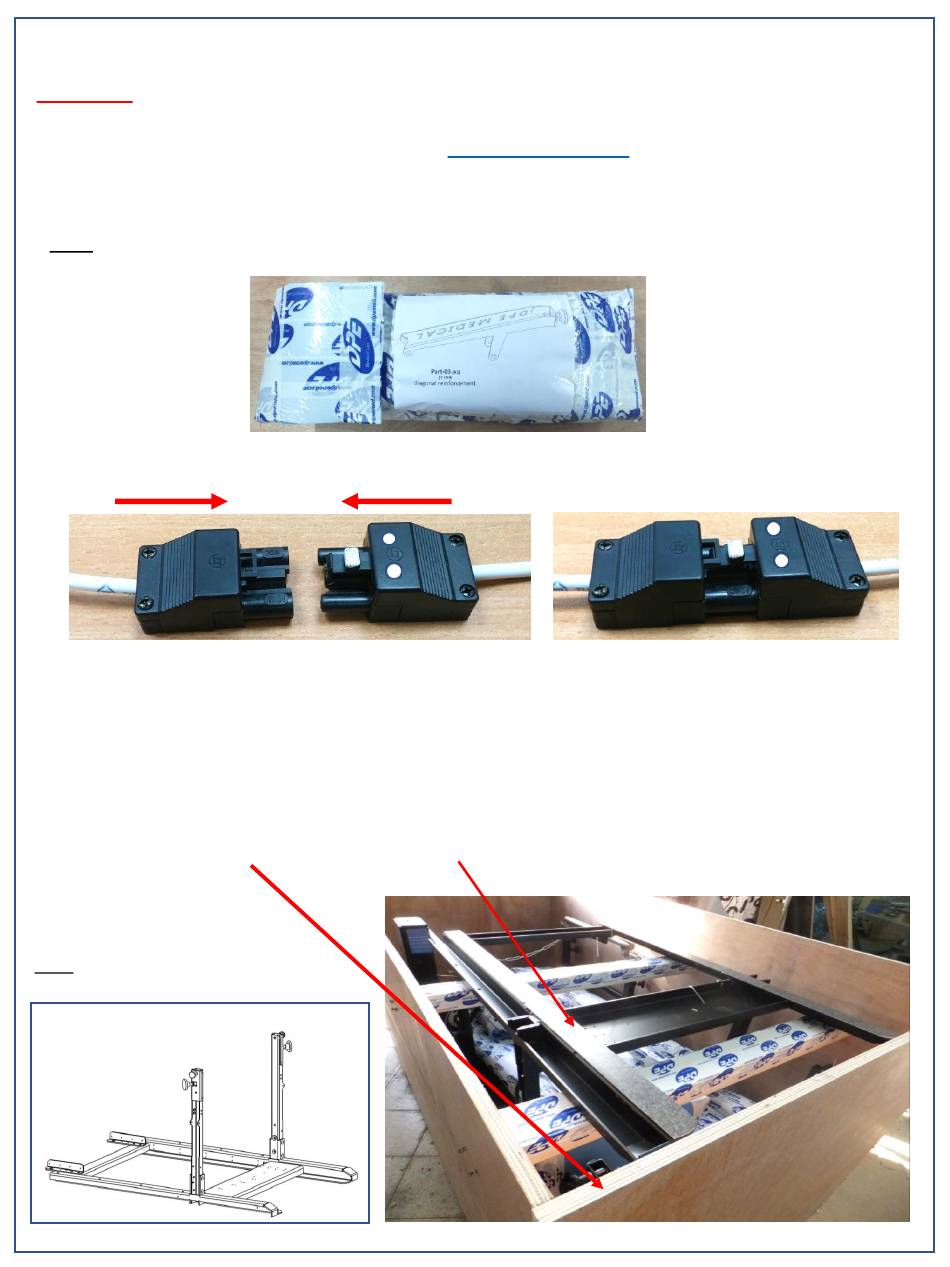

2. During assembly you will connect two low current electrical sockets/outlets, like this:
(Applicable to computerized model
A
3. Each part has its bolts and nuts for assembly in its package. You will find some extra
nuts and bolts packed with a note: "Spare".
4. Start by removing the top of the crate. It will be used as a ramp to roll off the main
part from the crate's floor.
5. Remove this wall first and take out part # 11. Put it aside. This part weight 33 kg.
(70 lbs.)
Note:
Two people needed to take out this parts
part # 11
-
Unpacking and Assembly Instructions
info@dpemed.com
only)
-1-
