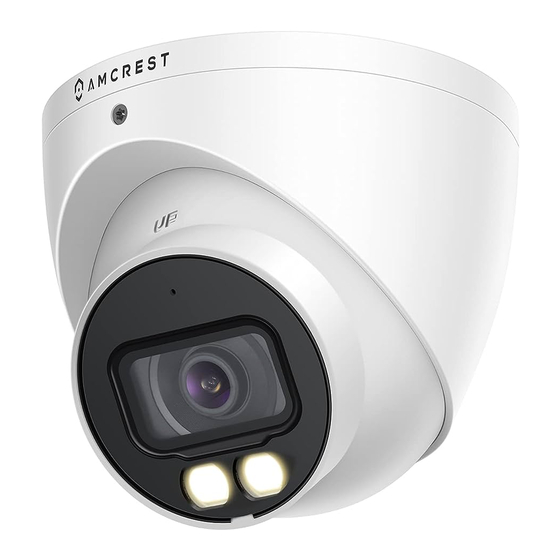

- Page 1 UltraHD 5MP Full Color Analog Camera A5TN28-W Quick Start Guide Version 1.0.0.
- Page 2 Contents Welcome ..................................3 Important Safeguards and Warnings ..........................3 Product Introduction ..............................4 Features ..................................4 Installation ..................................4 Connection..................................5 Technical Specifications ..............................5 FCC Statement ................................6 IC Warning Statement ..............................7 Appendix A: Toxic or Hazardous Materials or Elements ....................7...
- Page 3 Be sure to use only the accessories recommended by the manufacturer. Before installation, please open the package and check to make sure that all the components are present. Contact the retailer that you purchased from or Amcrest directly if anything is broken or missing in the package.
- Page 4 Product Introduction This series of camera is adopted with CMOS image sensors that provide high performance, high megapixel resolution that supports 5MP video. It supports monitoring signals and audio via a coaxial transmission and standard BNC connection and built in microphone. Transmission distances can range more than 700m (2296ft) @ 5MP. This series can also support CVI/TVI/AHD/Analog output as well as recognize high speed, long distance, and real time video transmissions.
- Page 5 Using a Phillips head screwdriver, secure the screws and base of the camera to the mounting surface. Place the cover over the camera and make it flush to the mounting plate and secure it to the mounting plate using the included star tool. Connection To connect your camera to your DVR, please follow the steps provided below: Step 1: Connect a BNC (coaxial) cable to the video out connection of your camera.
- Page 6 5M@20fps, 4M@30fps TVI: PAL: 5M@20fps, 4M@25fps;NTSC: 5M@20fps, 4M@30fps CVBS: PAL: 960H;NTSC: 960H 5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (704 × 576/704 × 480) Resolution BLC/HLC/DWDR DWDR White Balance Auto, Manual Gain Control Auto, Manual Noise Reduction 2D NR Smart Light...
- Page 7 television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Page 8 To contact Amcrest support, please do one of the following: Visit https://amcrest.com/contact and use the email form. Call Amcrest Support using one of the following numbers: Toll Free US: (888) 212-7538 International Callers (Outside of US): +1-713-893-8956 USA: 713-893-8956 Canada: 437-888-0177...
