Page 1

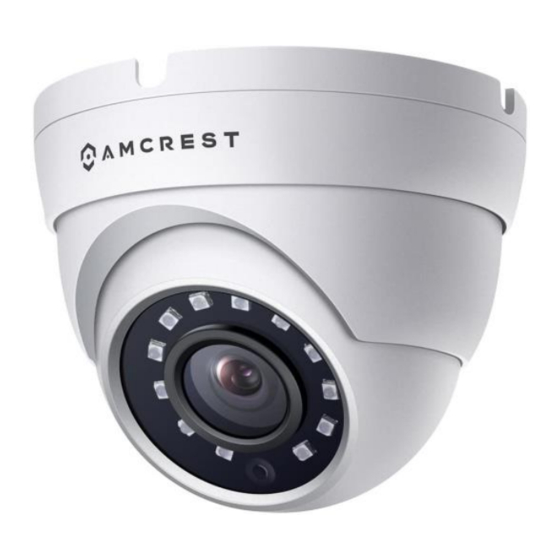

1080P Dome Outdoor HDCVI Camera AMC1080DM36-W User Manual Version 1.0.0.
Page 2
Contents Welcome ................................3 Important Safeguards and Warnings ........................3 Product Introduction .............................. 4 Features ................................. 4 Installation ................................4 Connection ................................5 Technical Specifications ............................5 FCC Statement ............................... 6 IC Warning Statement ............................7 Appendix A: Toxic or Hazardous Materials or Elements ................... 7...
Page 3
Many of the setup and installation sections have corresponding videos on YouTube. To access the setup videos, please go to http://amcrest.com/videos. For access to other support related materials and information, please visit us at http://amcrest.com/support Call Amcrest Support using one of the following numbers: Toll free: (888)212-7538 International Callers (Outside of the US): +1-713-893-9656 USA: 713-893-8956...
Page 4
Be sure to use only the accessories recommended by the manufacturer. Before installation, please open the package and check to make sure that all the components are present. Contact the retailer that you purchased from or Amcrest directly if anything is broken or missing in the package. Product Introduction This series of camera is adopted with CMOS image sensors that provide high performance, high megapixel resolution that supports 1080P video.
Page 5
Using a drill bit that is the same diameter or slightly smaller diameter than the included drywall wall anchors, drill the 4 holes and insert the wall anchors into the holes. Note: The wall anchors should be in the same bag as the screws and a designed to secure the screws onto the mounting surface.
Page 6
Lens Audio Interface 3.6mm Angle of View H: 89.9º Mount Type General Power Supply DC12V, 2.0A Power Consumption Max 2.8W Working Environment -40°C~+60°C / Less than 95%RH (no condensation) Transmission Distance Over 500m via 75-3 coaxial cable Ingress Protection IP67 Dimensions Φ93.4mm×79.7mm Weight...
Page 7
transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. IC Warning Statement This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Page 8
To contact Amcrest support, please do one of the following: Visit https://amcrest.com/contacts and use the email form. Call Amcrest Support using one of the following numbers: Toll Free US: (888) 212-7538 International Callers (Outside of US): +1-713-893-8956 USA: 713-893-8956 Canada: 437-888-0177...
