External View - M-system Mini-MW Series Quick Start Manual

CALCULATION EXAMPLES OF OVERALL ACCURACY
[Example] Input Type -10 – +10 V, Input Range 1 – 5 V,
Output Type 0 – 20 mA, Output Range 4 – 20 mA
Max. Input Range (20 V) ÷ Span (4 V) × 0.01 % = 0.05 %
Max. Output Range (20 mA) ÷ Span (16 mA) × 0.04 %
= 0.05 %
Overall accuracy = 0.05 + 0.05 = ±0.10 %

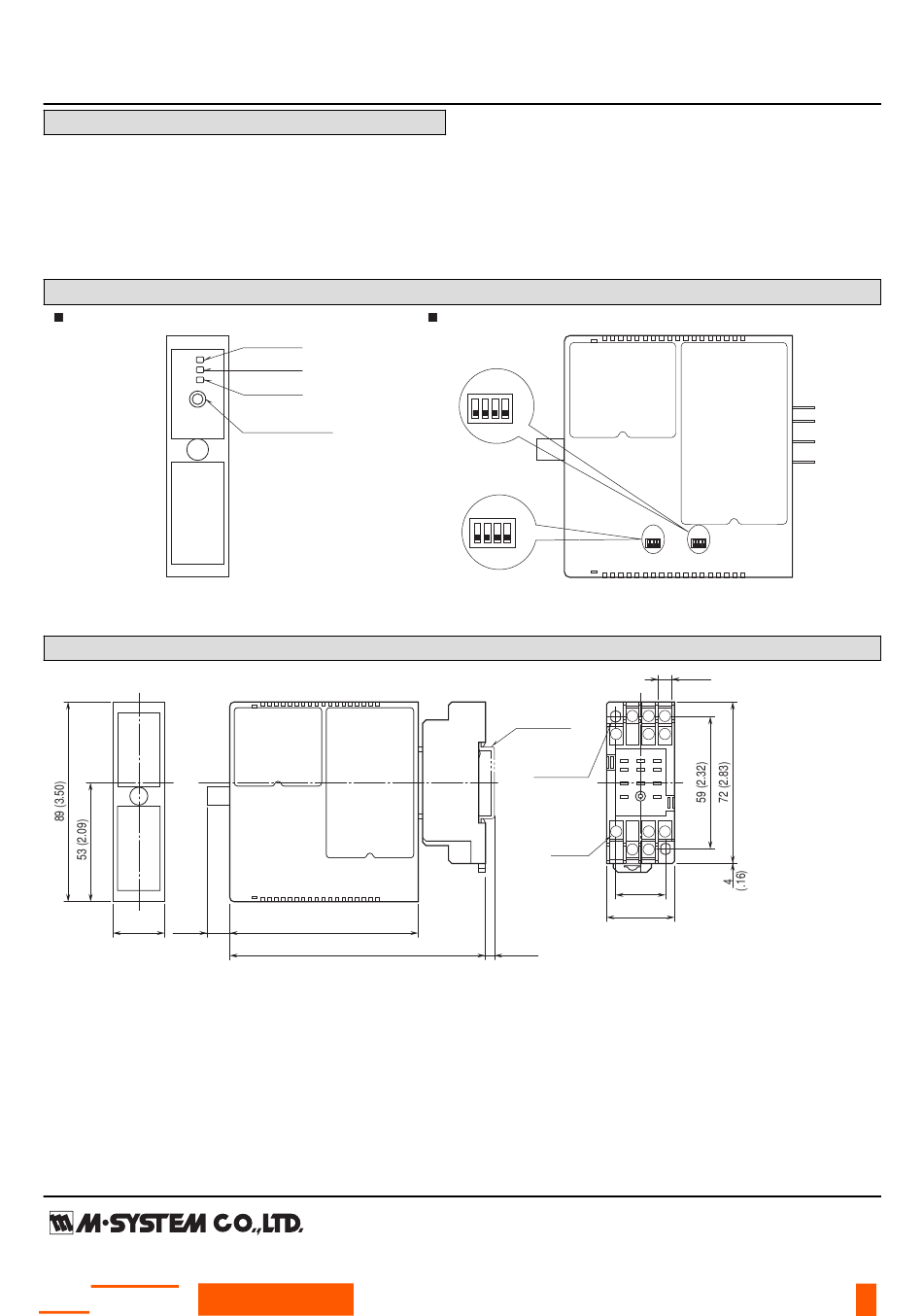

EXTERNAL VIEW

FRONT VIEW
Refer to the instruction manual for detailed procedures.
EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)
23 (.91) 10 (.39)
SEN TRONIC
AG
Produkte, Support und Service
LED1 (LD1)
LED2 (LD2)
LED3 (LD3)
Configurator Jack
*Provided only for two-output type.
84 (3.31)
114 (4.49)
When mounting, no extra space is needed between units.
Rugghölzli 2
CH - 5453 Busslingen
SIDE VIEW
Output 1
Configuration DIP SW
1 2 3 4
ON
OFF
Output 2
Configuration DIP SW
1 2 3 4
ON
OFF
DIN RAIL
35mm wide
6
2 4.2x5
–
(.17x.20)
MTG HOLE
6 (.24) deep
9
11 M3
–
SCREW
[4 (.16)]
Tel. +41 (0)56 222 38 18
Fax +41 (0)56 222 10 12
MODEL: W2XF
*
SW2 SW1
6 (.23)
3 2 1
5 4
8 7
11 10
22 (.87)
29.5 (1.16)
