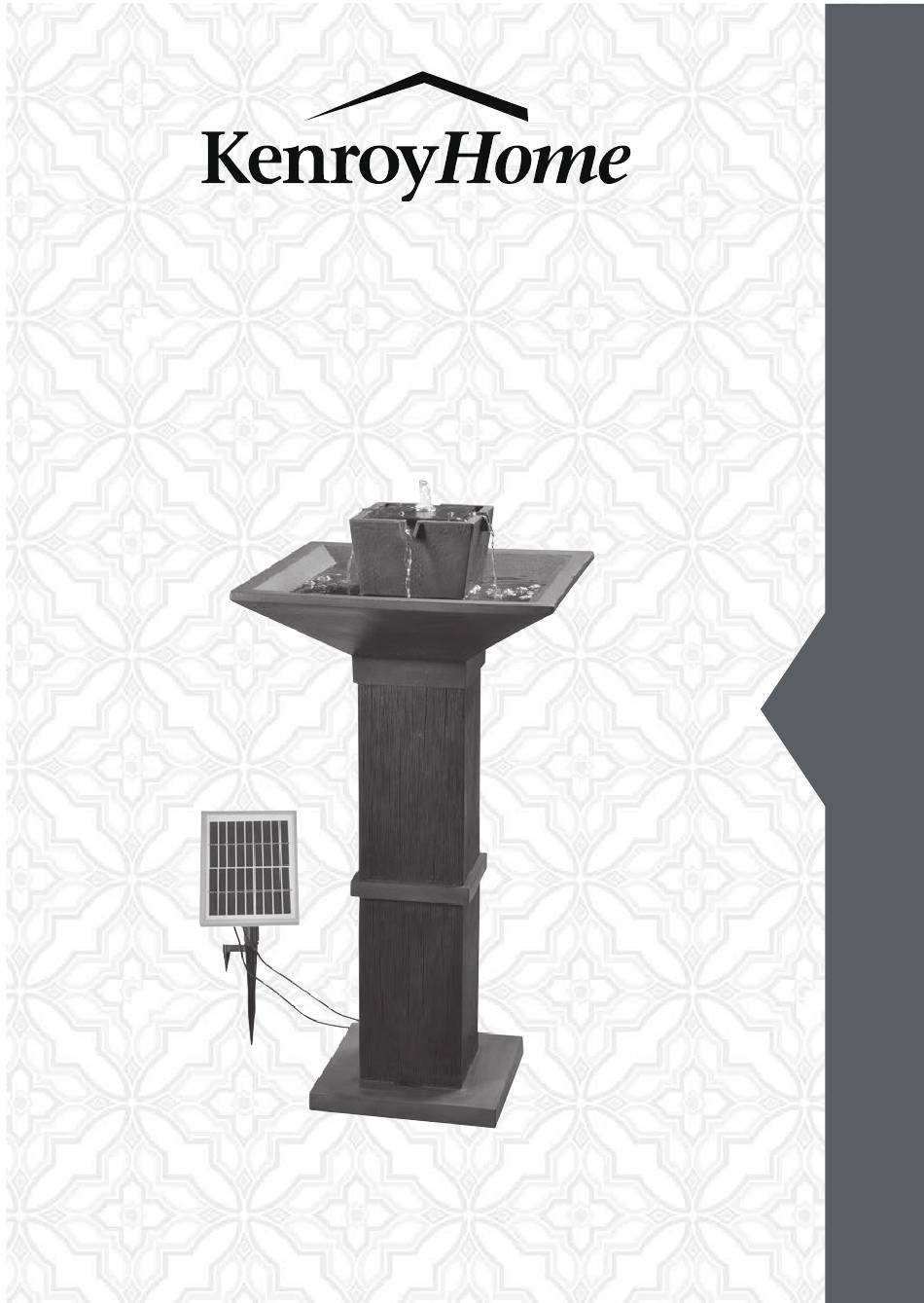

- Page 1 KYOTO OUTDOOR SOLAR FLOOR FOUNTAIN Care and Instruction Manual...
- Page 2 51052COPBRZ ASSEMBLY INSTRUCTIONS Thank you for purchasing a Kenroy Home water feature, you are now only minutes away from filling your home or outdoor living space with peaceful displ ays. Our guarantee backs all of our water features, please do...
-
Page 3: Choose A Location
51052COPBRZ ASSEMBLY INSTRUCTIONS Please reference the separate parts list and ensure that all pieces are included in the package prior to assembly. More than one person may be required to complete the assembly of this product. To protect the finish, place all parts on a soft surface when unpacking. - Page 4 51052COPBRZ ASSEMBLY INSTRUCTIONS Place upper base (B) onto lower base (A) and twist it clockwise to secure. Place reservoir (C) onto upper base (B) and twist it clockwise to secure. Feed pump power cord (E) and light cord through plastic tube. Cords should exit through notch in lower base (A).
- Page 5 51052COPBRZ ASSEMBLY INSTRUCTIONS Insert the cords into the slots in hole plug (K), and then insert the hole plug (K) into the plastic tube. Place the column assembly (D) into reservoir (C). Slot Plastic tube Join bracket (F), tube (G) and stake (H) together, then attach bracket (F) to back of the solar panel (I) as shown.
-
Page 6: Final Steps
51052COPBRZ ASSEMBLY INSTRUCTIONS FINAL STEPS Fill reservoir (C) with distilled water. Water level should stay above fill line on column assembly (D) when fountain is running. Insert pump plug (larger plug) into the hole for pump (E) on back of the solar panel (I), then insert light cord plug (smaller plug) into the hole for light on back of the solar panel... - Page 7 51052COPBRZ ASSEMBLY INSTRUCTIONS PUMP SAFETY & TROUBLESHOOTING To keep water clean • Periodically change water to prevent algae buildup. Impeller cover Pump housing Filter sponge Filter/ Front cover Rotor/Impeller If the pump fails to run: • Make sure the solar panel is receiving direct sunlight. Performance is directly related to the amount and strength of sunlight received.
- Page 8 51052COPBRZ ASSEMBLY INSTRUCTIONS WATER FEATURE WARNINGS & SOLAR PANEL TROUBLESHOOTING Splashing may occur when the fountain is first turned on, protect surrounding surfaces as needed. Do not place the water feature on or near any surface that can be damaged by water. •...
-
Page 9: Frequently Asked Questions
51052COPBRZ ASSEMBLY INSTRUCTIONS FREQUENTLY ASKED QUESTIONS What should I consider when selecting a water feature? In addition to your personal style tastes, be sure you have an area for your water feature that can be safely exposed to water, as splashing can occur. Also take into consideration what a water feature can add to your Can my water feature be left outside over winter? This water feature is rated for outdoor use;... - Page 10 51052COPBRZ ASSEMBLY INSTRUCTIONS FREQUENTLY ASKED QUESTIONS CONTINUED How much water do I need to keep in the water feature? Where possible in our water features, we have included fill lines to help you visualize the water level required for proper function. If your water feature does not include fill lines, please check the instruction manual for water capacity.
- Page 11 51052COPBRZ ASSEMBLY INSTRUCTIONS FREQUENTLY ASKED QUESTIONS CONTINUED How do I level the water feature? For the water to flow properly, it is critical the water feature is level. If your water feature will be placed in an area with uneven ground, use a level and leveling shims to help level the water feature.
- Page 12 www.kenroyhome.com...
