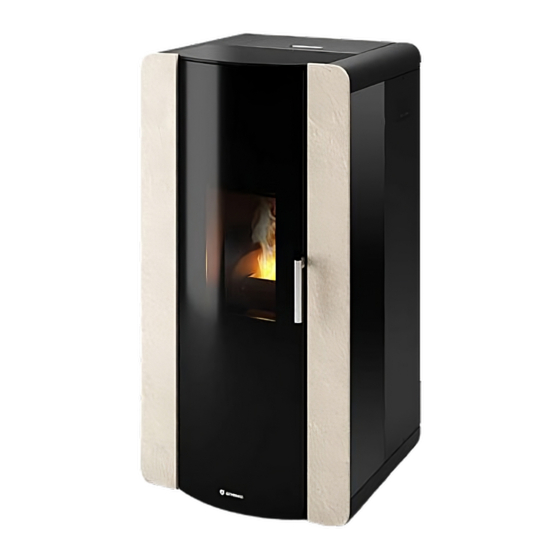

Summary of Contents for CS THERMOS Roma 15/18
- Page 1 Water stoves Instructions for models: Roma - Venexia - Murano - Thema H...
- Page 2 Dear Customer, We wish to thank you for choosing a CSTHERMOS stove and welcome you into our pellet/biomass heating world. We remind you that our products are manufactured wholly in Italy with superb quality materials and are accurately tested in compliance with the provisions of the safety regulations in force. Great innovation and sophisticated design are added to this guarantee of quality and comfort.
-
Page 3: Table Of Contents
Models of stove dealt with in this manual ......................8 Receiving the appliance ..............................9 Transport and handling ..............................10 Part descriptions ................................12 Roma 15/18/21/25, Venexia 15/18/21/25, Murano 15/18, Thema H O ..........12 Stove dimensions ..............................14 Pellet tank ................................. 17 Data plate .................................. -
Page 4: Safety Regulations
1 - SAFETY REGULATIONS Safety regulations for the user This manual is an integral part of the product: it is important to read it in all its parts before in- stalling or using the equipment. Ensure it is always available, also in case of a move/sale/trans- fer to another owner, so that it can be consulted by the new user, installer or by any authorized staff. - Page 5 Safety or equipment automatic adjustment devices must be modified only by the manufactur- er or by an authorized service centre or supplier, during the whole life of the system. If the equipment is not to be used for a long time, switch off the main power switch. If the equipment does not work or you notice functional or structural changes, disconnect it from the power mains and contact a service centre authorized by the Manufacturer or Dealer without attempting any DIY.
- Page 6 Do not wash the product with water jets. Water may penetrate into the unit and cause electric shocks. If the ignition system fails, it is absolutely forbidden to use flammable materials to light the flame. Disconnect the electrical supply before any maintenance or cleaning. To ensure the equipment is in perfect use and safety conditions, we recommend that it is main- tained and checked by a Service Centre authorized by the Manufacturer or Dealer at least once a year.
- Page 7 The company accepts no liability for any damages that may derive, either directly or indi- rectly, to people, animals or property due to the non-compliance with all the provisions listed in this manual and, in particular, concerning the warnings with regard to the instal- lation, use and maintenance of the apparatus.
-
Page 8: Models Of Stove Dealt With In This Manual
2 - MODELS DEALT WITH IN THIS MANUAL Roma Roma Venexia Venexia 15/18 21/25 15/18 21/25 Murano Thema H 15/18 16/21 cod. 6118005 ed. 06-2021... -
Page 9: Receiving The Appliance
3 - RECEIVING THE APPLIANCE When you receive the equipment, check its packaging is intact. In case of visible damage or if some pieces are missing, do not install it, but contact the Manufacturer straight away. If no anomaly is found, the product can be installed. Handle the equipment following the Manufacturer’s instructions shown on the packaging and in this manu- al. -
Page 10: Transport And Handling
4 - TRANSPORT AND HANDLING The apparatus must be lifted with a winch fitted with a hook (A) and handled with a transpallet or forklift truck of suitable capacity. The area of movement must be free from objects or people not involved in the transport operation. If the equipment is handled using a winch, it is necessary to use some spreader bars (C) between the lifting ropes, to prevent the unit from being damaged and ensure no excessive pressure is applied to the packaging or machine itself. - Page 11 Lifting with a transpallet or forklift truck If the transport is done using a transpallet, ensure it is adequate to the weight and size of the packaged equipment. Insert the forks into the points provided for handling (usually in the central position), to keep the centre of gravity of the load balanced.
-
Page 12: Part Descriptions
5 - PART DESCRIPTIONS Roma 15/18/21/25, Venexia 15/18/21/25, Murano 15/18, Thema H O 16/21 Roma Venexia 15/18/21/25 15/18/21/25 Murano Thema H 15/18 16/21 Description Smoke exhaust arrangement Burner Fuel tank lid Glass cleaning air adjuster Technical data label Anti-explosion valve... - Page 13 Roma Venexia 15/18/21/25 15/18/21/25 13 21 Murano Thema H 15/18 16/21 Description 13) Automatic air vent 19) Circulator 14) Manual air vent 20) Smoke outlet motor 15) Safety thermostat 21) Expansion tank 16) Safety thermostat 22) Anti-condensation valve 17) Electrical socket 23) Safety valve 3 bar 18) Air intake cod.
-
Page 14: Stove Dimensions
Stove dimensions Roma 15/18 Roma 21/25 1. Top fume outlet Ø 80mm 5. Safety valve 3 bar 6. Boiler loading and unloading cock 2. Back fume outlet Ø 80mm 3. External air intake Ø 60mm 7. System delivery 3/4” 4. System return 3/4”... - Page 15 Venexia 15/18 Venexia 21/25 1. Top fume outlet Ø 80mm 5. Safety valve 3 bar 6. Boiler loading and unloading cock 2. Back fume outlet Ø 80mm 3. External air intake Ø 60mm 7. System delivery 3/4” 4. System return 3/4” 8.
- Page 16 Murano 15/18 Thema H O 16/21 1050 1. Top fume outlet Ø 80mm 5. Safety valve 3 bar 6. Boiler loading and unloading cock 2. Back fume outlet Ø 80mm 3. External air intake Ø 60mm 7. System delivery 3/4” 4.
-
Page 17: Pellet Tank
Pellet tank All stove models are fitted with an internal container to load the pellets. Capacity varies according to the model. The container is always in the top part of the appliance and is protected by a lid. To load, lift the lid and let the pellets slide into the container. Find below an example with a stove model, the system for the other stoves is exactly the same. -
Page 18: Data Plate
Stove serial plate The plate with the data regarding the stove is located on its back. It supplies important technical information that is vital in case of a request for maintenance or repair of the equipment: please do not remove, damage or modify it. EN 14785: 2006 XX-XX-XXX MODELLO... -
Page 19: Stove Technical Data
6 - STOVE TECHNICAL DATA UNITS OF TECHNICAL DATA ROMA 15 ROMA 18 ROMA 21 ROMA 25 MEASUREMENT THERMAL POWER INPUT 16.5* 18.4* 20.8* 25.6* (pellets) THERMAL POWER OUTPUT 15.4* 17.0* 19.8* 24.0* (pellets) THERMAL POWER OUTPUT TO THE WATER 13.6* 15.3* 18.0*... - Page 20 UNITS OF TECHNICAL DATA MEASUREMENT VENEXIA 15 VENEXIA 18 VENEXIA 21 VENEXIA 25 THERMAL POWER INPUT 16.5* 18.4* 20.8* 25.6* (pellets) THERMAL POWER OUTPUT 15.4* 17.0* 19.8* 24.0* (pellets) THERMAL POWER OUTPUT TO THE WATER 13.6* 15.3* 18.0* 22.1* (pellets) Combustion EFFICIENCY 93.3* 92.5*...
- Page 21 MURANO 15 MURANO 18 THEMA H O 16 THEMA H O 21 16.5* 18.4* 15.8* 21.0* 15.4* 17.0* 14.9* 19.3* 13.6* 15.3* 17.3* 93.3* 92.5* 94.5* 91.6* 0.16 0.21 0.064 0.057 0.27 0.27 0.144 0.144 12.2 11.8 Wood PELLET - Wood PELLET - Wood PELLET - Wood PELLET -...
-
Page 22: Fuel
7 - FUEL There are numerous types and qualities of wooden pellets on the market, so it is important to choose one that contains no glue, resins or chemicals and may cause early clogging of the smoke discharge, the formation of corrosive gases, loss of efficiency and the emission of polluting substances into the atmosphere. -
Page 23: Installation
8 - INSTALLATION PREINSTALLATION Before installing the stove, check that everything has been prepared. Find below a quick checklist, for the complete information always refer to the pre-installation card. Check that: the surface supporting the stove is level and cannot be affected by the heat;... -
Page 24: Flue
FLUE PIPE For the stove to work well, the flue must be made by a qualified engineer that must comply with the regulations in force (UNI EN 10683). If that is not the case, the company cannot be held responsible for any malfunctions. To clarify things: chimney or flue is the vertical part of a duct that is characterized by its own draft (natural convection). - Page 25 In particular, as to flues/smoke ducts, we wish to remind you of the following: MATERIALS: They must withstand mechanical stress. They must withstand any acid condensation that may form from the combustion products (the use of STAINLESS STEEL 316 is recommended). They must be waterproof.
- Page 26 It must prevent rain, snow and foreign bodies from getting in. It must not be close to other buildings, but have a free outlet that ensures combustion gases are dispersed into the atmosphere and above all, if the outlet is on a roof, its height must exceed the reflux area. Inox Isolante Inox...
- Page 27 In pellet boilers, smoke extraction is guaranteed by a fan keeping the combustion chamber pressurized, com- bined with a state-of-the-art chimney that must allow smoke evacuation using the natural draught. For this reason we recommend you contact a specialized engineer to build the flue. The costs for any modification in programming carried out by the service centres, due to the incorrect installation of the flue, will be debited to the user.
-
Page 28: Electrical Arrangement
ELECTRICAL ARRANGEMENT All the units are fitted with an electrical supply cable: if this has to be replaced (e.g. if damaged), contact an authorized Technical Service Centre. Before connecting the unit, make sure that: the electrical system is fitted with a 6A thermo-magnetic circuit breaker the system characteristics meet the details on the data plate applied to the unit (electrical power, rated voltage, etc.) the system is fitted with an efficient ground connection, in compliance with the legal regulations in force (ground- ing is compulsory by law) - Page 29 If hot water must be produced, a water heater must be installed, holding at least 80 litres, so that the stove can work efficiently. The stove is fitted with an 8-litre expansion tank: if this is insufficient for the system, one of suitable size must be installed.
-
Page 30: Unpacking
UNPACKING We recommend you unpack the equipment only after transporting it to the place where it must be installed and only at the time of installation. This operation must be done using all the possible personal protection equipment used to protect people (gloves, safety shoes, etc.). -
Page 31: Setting Up The Stove
SETTING UP THE STOVE After unpacking the stove, position it in the room where it will be used. You can use a forklift truck or transpallet. In moving the stove, pay attention not to damage its external parts. Please pay attention to the distances men- tioned above. -
Page 32: Connecting The Flue
CONNECTING THE FLUE The stove can be connected to the previously installed flue pipe in two ways. The first one is vertically, that is having the pipe come out of the top part of the stove; the second one is horizontally, coming out from the back of it. - Page 33 HORIZONTAL CONNECTION Carry out the following operations as shown in the pictures on the side: Close the “T” fitting with the ash collection cap (1) and connect it to the smoke motor (2), not for the Thema H model. Install a 90° bend (3) to get the fume discharge on the back. Connect a straight pipe to the bend and to the flue (4).
-
Page 34: Combustion Air Inlet
COMBUSTION AIR INLET Combustion air can be taken from the room, if sufficiently ventilated, or from the outside, if not: this way optimal com- bustion is guaranteed, avoiding opening an air intake in the room. In both cases, refer to the regulations about installa- tion in force (UNI 10683 and UNI7129), to avoid health risks for those who spend time in the room where the equipment is installed. -
Page 35: Hydraulic Connections
HYDRAULIC CONNECTIONS Vent the heating system and the stove every time you fill it. Connect and take outside the stove the discharge of the safety valve. On the return circuit, a chemical-physical water treatment system must be installed, for instance a magnetic dirt separator: it is necessary to protect the stove internal components, such as the elec- tronic circulator, from impurities and ferrous particles present in the system. - Page 36 CONNECTION DIAGRAM TO A HEATING AND HOT WATER PRODUCTION SYSTEM HEATING CIRCUIT CIRCULATOR HOT WATER OUTLET WATER HEATER MIN 80L SYSTEM WATER MAINS LOADING INLET CONNECTION DIAGRAM TO A HEATING AND HOT WATER PRODUCTION SYSTEM HEATING CIRCUIT HOT WATER OUTLET CIRCULATOR WATER MAINS INLET...
-
Page 37: Electrical Connections
8.10 ELECTRICAL CONNECTIONS On the back of the stove there is a socket for the electrical connection. To get power, just connect the cable supplied to the unit as well as to a wall schuko socket. Before connecting it, make sure the thermal circuit breaker is OFF. CONNECTION OF ROOM THERMOSTAT, HOT WATER SENSOR, PUFFER PROBE (OPTIONS) It is possible to connect a room thermostat (option) that detects the temperature in the area where it is installed and that enables and disables the operation of the stove. -
Page 38: Electronic Board
8.11 ELECTRONIC BOARD ROOM COMMUNICATION HOT WATER AUGER SENSOR THERMOSTAT SENSOR CRUCIBLE CONTACT ROOM SENSOR / PROBE SENSOR STOVE SENSOR WATER FUME PRESSURE PROBE FUME SWITCH ENCODER PROBE SANIT AUX P. H2O - CRG + FUMI T. AMB SC-SA V. AMB FUMI CROG. -
Page 39: Use
9 - USE DISPLAY Button - switches the stove ON/OFF in manual mode (keep pressed for two seconds), cancels alarms and exits programming Button - changes screen and confirms the set data Button - used to increase the values to be set Button - used to decrease the values to be set MEANING OF THE LED LIGHTS... -
Page 40: Commissioning
COMMISSIONING Once the installation has been complet- ed and all the above has been checked, the system can be started for the first time. Only a CSTHERMOS authorized engineer can do this, also informing the customer on the operations to carry out to make the stove work correctly. -
Page 41: Programming
PROGRAMMING MAIN SETTINGS Press the key repeatedly to access the desired setting. Press to modify. Mon 09:00 Tc 65° Ts 55° Press to enter the sub-page or to confirm a new set value. Press to exit the menu. Season Season ESC SET Winter Stove Temp. - Page 42 AUTOMATIC SWITCH-ON PROGRAMMING Switching-off of every time-slot must not end after 23:59 on the programmed day. Activate timer Capital letter = day enabled Press to modify Lowercase letter = day disabled Press to confirm Press to move Timer01 mtwtfss Timer01 mtwtfss ON 00:00 OFF 00:00 ON 00:00 OFF 00:00...
-
Page 43: Operation Phases
OPERATION PHASES DISPLAY MESSAGE MEANING Pre-ventilation phase and check of safety devices with crucible cleaning before fuel Cleaning loading. Switching-on phase with fuel loading into the burner and simultaneous power ON Loading to resistors. Pause Flame wait pause Flame wait Waiting phase within which time ignition must take place Flame stabil. -
Page 44: Alarm Code List
ALARM CODE LIST For your safety, do not tamper with or modify any component of the equipment: the manufacturer does not guarantee its correct operation, which can be very dangerous. In case of malfunction, problems or if a safety device is triggered, please call authorized personnel. Anyway, all operations must be carried out with the burner off and cooled down and with the power disconnected. -
Page 45: Cleaning
10 - CLEANING During maintenance, use personal protection equipment all the time (i.e. gloves). For the stove to work perfectly, we recommend it undergoes thorough cleaning at least once a week when using wood pellets. If biomass is used (olive pits, shells, agripellets), cleaning must be carried out between 1 and 3 days according to the quantity of residue left in the burner. -
Page 46: Cleaning The Burner
10.2 CLEANING THE BURNER Before starting any operation on the burner, wait for it to fully cool down (about 3 hours). Clean the burner every 1 to 7 days according to the type of fuel used. Before starting work on the burner, disconnect the stove from the mains and turn the circuit breaker on the main panel to OFF. -
Page 47: Cleaning The Turbulators And Emptying The Ash Drawer
Unburnt residue inside the crucible (7), can be aspirated but can also be made to fall on the bottom with a scraper (8), where it will then go into the ash collection drawer. Once cleaning is complete, the burner lid can be refitted and closed, carrying out the same operations in reverse order. -
Page 48: Cleaning And Maintenance Of Other Parts
Check and lubricate the bushings of the fuel loading auger and of the burner. Check the magnesium anode of the water heater For any other operation not mentioned in this list, please refer only to the CS THERMOS service centre. -
Page 49: Disposal
11 - DISPOSAL ADVICE ON THE CORRECT DISPOSAL OF THE PRODUCT Disposal of waste electrical and electronic equipment (WEEE) pursuant to Decree- Law 49/2014 in implementa- tion of Directive 2012/19/EU. At the end of its useful life, the product must not be disposed of together with urban waste but must be delivered to the appropriate collection centres or to the dealers that offer this service. -
Page 50: Notes
12 - NOTES cod. 6118005 ed. 06-2021... - Page 51 Maximum care has been paid to guarantee the accuracy of this manual. The Manufacturer reserves the right to modify the equipment or the documentation at any time, without notice. Therefore there might be small differences between this manual and the product you have received: we apologize in advance for any inconvenience.
- Page 52 100% tested & certified 100% made in Italy Rivenditore autorizzato / authorized dealer CS THERMOS SRL - Società Uninominale Via Padania 35 - Z.I. 31020 San Vendemiano Treviso - Italia Reg. Imp. TV - C.F. / P.IVA 03892500269 Capitale Sociale € 100.000,00 i.v.
