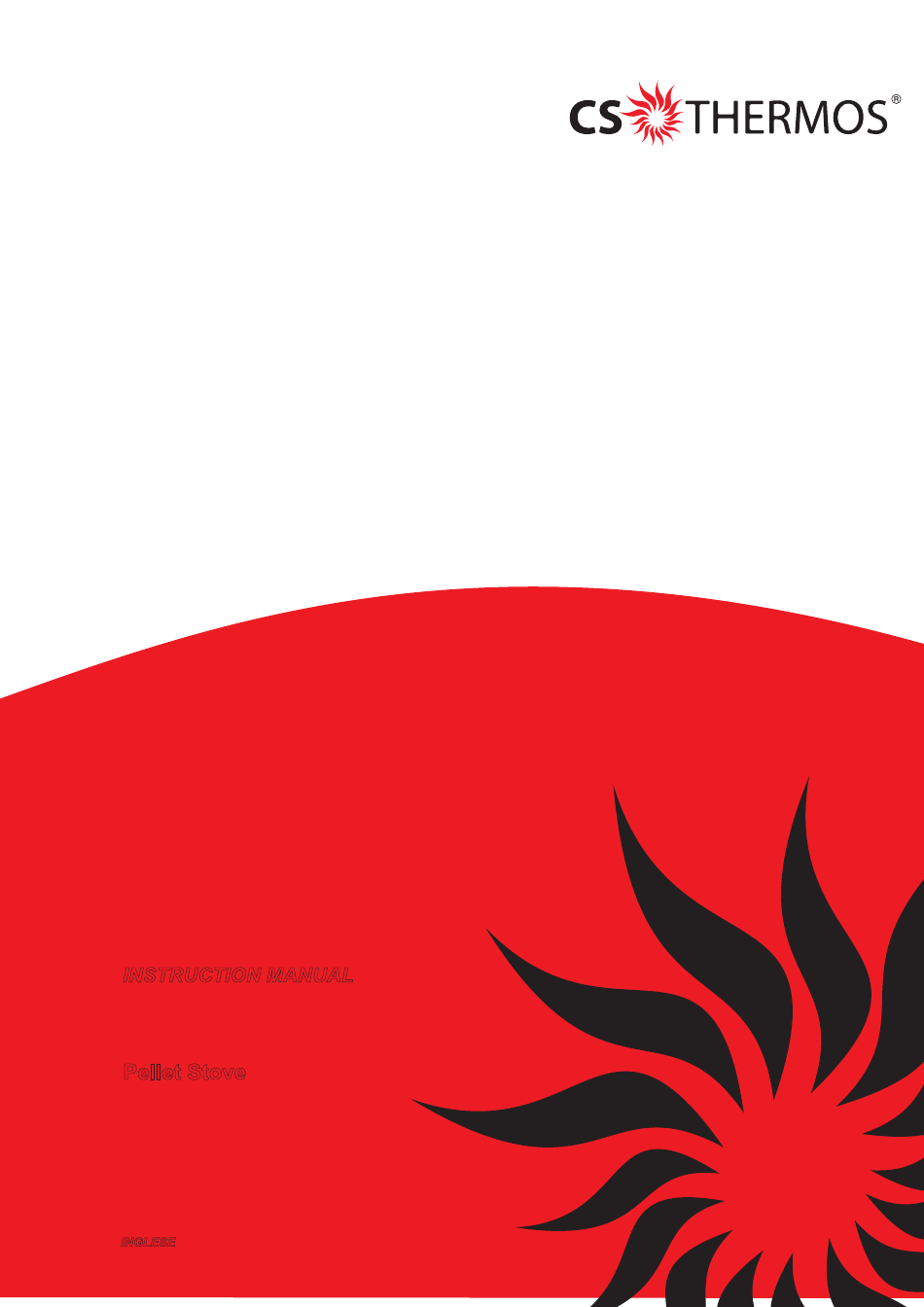

- Page 1 INSTRUCTION MANUAL Pellet Stove INGLESE...
-
Page 2: Table Of Contents
Cleaning is an important element for safety maintenance and for product functioning, and must be carried out periodically to guarantee a long life and for keeping people and the machine safe. This manual is relevant for all CS THERMOS air models. INDEX Safety warnings .......................... -
Page 3: Safety Warnings
ENGLISH 1. SAFETY WARNINGS DO NOT use different combustibles from the pellets (small pressed wooden trunks with a diameter of 6-8mm and a length of 5-20mm- see related chapter) DO NOT use any flammable liquids to light the stov e DO NO T light the stov e if the glass w indow is damaged and do not, for any reason, open the fire box door during functioning. -
Page 4: Product Description
ENGLISH 2. PRODUCT DESCRIPTION All stove models are equipped with an electrical grid for functioning and combustion control, and can modulate their power according to settings set from the display, this way allowing better adaptation to heating requirements. During initial start up phase (approx 10 min) the crucible automatically fills with combustibles, whilst the resistors heat up and ignite them. -
Page 5: Size Data
ENGLISH 4.SIZE DATA ARMONIA LADY BRAVA STILE SARA KARINA NIKO ECONOMICA... -
Page 6: Technical Data
ENGLISH 5. TECHNICAL DATA... -
Page 7: General Rules For The Realization Of The Flue
ENGLISH 6. GENERAL RULES FOR THE REALIZATION OF THE FLUE Here are illustrated a few simple yet important rules to follow for the safe construction of the flue (for further information, please read the UNI 10683 regulation) • The safe and correct functioning of the pellet stove is dependant on the connection to a single and independent flue. -
Page 8: Execution Of Smoke Discharge
ENGLISH 7. EXECUTION OF SMOKE DISCHARGE Smoke discharge must comply with regulations in vigour and therefore must happen via the roof and end over the roof level. The discharge tube must be made out of smooth steel with silicon seal and not be corrugated flexible type. -
Page 9: Oxidising Air Intake
ENGLISH Ø 100 JOINT Raccordo 80-100 Ø 80 “T” JOINT Raccordo a "T" DIREZIONE DI CLEANING PULIZIA Fig.8 DIRECTION Fig.7 END PART OF THE FLUE SYSTEM The stack must not be installed in spaces that are closed, poorly ventilated or, in general, where smoke can collect. -
Page 10: Electrical Connection
ENGLISH 9. ELECTRICAL CONNECTION All machines are equipped with power cables, for which, in case of the need for replacing, an authorized technician must be used. Before connecting to the power supply, check that: • the electric plant has been fitted with a 6A magneto thermal switch •... -
Page 11: Preliminary Checks For The First Start Up
ENGLISH 10. PRELIMINARY CHECKS FOR THE FIRST START UP OBLIGATORY GUIDE LINES FOR THE SAFETY OF PEOPLE; ANIMALS AND OBJECTS. The following information is about a number of obligatory general regulations for a correct instalment, and is intended for the installer. •... -
Page 12: Control Panel Display
ENGLISH 11. CONTROL PANEL DISPLAY DESCRIPTION OF DISPLAY BUTTONS Mer 09:00 20,0°C Set day and time Room temperature reco rded Operational Accesa 25,0°C Room temperature request ed Operational power - turns the stove on and off in manual mode (holding it for 2 seconds), eliminates alarms and exits programming - changes the screen and confirms set data - key for increasing values being set... -
Page 13: Programming
ENGLISH 13. PROGRAMMING MAIN SETTINGS Use the keys as instructed to access the desired setting Sun 09:00 20,0°C 25,0°C T. room T. room 25,0°C Day of the Hors Hours week 00:00 See specific Timer01 mtwtfss Ignition Trigger chapter ON00:00 OFF00:00 timer Function Trigger... - Page 14 ENGLISH AUTOMATIC S TART-UP PROGRAMMING Turning off for each time slot must not terminate after 23:59 of that day Activate timer Pre ss to mod ify Pre ss th e key to modi fy Press the key to co nfirm Press to m odi fy Timer02...
-
Page 15: Alarm Signalling
ENGLISH 14. ALARM CODES For your ow n safety do not tamper or modify any of the machine's components: the manufacturer does not guarantee the normal operation, that as a result may be v ery dangerous. In case of malfunctioning, difficulties, or w henever a safety dev ice is activated, it is important to contact authorised personnel. -
Page 16: Replacing The Ceramics
ENGLISH 15. REPLACING THE CERAMICS For machines in ceramics disassembly and reassembly of individual parts must be done taking great care as not to damage the parts. Use both hands to remove the ceramics (fig 16) and lift each piece upwards, vertically, ALWAYS remove the upper ceramics and work downwards, ensuring not to bend single supports (fig. - Page 17 ENGLISH ASH BOX Carry out the following at least once per week: Fig . 24 Open the door under the hearth, unscrew the nut and remove the ash box with care. Empty or clean out all the ash when the stove is cold, taking care that there are no cinders present.
- Page 18 ENGLISH HEARTH GLASS DOOR The glass u sed for the stoves is ceramic, resistant to high temperatures. Should it be damaged (e.g. chipped) it is recommended to have it replaced immediately by an authorized technician before using the machine again. To clean, use a non abrasive cloth with specific liquid for glass cleaning.
