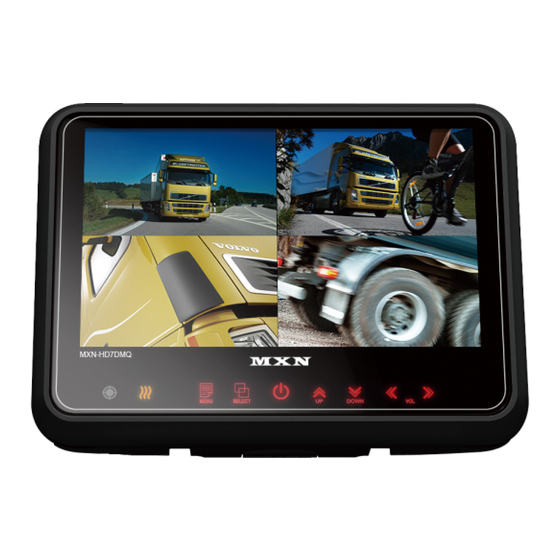

MXN HD7DMQ Owner's Manual

Tft digital lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TFT DIGITAL LCD Monitor
for MXN-HD7DMQ - Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD7DMQ and is the answer not in the manual?

Questions and answers

Related Manuals for MXN HD7DMQ

Summary of Contents for MXN HD7DMQ

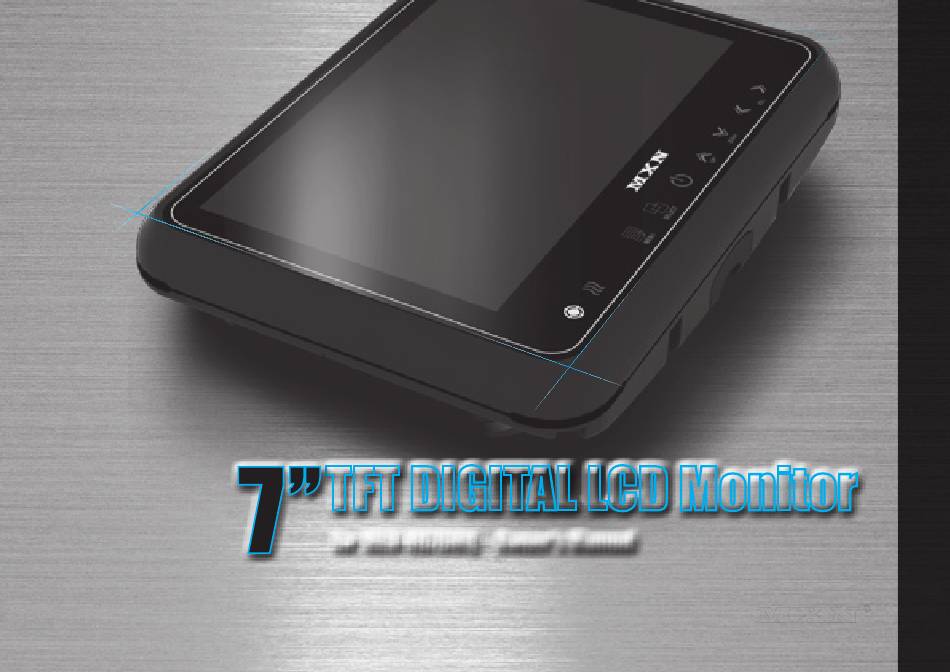

  • Page 1 TFT DIGITAL LCD Monitor for MXN-HD7DMQ - Owner’s Manual...
  • Page 2 · · · · · · Package Contents Operation System Setting Function Picture AUX Picture Normal/Mirror Camera Trigger Distance Marker Auto Picture Scan Camera Name Speed Switch Menu Split Triple Quad Distance Marker Adjust Lock On/Off Function Scan On/Off Function Installation Connection Specification...

  • Page 3: Package Contents

    7" TFT DIGITAL LCD Moniter PACKAGE CONTENTS CABLE CLIP BRACKET SCREWS MONITOR SUNVISOR SUNVISOR SCREWS STAND BRACKET MANUAL ITEM Q’TY MONITOR SUNVISOR SUNVISOR SCREW STAND BRACKET BRACKET SCREW CABLE CLIP CAMERA INPUT CABLE CAMERA INPUT CABLE MANUAL Owner’s Manual...

  • Page 4: Operation

    OPERATION A . DAY/NIGHT SENSOR (CDS) Automatic brightness control sensor. B . HEATER LAMP Orange color will be illuminated in case heater function is activated. C . MENU Press [MENU] button for system setting. D . SELECT Press [SELECT] button to select the respective channel. [CAM1 - CAM2 - CAM3 - CAM4 - AUX - SPLIT - TRIPLE - QUAD - CAM1...] E .

  • Page 5: System Setting

    7" TFT DIGITAL LCD Moniter SYSTEM SETTING FUNCTION LANGUAGE FUNCTION Provide 6 Multi-lingual OSD [ENGLISH, SWEDISH, DANISH, NORWEGIAN, DUTCH, LANGUAGE ENGLISH FINNISH]. SYSTEM PAL/NTSC LANGUAGE Select the preferred DIMMER AUTO/OFF NIGHT BRIGHT SYSTEM AUTO POWER AUTO/ON/OFF NTSC Select MONITOR HEAT ON/OFF DIMMER (Automatic Brightness Control) RESET...
  • Page 6 SYSTEM SETTING PICTURE PICTURE CONTRAST Press [LEFT RIGHT] button to adjust preferred PICTURE of the monitor. BRIGHTNESS COLOR PICTURE MENU adjust PICTURE of CAM1, CAM2, CAM3, CAM4, SPLIT, TRIPLE, TINT QUAD MODE AUX PICTURE CONTRAST AUX PICTURE MENU adjust PICTURE AUX MODE BRIGHTNESS User can adjust picture setting value...

  • Page 7: Camera Trigger

    7" TFT DIGITAL LCD Moniter CAMERA TRIGGER CAMERA TRIGGER TRIGGER 1/2/3/4 (Trigger source selection) Select the required trigger source at CAM1/CAM2/CAM3/CAM4/AUX/SPLIT/TRIPLE/ TRIGGER 1 CAM1-QUAD TRIGGER 2 CAM1-QUAD QUAD TRIGGER 3 CAM1-QUAD TRIGGER 4 CAM1-QUAD REMARK TRIG 1. DELAY 2 (0-9) TRIGGER PRIORITY: TRIGGER 1 >...

  • Page 8: Camera Name

    SYSTEM SETTING AUTO PICTURE SCAN AUTO PICTURE SCAN Each scanning time of CAM1/CAM2/CAM3 /CAM4/AUX/SPLIT/TRIPLE/QUAD can be AUTO SCAN ON/OFF selected. CAM1 SCAN TIME 2 (0-9) CAM2 SCAN TIME 2 (0-9) CAM3 SCAN TIME 2 (0-9) REMARK CAM4 SCAN TIME 2 (0-9) SCAN TIME scanning.

  • Page 9: Speed Switch

    7" TFT DIGITAL LCD Moniter SPEED SWITCH SPEED SW The orange wire needs to be connected with the vehicle’s tacho signal and via MENU SPEED SWITCH ON/OFF SPEED SWITCH needs to be selected ON. At FREQUENCY 67Hz setting(and FREQUENCY 67 Hz UNDER FREQUENCY CAM CAM3/ CAM1~QUAD most common used tacho signal) the selected camera will be displayed during a...
  • Page 10 MENU SPLIT SPLIT SOURCE 1 SOURCE 1 CAM1 Select S1 Camera(CAM1~CAM4). SOURCE 2 CAM2 AUDIO CAM1 SOURCE 2 MODE Select S2 Camera(CAM1~CAM4). AUDIO Select SPLIT of Audio(CAM1~CAM4). MODE Select SPLIT MODE TRIPLE TRIPLE SOURCE 1 CAM1 SOURCE 1 Select S1 Camera(CAM1~CAM4). SOURCE 2 CAM2 SOURCE 3...
  • Page 11 7" TFT DIGITAL LCD Moniter QUAD QUAD SOURCE 1 SOURCE 1 CAM1 Select S1 Camera(CAM1~CAM4). SOURCE 2 CAM2 SOURCE 3 CAM3 SOURCE 2 SOURCE 4 CAM4 Select S2 Camera(CAM1~CAM4). AUDIO CAM1 SOURCE 3 MODE Select S3 Camera(CAM1~CAM4). SOURCE 4 Select S4 Camera(CAM1~CAM4). AUDIO Select QUAD of Audio(CAM1~CAM4).
  • Page 12 MENU DISTANCE MARKER ADJUST User can adjust location of distance marker. Marker A- Parking line At Power mode, select distance marker by pressing [UP/DOWN] buttons. When color of distance markers is seen as color, user can adjust the lines UP/ DOWN or LEFT/RIGHT.
  • Page 13 7" TFT DIGITAL LCD Moniter LOCK ON/OFF FUNCTION LOCK ON/OFF FUNCTION The set up menu can be locked as prevention against unauthorized users. LOCK ON mode Power-ON mode, hold [DOWN] button pressed for 10 seconds to set up LOCK ON function.

  • Page 14: Installation

    INSTALLATION MONITOR installation with STAND BRACKET & SUNVISOR Remove a protection tape and attach STAND BRACKET into stand place, then fix it with the supplied screws. Connect STAND BRACKET with monitor and adjust height/angle. Attach SUNVISOR to the MONITOR and fix it with the supplied screws. Connect CAMERA INPUT CABLE to the MONITOR.
  • Page 15 7" TFT DIGITAL LCD Moniter Installation of HEAVY DUTY MOUNTING BRACKETS MONITOR can be connected with different type of heavy duty mounting brackets. Please check the compatibility in advance, then please follow installation as described below. TYPE A(option) TYPE B(option) 30mm 40mm 38mm...
  • Page 16 7" TFT DIGITAL LCD Moniter CONNECTION TRIGGER 1- Green TRIGGER 2- White TRIGGER 3- Blue 7” TFT DIGITAL LCD Monitor TRIGGER 4- Yellow Speed Switch(TACHO SIGNAL)- Orange Ground- Black Main power 12V / 24V DC via ignition (+15)- Video In- Yellow Audio In- White...

  • Page 17: Specification

    -25°C ~ +75°C Storage Temp. -30˚C to + 85˚C Impact Rating Camera Connector 4-pin mini DIN (MXN configuration) Housing Soft black(Al12) Volume · Brightness · Color · Contrast · Tint · CAM Screen 1/2/3/4 SPLIT TRIPLE QUAD · CAM Trigger ON-Screen Display 1/2/3/4 ·...
  • Page 18 MEMO 7" TFT DIGITAL LCD Moniter...
  • Page 19 7" TFT DIGITAL LCD Moniter MEMO Owner’s Manual...
  • Page 20 TFT DIGITAL LCD Monitor for MXN-HD7DMQ - Owner’s Manual...
