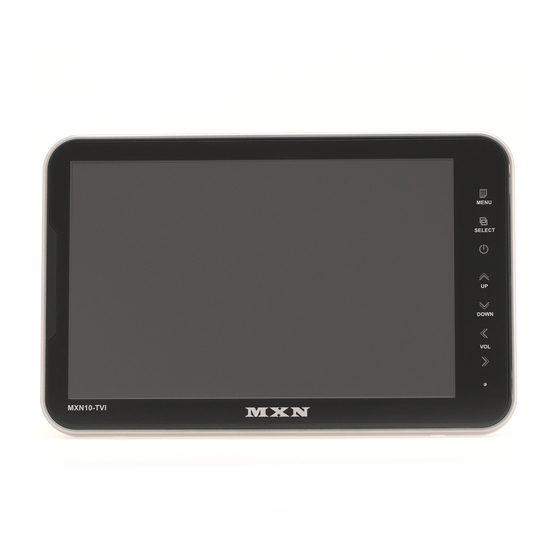

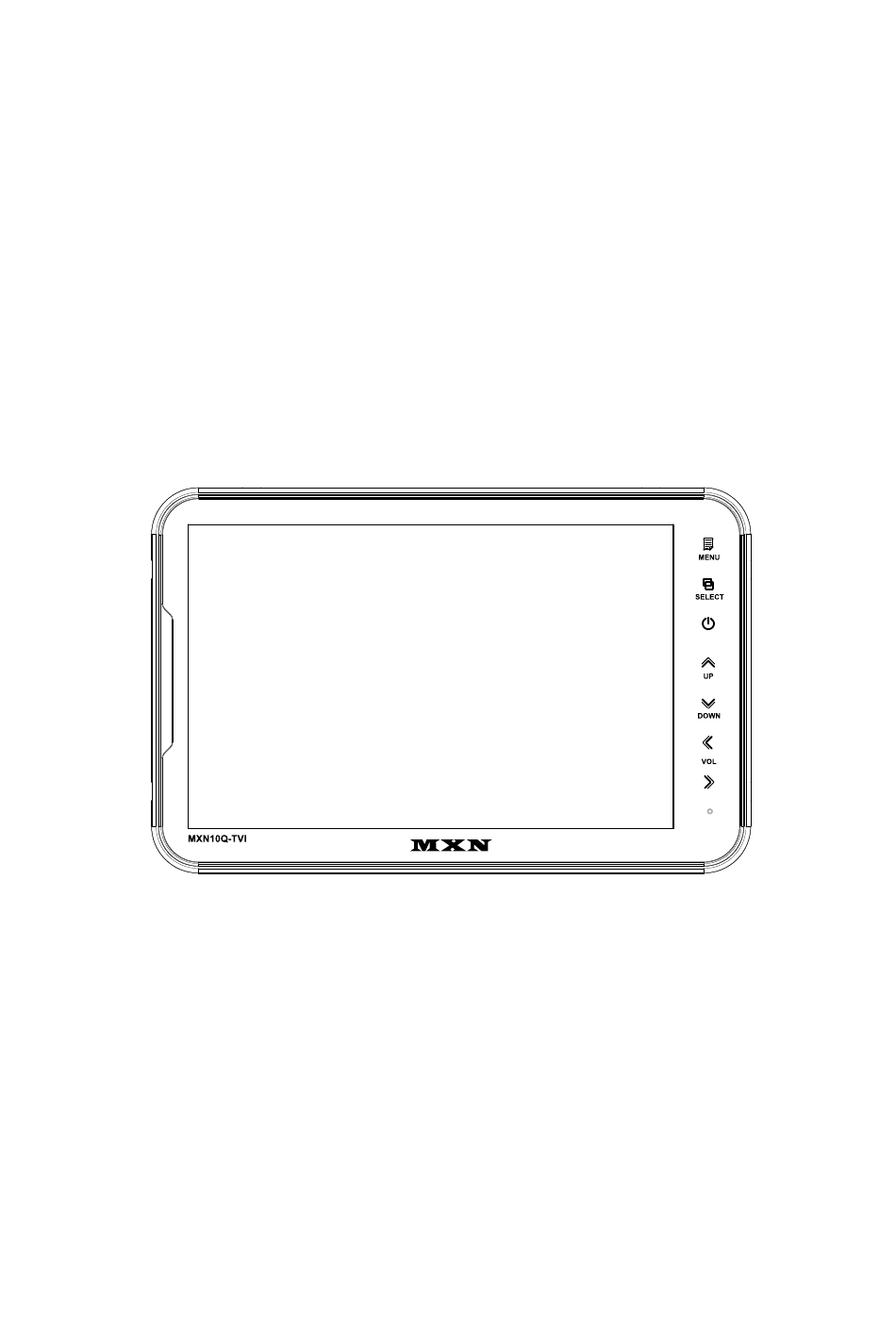

- Page 1 OWNER’S MANUAL PLEASE READ CAREFULLY BEFORE USING THIS PRODUCT. 10.1” DIGITAL SPLITSCREEN LCD ALL ROUND VISION MONITOR Model: MXN10Q-TVI Design and specifications are subject to change without notice.
- Page 2 INDEX PACKAGE CONTENTS OPERATION SYSTEM SETTINGS MENU STRUCTURE FUNCTION PICTURE MENU NORMAL/MIRROR AUDIO TRIGGER AUDIO CAMERA TRIGGER DISTANCE MARKER MARKER DISTANCE MARKER ADJUSTMENT AUTO PICTURE SCAN CAMERA NAME SPEED SWITCH MENU SPLIT TRIPLE QUAD MANUAL SELECTION MENU LOCK ON/OFF FUNCTION AUTO PICTURE SCAN ON/OFF FUNCTION CONNECTIONS CAMERA INPUT...
-
Page 3: Package Contents
CAMERA INPUT CABLE BRACKET SCREWS MOUNT SCREWS HEAVY DUTY MOUNT ITEM Q’TY MONITOR CAMERA INPUT CABLE HEAVY DUTY MOUNT MOUNT SCREWS (Machine Screw, M5 / 12mm) PH M5x12 BRACKET SCREWS (Tapping Screw, M5 / 25mm) TH 1, M5x25 MANUAL MXN10Q-TVI Owner's Manual... -
Page 4: Operation
OPERATION A. MENU Press [MENU] button for system settings. B. SELECT Press [SELECT] button to select the respective channel. [CAM1 - CAM2 - CAM3 - CAM4 – SPLIT1 – SPLIT2 – TRIPLE – QUAD – CAM1...]. C. POWER Press [POWER] button to turn on/off the monitor. D. -
Page 5: System Settings
Display the camera video at the set position on the TRIPLE screen. QUAD Display the camera image on the QUAD screen at the set position. MANUAL SELECTION When the SELECTION button is pressed, the output screen is set. MXN10Q-TVI Owner's Manual... - Page 6 SYSTEM SETTINGS LANGUAGE ENGLISH SYSTEM AUTO DIMMER AUTO DAY BRIGHT NIGHT BRIGHT AUTO POWER BUZZER RESET >> SYSTEM INFO VER 1.00 FUNCTION LANGUAGE Provide 6 Multi-lingual OSD [ENGLISH, SWEDISH, DANISH, NORWEGIAN, DUTCH, FINNISH]. Select the preferred LANGUAGE. SYSTEM Select AUTO/TVI/AHD/NTSC/PAL DIMMER (Automatic Brightness Control) Select AUTO or OFF to enable Automatic or Manual brightness control.
-
Page 7: Picture Menu
SPLIT1, SPLIT2, TRIPLE, QUAD MODE. FISHEYE When using the FISHEYE camera, 『ON』 will calibrate the screen on the FULL screen. CAM1 NORMAL CAM2 NORMAL CAM3 NORMAL CAM4 NORMAL NORMAL/MIRROR Each camera picture (CAM1/CAM2/CAM3/CAM4) can be switched between NORMAL& MIRROR image. MXN10Q-TVI Owner's Manual... - Page 8 SYSTEM SETTINGS CAM1 AUDIO CAM2 AUDIO CAM3 AUDIO CAM4 AUDIO SPLIT TRIPLE QUAD AUDIO Audio ACTIVATED Mode in normal mode. When the mode is [ON], audio will be on (activated) When the mode is [OFF], audio will be off (mute). TRIG1 AUDIO ENTER...
-
Page 9: Camera Trigger
[TRIGGER DELAY] function avoids repeating ON/OFF of the monitor. TRIGGER1 TRIGGER2 TRIGGER3 TRIGGER4 MARKER DISTANCE MARKER Select ON to have DISTANCE MARKER for CAM1, CAM2, CAM3, CAM4. DISTANCE MARKER is displayed as the trigger signal is activated. MARKER Select of DISTANCE MARKER. or ___ MXN10Q-TVI Owner's Manual... - Page 10 SYSTEM SETTINGS >> Marker A >> Marker B DISTANCE MARKER ADJUSTMENT Users can make adjustments by pressing the SELECT button in the menu. (It is not available on the split mode screen) Marker A- Parking line The left/right/both markers will be selected in order each time you press the SELECT button. When the marker is red it can be adjusted UP/DOWN or LEFT/RIGHT.
-
Page 11: Camera Name
Press [UP] button for 4 seconds to ACTIVATE / INACTIVATE auto scanning function. CAM NAME DISPLAY CAM1 NAME CAM1 CAM2 NAME CAM2 CAM3 NAME CAM3 CAM4 NAME CAM4 CAMERA NAME CAMERA NAME can be selected as CAM1, 2, 3, 4/REAR/LEFT/RIGHT/FRONT. MXN10Q-TVI Owner's Manual... -
Page 12: Speed Switch
SYSTEM SETTINGS SPEED SWITCH FREQUENCY 67Hz UNDER FREQUENCY CAM CAM3 OVER FREQUENCY DISPLAY OVER FREQUENCY CAM CAM1 SPEED SWITCH The orange wire needs to be connected with the vehicle’s tacho signal and via MENU the SPEED SWITCH needs to be selected ON. At FREQUENCY 67Hz setting (and the most common used tacho signal) the selected camera will be displayed during a speed of 0~33km/h. - Page 13 CAM2 SOURCE 3 CAM3 AUDIO CAM1 MODE TRIPLE configuration SOURCE 1 Select S1 Camera (CAM1~CAM4). SOURCE 2 Select S2 Camera (CAM1~CAM4). SOURCE 3 Select S3 Camera (CAM1~CAM4). AUDIO Select TRIPLE of Audio (CAM1~CAM4). MODE Select TRIPLE MODE MXN10Q-TVI Owner's Manual...
-
Page 14: Manual Selection
MENU SOURCE 1 CAM1 SOURCE 2 CAM2 SOURCE 3 CAM3 SOURCE 4 CAM4 AUDIO CAM1 MODE QUAD configuration SOURCE 1 Select S1 Camera (CAM1~CAM4). SOURCE 2 Select S2 Camera (CAM1~CAM4). SOURCE 3 Select S3 Camera (CAM1~CAM4). SOURCE 4 Select S4 Camera (CAM1~CAM4). AUDIO Select QUAD of Audio (CAM1~CAM4). - Page 15 [UP] button for 4 seconds to activate the Auto Scan Picture function. During the Auto Scan Mode, press the [UP] button for 4 seconds to deactivate Auto Scan Picture function. SCAN CAM1 SCAN CAM2 SCAN CAM3 SCAN CAM4 SCAN QUAD SCAN TRIPLE SCAN SPLIT2 SCAN SPLIT1 MXN10Q-TVI Owner's Manual...
-
Page 16: Camera Input
CONNECTIONS MENU TRIGGER 1 - Green SELECT TRIGGER 2 - White DOWN TRIGGER 3 - Blue TRIGGER 4 - Yellow Speed Switch (TACHO SIGNAL) - Orange Shutter Memory 12/24V DC (+30) - Brown Ground - Black Main power 12V/24V DC via ignition (+15) - Camera 4 (Option) Camera 3 (Option) Camera 2 (Option) -
Page 17: Installation
Maximum 7mm insert of screw into the monitor in case another type bracket and/or screws are being applied. A deeper insert than 7mm will damage the monitor. Heavy Duty Mount Bracket 38mm 40mm 184mm 38mm 26mm 60mm 40mm 42mm 30mm MXN10Q-TVI Owner's Manual... - Page 18 INSTALLATION Installation of Heavy Duty Mount Bracket The MONITOR HEAVY DUTY MOUNTING BRACKETS. can be used with different types of Please check the availability in advance, then please follow the instructions as below. [NOTE] • The screw type : Mount-screw type, M5 (diameter of 5mm). •...
-
Page 19: Specifications
SPEAKER IMPEDANCE Max. 8Ω / 1W OPERATING TEMP. -20°C to + 70°C STORAGE TEMP. -30°C to + 80°C IMPACT RATING CAMERA CONNECTOR 4-Pin mini DIN (MXN configuration) HOUSING Light Black (ABS) ■ Volume ■ Brightness ■ Color ■ Contrast Tint ON-SCREEN ■... - Page 20 OWNER’S MANUAL PLEASE READ CAREFULLY BEFORE USING THIS PRODUCT. 10.1” DIGITAL SPLITSCREEN LCD ALL ROUND VISION MONITOR Model: MXN10Q-TVI Design and specifications are subject to change without notice.
