MXN MXN46R-TVI Instruction Manual

Model: MXN46R-TVI

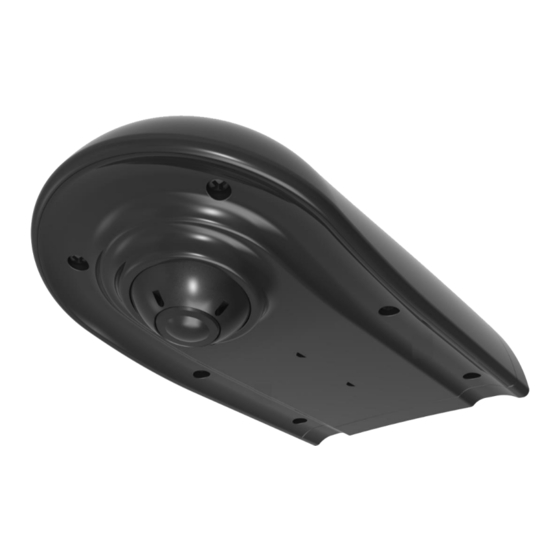

◈ MXN46R-TVI Corner Camera
◈ Features
• 2.07 Mega pixels Full HD SONY CMOS Color camera
• 1/2.8" Color CMOS high resolution image sensor (STARVIS)
• HD-TVI 1080P/30fps
• IP69K Waterproof Rating
• Diagonal 200˚ Viewing angle
• Normal/Mirror Image adjustable
• Ultra low light performance
• Automatic Electronic Iris
• Built-in Microphone (for one-way Audio)
• Temperature Range -40˚C to +80˚C
• Vibration resistant (10G)
• Waterproof screw type connector, 4-pin mini-DIN
• Various spacer type for optimal alignment (0 degree, 8 degree, 15 degree)
• ECE R10.05 approved (EMC)
• ECE R46 Class V and Class VI approved (together with MXN10Q-TVI monitor)
V / VI
E
9
04.16273 E9*46R04/08*16273*00

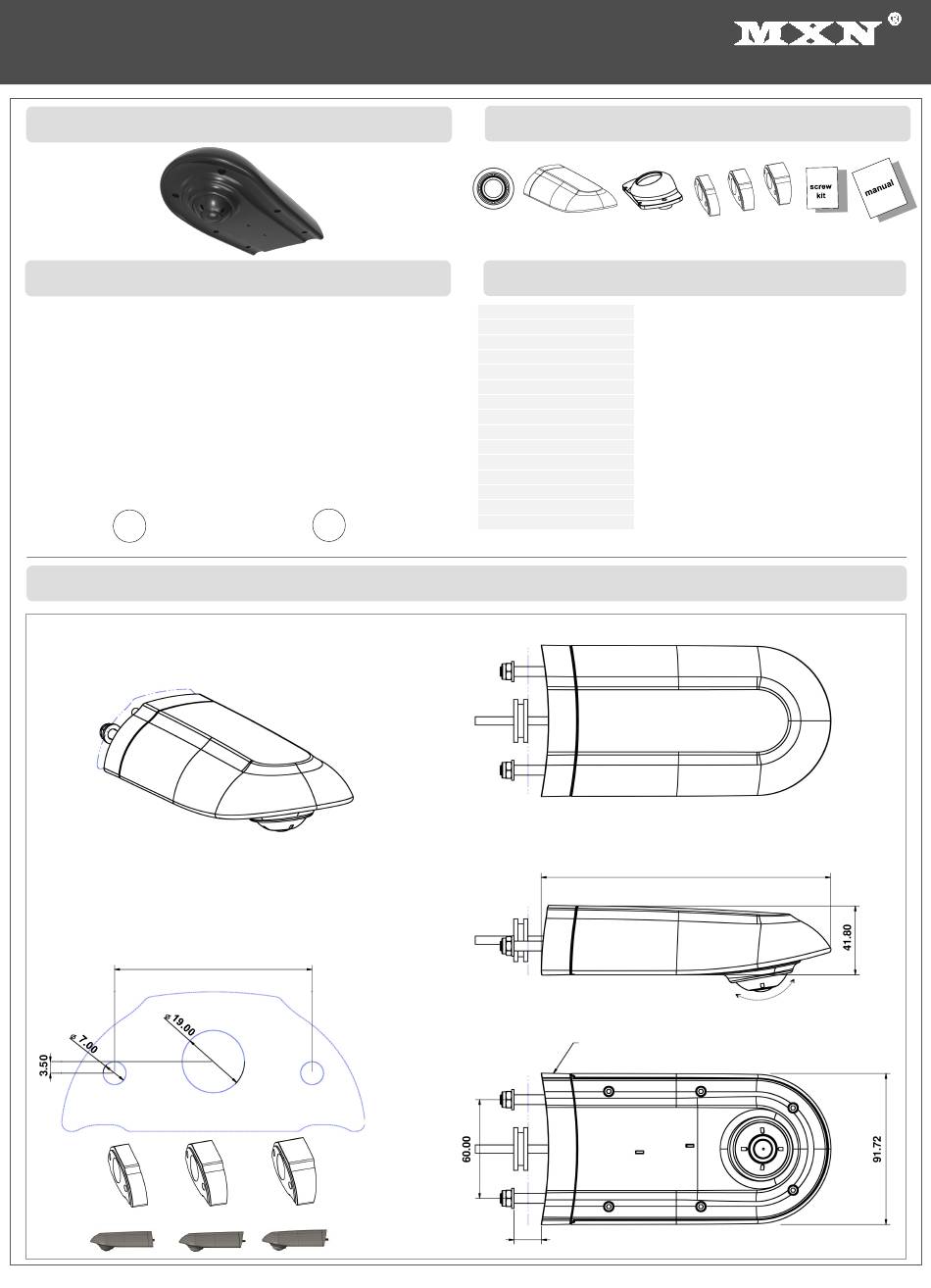

◈ Dimensions
60.00
0° Spacer
8° Downward Spacer
E
11
10R-06 11379
15° Downward Spacer
◈ Contents
Camera Bracket Fixation Holder
(top & bottom)
◈ Technical Specifications
Image Sensor
Effective Pixels
Resolution
Scanning System
Video Output
Audio Input
S/N Ratio
Lens Distortion Correction
Lens
Minimum Illumination
Power Consumption
Power Range
Operating Temperature
Dimensions
Weight
Spacer to be selected (1 out of 3), subject to vehicle's shape
and best alignment of this camera.
Max 10
* Design And Specifications Are Subject To Change Without Notice.
Instruction Manual
Spacers Screw kit
(3 types)
1/2.8" Sony CMOS Sensor (STARVIS)
2.07 Mega pixels, 1920(H) x 1080(V)
1080 TV lines
Progressive
HD-TVI 4.0, 1080P/30fps
High Sensitive C-Microphone
More than 48dB (at minimum AGC gain)
Horizontal correction only
200˚ (Diagonal), 175˚ (Horizontal), 97˚ (Vertical)
0.5 Lux (50IRE)
DC 12V, 100mA
DC 9V ~ DC 48V
-40˚C to +80˚C
91.7(W) x 170.5(D) x 42(H) incl. Bracket
Approx. 107g (total weight incl. bracket : 290g)
175.78
±30° Adjustment Range of Camera
Manual
