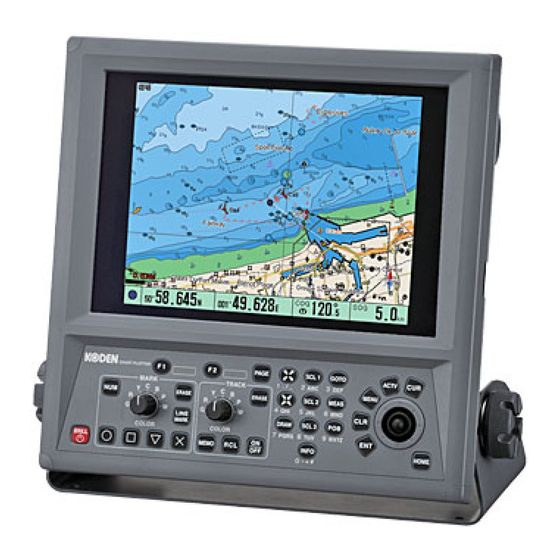

Koden GTD-120 Quick Reference

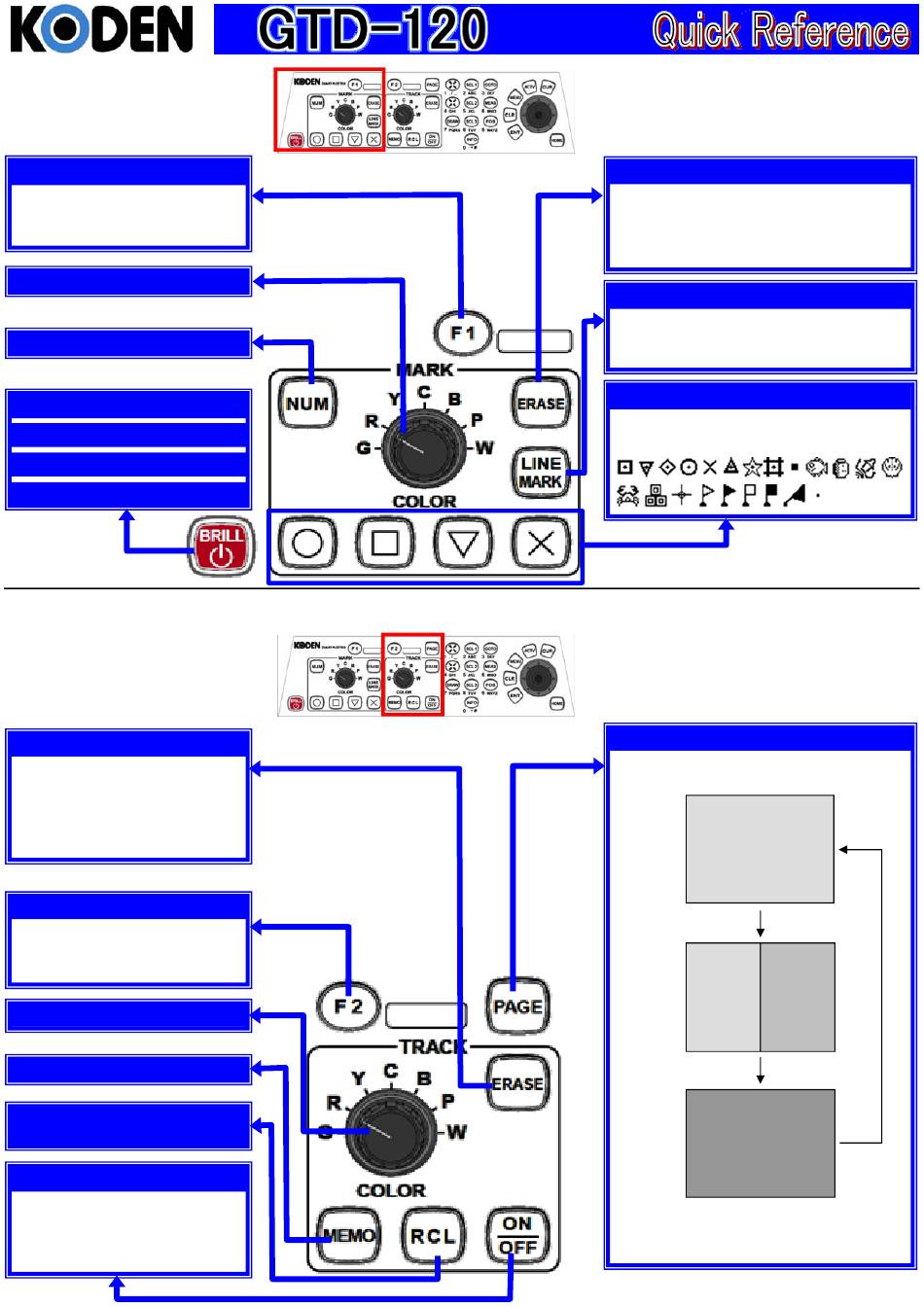

Call up the registered function
Function is registered by menu.
[SYS/ALM]=>[SYSTEM 1]=>
[F1 KEY]
Change mark color
Enter mark by numeric input
Power ON
Power OFF (Long press）
Adjust brightness of screen
Adjust brightness of panel
Erase track
[Cursor is displayed]
• Specify the area and erase
[Cursor is not displayed]
Select colors and erase
•
Call up the registered function
Function is registered by menu.
[SYS/ALM]=>[SYSTEM 1]=>
[F2 KEY]
Change track color
Save recorded track
Display / do not display
the saved track
Record track ON / OFF
During wake recording, the
number of recorded points is
displayed at the lower right of
the screen
Erase mark
[Cursor is displayed]
Select the mark and erase
•
[Cursor is not displayed]
Select colors and shapes and erase
•
Enter a marked line
Mark shape and line type are set by menu.
[SYS/ALM]=>[SYSTEM 3]=>
[LINE MARK]/[LINE MARK STYLE]
Enter a mark
The shape of the mark selected from the
following depending on the menu setting
Switch display screen
Each time press the key, the screen switchs
(Example)
MAP1
MAP1 MAP2
Bird view
The screen to switch is
registered by menu
[DISPLAY]=>[LAYOUT]
.
