Logik LFS16 Instruction Manual

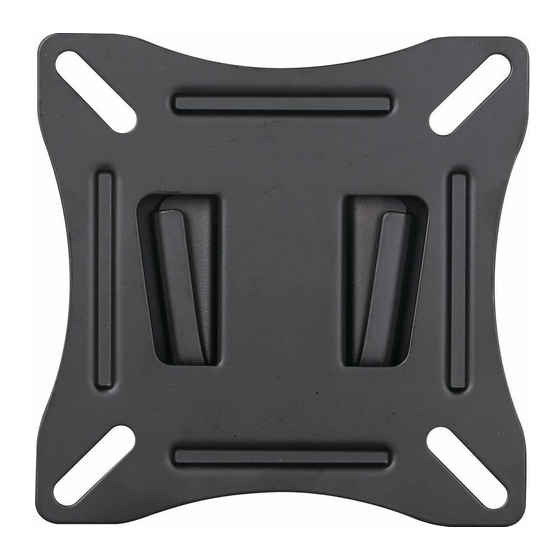

Fixed Small TV Mount
Instruction Manual
LFS16
Thank you
for purchasing your new product.
Please follow this quick start guide for a successful rst time set up.
Read all the safety instructions carefully before use and keep the quick start guide
for future reference.
Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
With over 1 million spares and accessories available we can deliver direct to your door
the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only)
Calls charged at National Rate.
Currys Group Limited (co. no. 504877)
Omni Park SC, Santry, Dublin 9, Republic of Ireland
1 Portal Way, London, W3 6RS, UK
EU Representative
Currys Ireland Limited (259460)
3rd Floor O ce Suite

SAFETY

TV SIZE
10" - 26"
WARNING! READ THE FOLLOWING BEFORE STARTING INSTALLATION
• Assembly is required. Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury
and property damage.
• The supplied TV bracket is only for use on vertical walls constructed from solid brick, solid concrete, solid wood and solid wooden columns.
• It is the installers' responsibility to verify that the wall will safely support the total load of the TV and the TV bracket. Never exceed the
designated maximum TV load.
• Parts are heavy; take care when handling. For some steps, 2 people are required for installation.
• Check the TV bracket frequently to ensure that it is safe and secure. Additional tools (not included) are required for the installation. Do not
over-tighten screws.
• Keep this instruction manual for future reference.

UNPACKING

IB-LFS16-211026V6
KG
TV LOAD VESA COMPLIANCE DISTANCE TO WALL
25 kg 75 x 75 - 100 x 100 mm 10 mm
x 4 x 4
A1 A2
x 1 x 1
A4 A5
× 4 × 4
B1 B2
M4 × 10 M4 × 20
× 4 × 4
B5 B6
M6 × 10 M6 × 20
× 4 × 4
B7 B8
M6-M8 × 5 M6-M8 × 10
x 4
A3
× 4 × 4
B3 B4
M5 × 10 M5 × 20
× 4 × 4
B9 B10
M4-M5 M6-M8
