Summary of Contents for Logik LFM11X

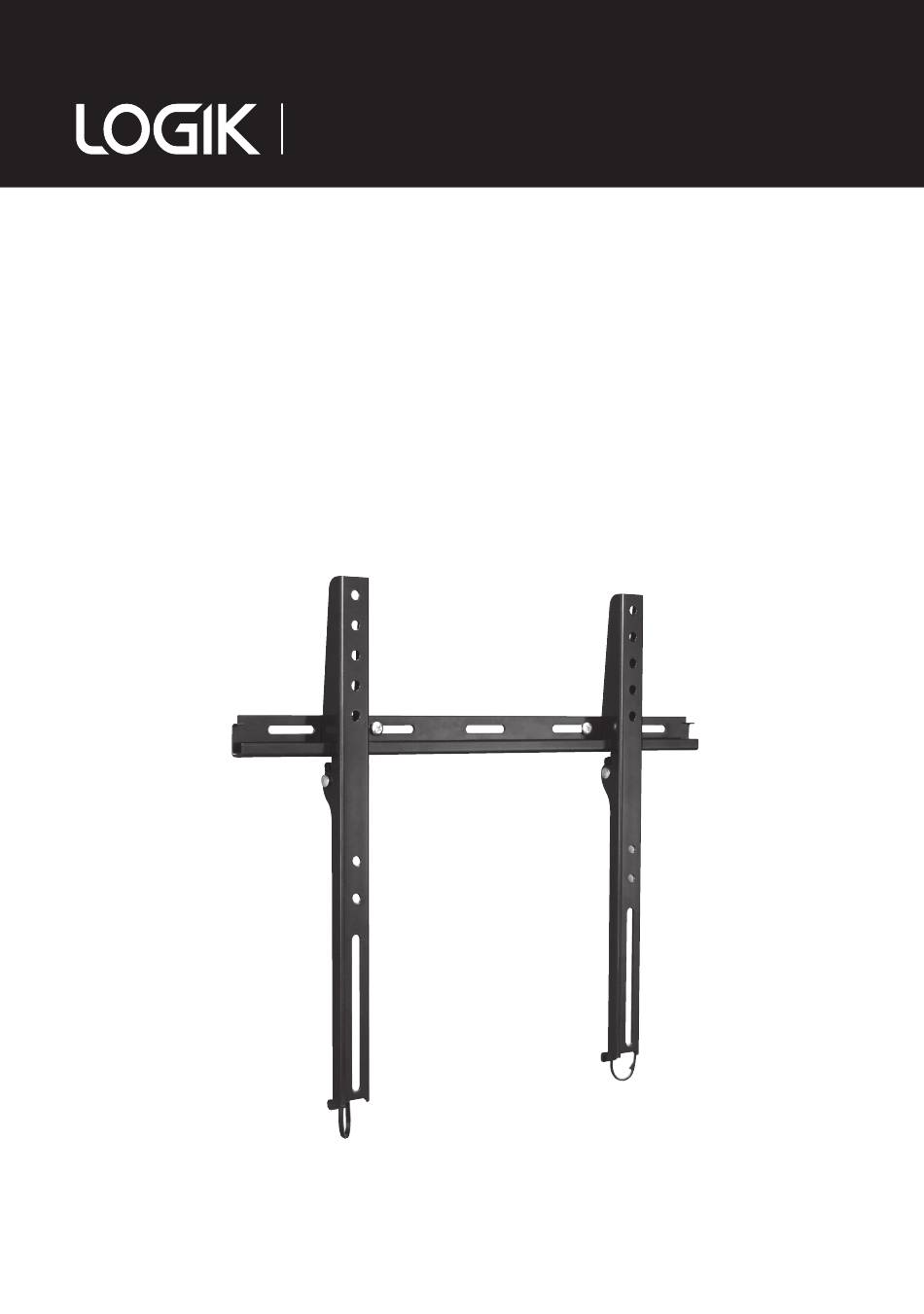

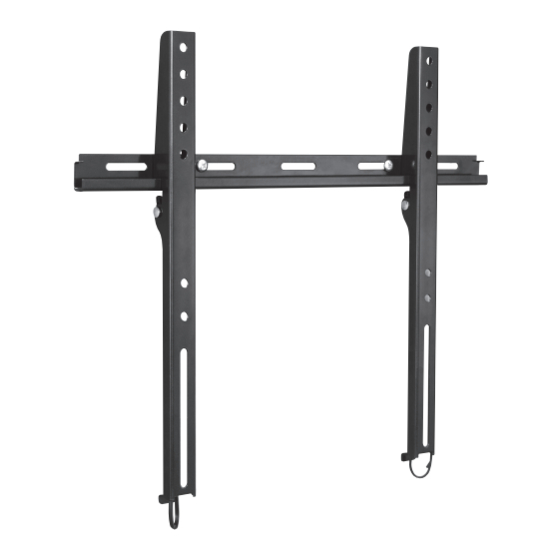

- Page 1 Instruction Manual Medium Fixed TV Bracket LFM11X...
- Page 3 CUSTOMER HELPLINE (UK Customers Only) 0844 561 1234 MAX TV LOAD 37” 15 kg 37” • Recommended for most TV screen sizes • VESA Compliance: up to 400 x 400 • Maximum TV Load: 15 kg • Wall fixings included • Quick release WARNING! READ THE FOLLOWING BEFORE STARTING INSTALLATION • Assembly is required. Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage. • The supplied TV bracket is only for use on vertical walls constructed from solid brick, solid concrete, solid wood and solid wooden columns. • It is the installers’ responsibility to verify that the wall will safely support the total load of the TV and the TV bracket. Never exceed the designated maximum TV load.
- Page 4 In st ru c ti o n M a n u a l M5 * 20 M8 * 15 M5 * 30 M8 * 20 M5/M6/M8 M6 * 15 M8 * 30 M5/M6 M6 * 20 M6/M8 * 5 M5 * 15 M6 * 30 If items are missing, or damaged contact Partmaster on 0844 800 3456 (UK customers only).
- Page 5 ø8mm 63mm ø3mm 63mm...
- Page 6 Use spacers provided for mounting TVs with curved / recessed backs, recessed mounting holes, or to allow access to A/V inputs.
- Page 8 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK. IB-LFM11X-140217V5...
