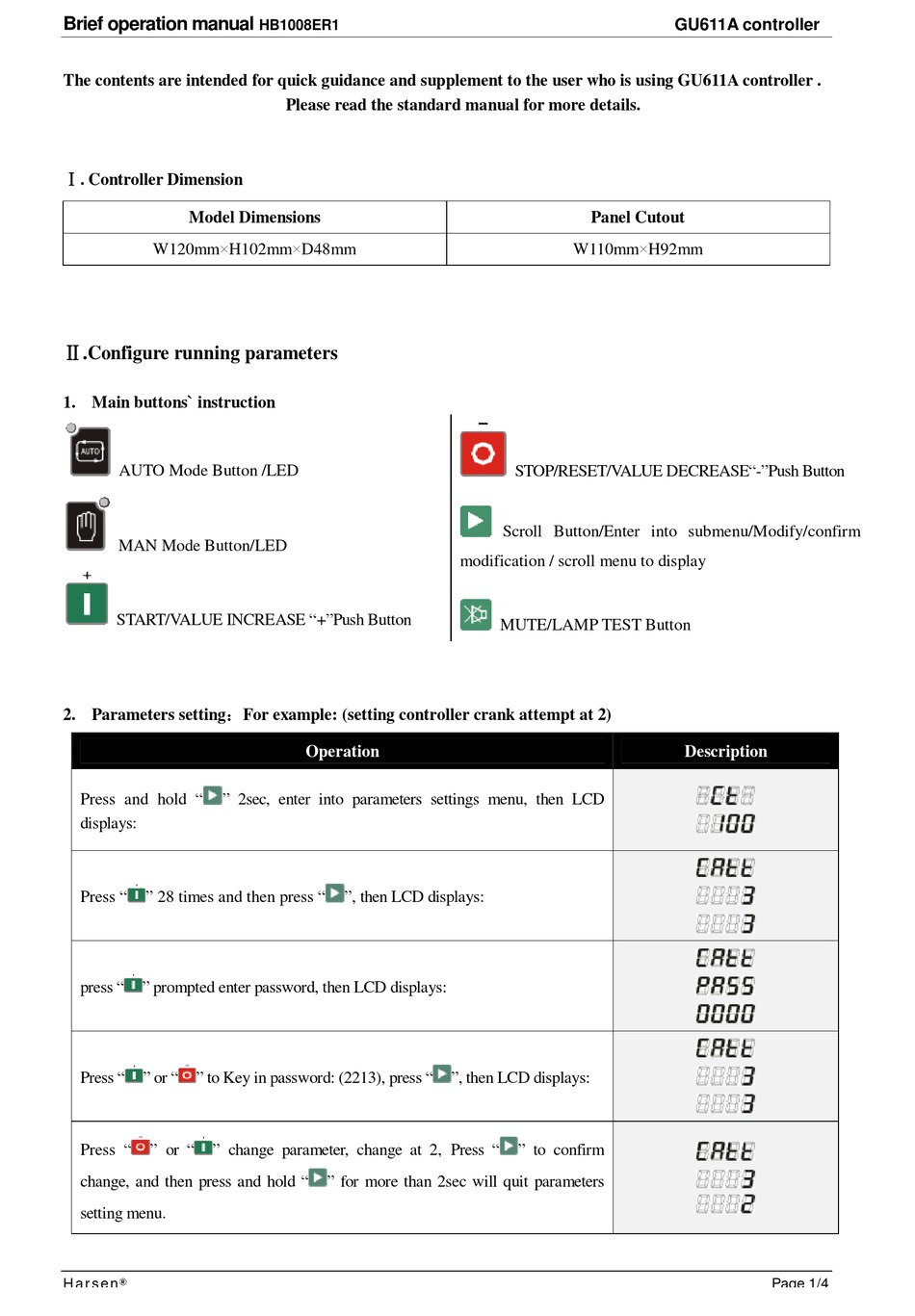

Harsen GU611A Brief Operation Manual

Brief operation manual
The contents are intended for quick guidance and supplement to the user who is using GU611A controller .
Ⅰ Controller Dimension
.
Model Dimensions
W120mm×H102mm×D48mm
Ⅱ
.Con figure running parameters
1. Main buttons` instruction
AUTO Mode Button /LED
MAN Mode Button/LED
START/VALUE INCREASE "+"Push Button
2. Parameters setting：For example: (setting controller crank attempt at 2)
Press and hold " " 2sec, enter into parameters settings menu, then LCD
displays:
Press " " 28 times and then press "
press " " prompted enter password, then LCD displays:
Press " " or " " to Key in password: (2213), press "
Press " " or " " change parameter, change at 2, Press "
change, and then press and hold "
setting menu.
Harsen
®
HB1008ER1
Please read the standard manual for more details.
Operation
", then LCD displays:
" for more than 2sec will quit parameters
Panel Cutout
W110mm×H92mm
STOP/RESET/VALUE DECREASE"-"Push Button
Scroll Button/Enter into submenu/Modify/confirm
modification / scroll menu to display
MUTE/LAMP TEST Button
", then LCD displays:
" to confirm

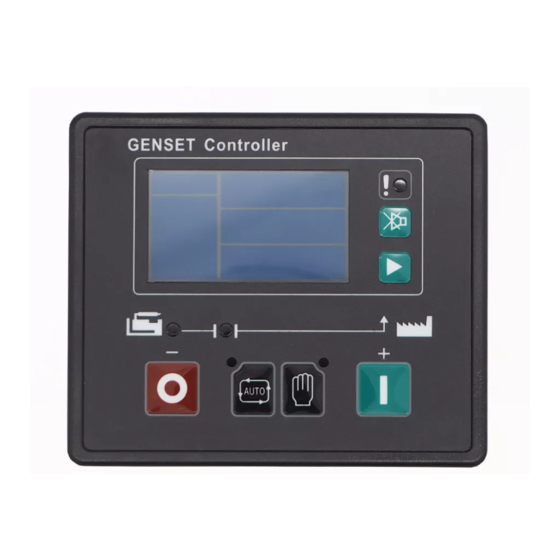

GU611A controller
Description
Page 1/4
