1 Service Navigation

1.1 Introduction
This service manual contains technical information, which allow service personnel's to understand and service this model.
Please place orders using the parts list and not the drawing reference numbers.
If the circuit is changed or modifed, the information will be followed by supplement service manual.

1.2 Important Notice

1.2.1 About LENS MAIN UNIT (Ref. 202)
1. LENS MAIN UNIT (Ref. 202) is not supplied due to diffculty of the transportation issue (Fragile, Dust-free packing), and requires critical
lens adjustments.
Therefore, any needs of the "LENS MAIN UNIT" (Ref. 202), carefully confrm its performance in advance.
2. Once "LENS MAIN UNIT" (Ref. 202) is confrmed as defective, place order "LENS UNIT" (Ref. 200) and replace SHADING FRAME (Ref.
206), to maintain Serial number of owner's original lens.

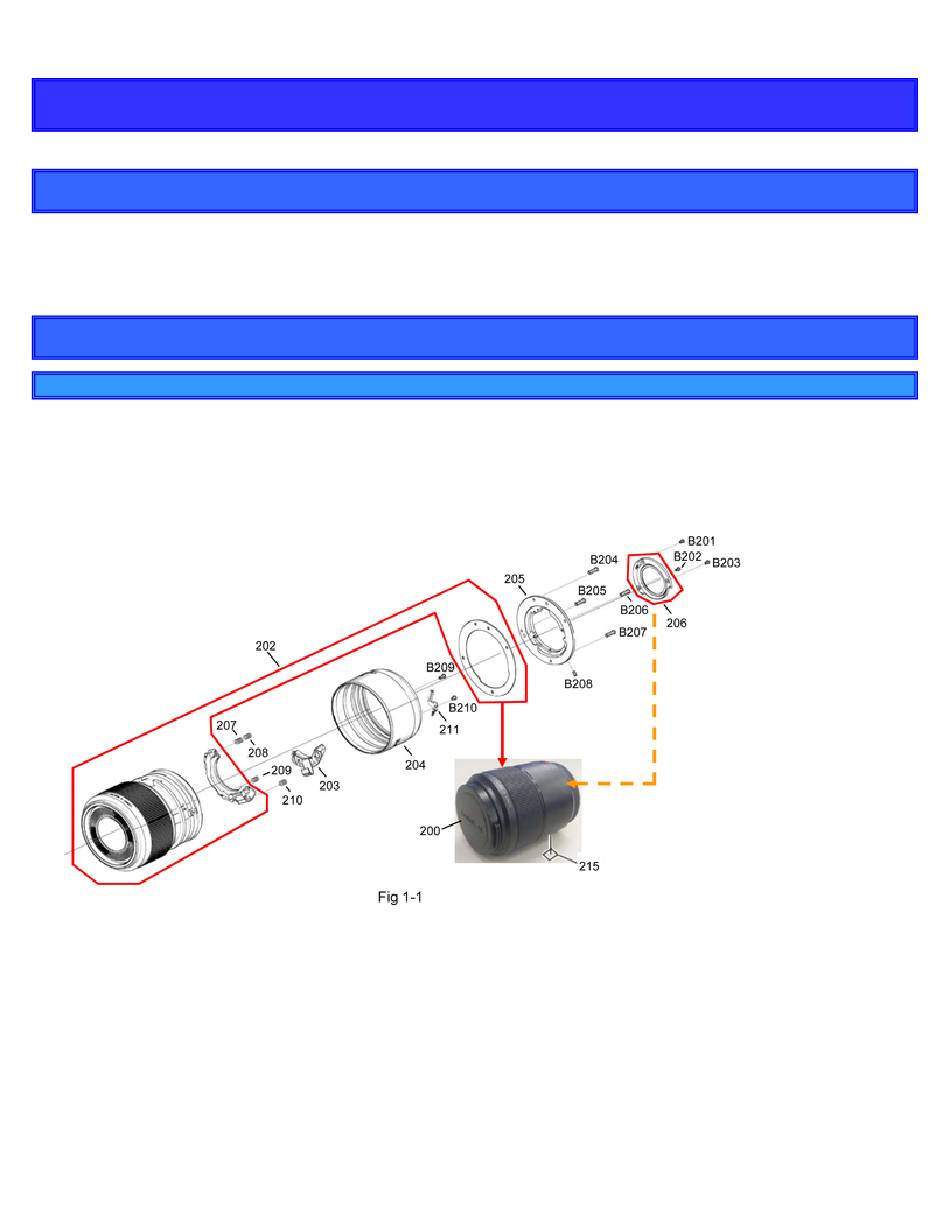

3. No adjustment is required when replacing the part mentioned on Fig.1-1. But, when tighten the concerned screws,apply proper torque
mentioned on "4. Disassembly and Assembly Instruction" section.
