Summary of Contents for Pronomic Expand&Turn Light

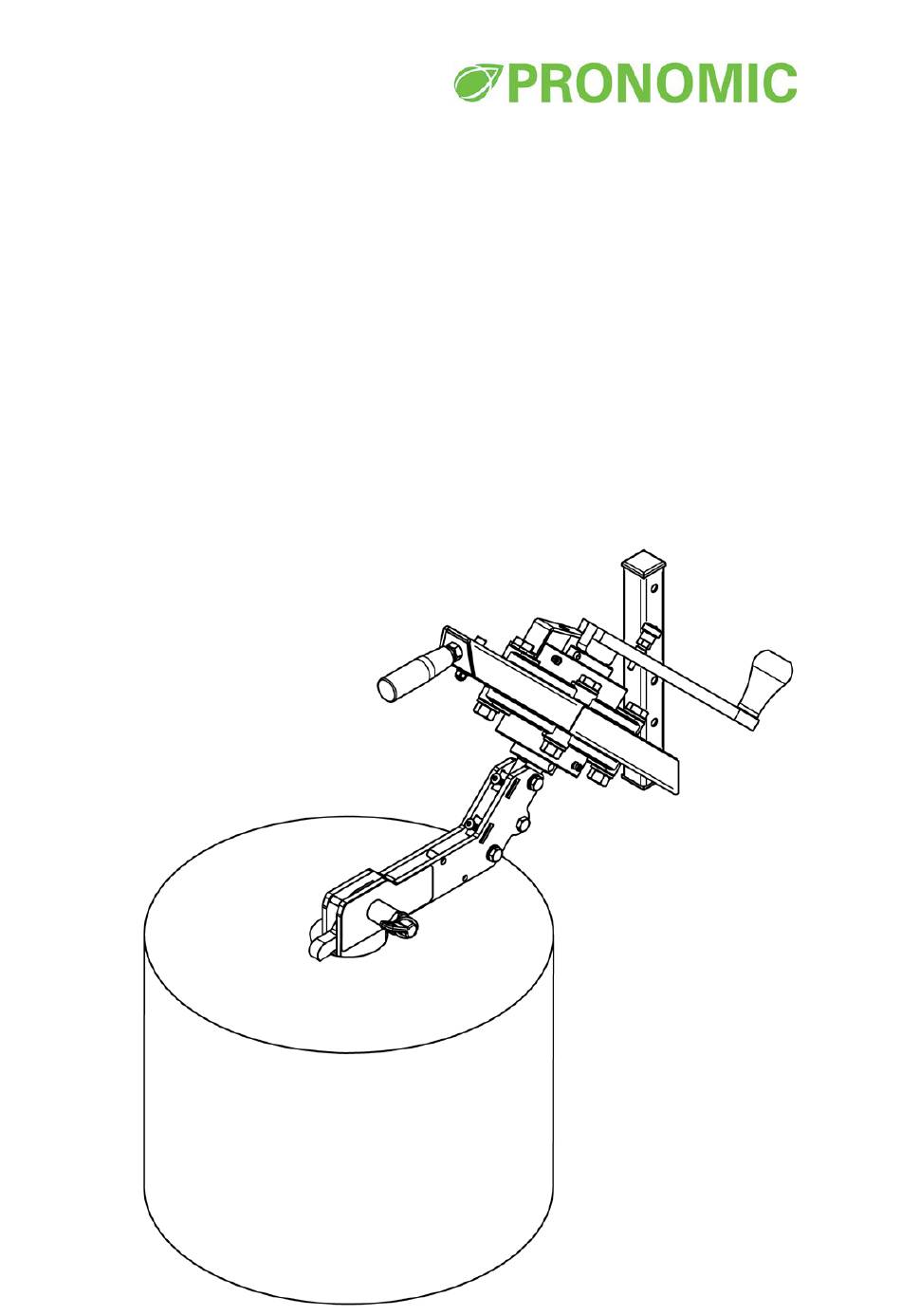

- Page 1 Expand&Turn Light 17940 User’s manual Original Instructions...
- Page 2 It is important that you read and understand this manual before the attachment is used. Questions? – Contact your supplier or the manufacturer. Pronomic AB Street address: Postal address: Domherrevägen 15 Box 5504 192 55 Sollentuna 192 05 Sollentuna Phone: 08-544 706 60 Fax: 08-544 706 70 E-mail: info@pronomic.se...
-
Page 3: Table Of Contents
Content Description of the attachment Expand&Turn Light ............1 Warranty ............................1 Assembly ..........................2 Disassembly and scrapping ......................2 Use ............................. 2 Loading ............................2 3.1.1 Load and rotate standing rolls ......................2 3.1.2 Loading rolls laying down or from a prong ..................3 Unloading rolls .......................... -
Page 4: Description Of The Attachment Expand&Turn Light
The maximum load of the attachment is 40kg but this is limited by the dimension of the roll. See chapter 6 “technical data” for more information. The attachments are only intended to be used with Pronomic AB’s Lift&Drive lift trolleys. They are only to be used indoors in well lit environments on level floors. -
Page 5: Assembly
When mounting the attachment, protective shoes should be worn, as the parts can cause injury if dropped. 2.1 Disassembly and scrapping When scrapping the attachment should be sent to a recycling center or Pronomic to guarantee recycling and safe handling of all the consisting parts of the tool. 3 Use The attachment is for roll-handling only. -
Page 6: Loading Rolls Laying Down Or From A Prong
3.1.2 Loading rolls laying down or from a prong Turn the setting pin to green (active mode). (Active mode can also be set after the expander core is inside the roll) Position the expander to the prong or the core of the roll and activate the brakes on the trolley. Slide the roll onto the expander completely. -
Page 7: Adjusting The Angle Of The Expander
3.3 Adjusting the angle of the expander The expander can be adjusted to compensate for the weight of the roll and/or the circumstances around loading/unloading. This is done by loosening the assembly bolts(see drawing, Chapter 1), do not remove the bolts. Adjust the angle using the setscrews. Tighten the bolts/nuts. 4 Safety The operator should use personal safety equipment (e.g. -
Page 8: Troubleshooting
Make sure the spring moving the expander block is in place and works properly. Other troubles – see the manual for your Lift&Drive trolley. If the attachment is faulty or damaged please contact your dealer or Pronomic AB. 5.4 Spare parts List of relevant spare parts... -
Page 9: Technical Data
For additional technical data see the manual for your Lift&Drive trolley. Noise level Noise level not exceeding 70 dB(A) Vibrations Vibrations level not exceeding 2,5 m/s Questions? - Please contact your supplier or Pronomic AB ________________________________________________________________________________ 6 – Expand&Turn - Light 17940... -
Page 10: Approved Attachments For Lift&Drive Trolleys
7 Approved attachments for Lift&Drive trolleys 17940 Expand&Turn Light 15012 15013 15014 15015 15016 15017 15018 15019 15024 15080 15322 15324 15338 15339 16020 16038 16338 17182A 17229 17230 17230A 17233 17241 17710 17720 17730 17740 17940 17950 17971 17972 19174 ________________________________________________________________________________ 7 –... -
Page 11: Ec Declaration Of Conformity For Partial Machinery
Pronomic AB Box 5504 192 05 Sollentuna Model designation Expand&Turn Light 17940 Serial number Authorized to compile the Samuel Pierre, Pronomic AB, BOX 5504, 192 05 Sollentuna technical file Applied directives: 2006/42/EC Machinery Directive 2014/30/EU EMC Directive Applied standards: Safety of machinery –... - Page 12 Distributed by:...
