CLIMASET
Interactive Controllers
Copyright © 2005 Climaset. All rights reserved.
PDX
11A / 21A /11B
To be used with:
Packaged air conditioning units
-Independent control of fan and compressor
-Can be used for either hot water
heating systems
-Single or double stages of compressor
-Simultaneous
indication
temperature
-Animated screen
-Bilingual
®
series
or heat pump
of
room
&
desired
Advertisement
Table of Contents
Related Manuals for CLIMASET PDX Series
Summary of Contents for CLIMASET PDX Series
- Page 1 CLIMASET Interactive Controllers Climaset is under continuous development. There is no warranty about accuracy and reliability of the contents of this document. Both the described products and document contents may be changed or withdrawn without any previous notice. There is no responsibility for any damages or loss, even indirectly, howsoever caused.
- Page 2 User’s Guide...
-
Page 3: Table Of Contents
CLIMASET Contents 1. Your Climaset............................4 1.1. Keys..............................4 1.2. Screen elements ..........................4 2. Using the menu ............................5 2.1. Accessing a menu function ........................ 5 2.2. List of menu functions........................5 3. Menu functions ............................5 3.1. Fan status (Menu item 1) ........................5 3.2. -

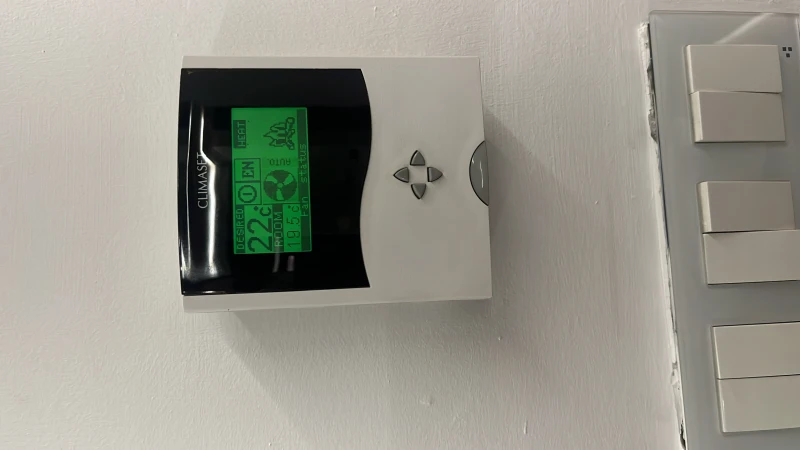

Page 4: Your Climaset

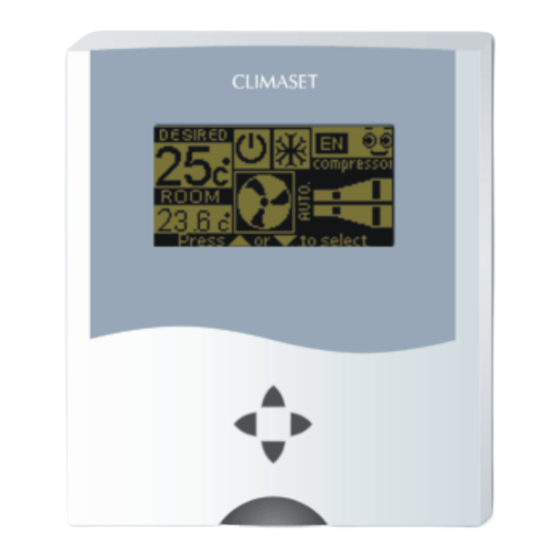

CLIMASET 1. Your Climaset Climaset PDX series are designed to work in conjunction with packaged air conditioning units to maintain the room air condition at the comfort level. It has the following functions: 1. Measurement of room temperature. 2. Interaction with user to adjust set points. -
Page 5: Using The Menu
Note: You may order PDX series for heating with hot water coil instead of compressor (heat pump). In such a case the compressor is enforced to be off during winter. -
Page 6: Compressor On/Off (Menu Item 3)
CLIMASET the result appears on the desired temperature section of the screen (Refer to section 1.2 to find the "Desired temperature" on the screen). Note: If you set a value much lower than 24°c in summer or much higher in winter, it may cause your air conditioning device to work continuously. -
Page 7: Installation Guide
CLIMASET 4. Installation guide 4.1. Mounting the wall mounted unit Position the mounting plate on the wall. Level the mounting plate. Use a pencil to mark the mounting holes. Remove the plate from the wall and drill 3/16" holes in wall. Tap anchors into drilled holes. Reposition the plate and loosely insert two mounting screws into the holes. -
Page 8: Wall Mounted Unit Connectors
• Different categories of output voltage are available for PDX series. Please confirm with your dealer for proper output voltage which is suitable for your air conditioner device. -
Page 9: Wiring Diagram
2. Climaset is designed to be used for residential comfort. Do not store it in hot or cold areas. Also it should not be stored in dirty or dusty environment. 3. Do not attempt to open any part of the Climaset. There is no part inside which you can service it. Ask your local dealer for services, if necessary. -
Page 10: Specifications
CLIMASET 6. Specifications...
