Climaset is under continuous development. There is no warranty about accuracy and reliability of the contents of
this document. Both the described products and document contents may be changed or withdrawn without any
previous notice. There is no responsibility for any damages or loss, even indirectly, howsoever caused.

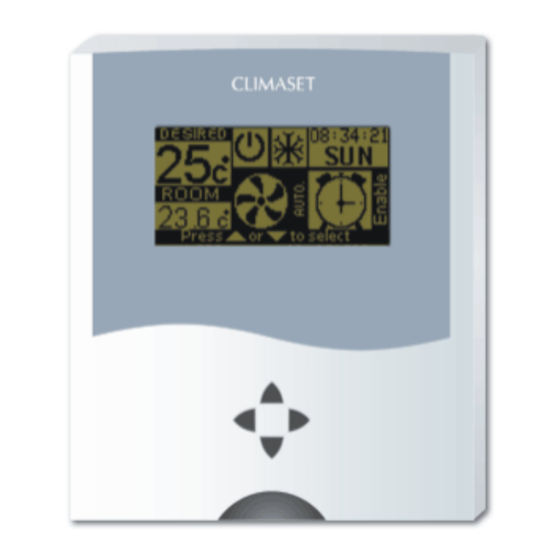

CLIMASET
Interactive Controllers
Copyright © 2005 Climaset. All rights reserved.
FP
series
3 / 3x / 3-ir / 3x-ir
To be used with:
Horizontal room fan coils /
Ducted fan coils
- 7 days programmable
- 3-speed fan control
- Simultaneous indication of
room & desired temperature
- Animated screen
- Bilingual
®
Advertisement
Table of Contents
Related Manuals for CLIMASET FP Series
Summary of Contents for CLIMASET FP Series
- Page 1 CLIMASET Interactive Controllers Climaset is under continuous development. There is no warranty about accuracy and reliability of the contents of this document. Both the described products and document contents may be changed or withdrawn without any previous notice. There is no responsibility for any damages or loss, even indirectly, howsoever caused.
- Page 2 User’s Guide...
-
Page 3: Table Of Contents
CLIMASET Contents 1. Your Climaset............................4 2. Wall mounted unit ............................ 4 2.1. Keys and infrared sensor ........................4 2.2. Screen elements ..........................5 2.3. Using the menu in primary screen ..................... 6 2.4. To set the schedule program ......................8 3. -
Page 4: Your Climaset
CLIMASET 1. Your Climaset Climaset FP 3/3-ir/3x/3x-ir state of the art series are designed to work in conjunction with horizontal room fan coils / ducted fan coils to achieve the maximum energy saving while the room temperature maintains at comfort level whenever necessary. Each of the mentioned models consists of a wall mounted unit. Also a remote control option is available for 3-ir/3x-ir. -
Page 5: Screen Elements
CLIMASET 2.2. Screen elements 2.2.1. Primary screen elements Room temperature: Indicates the current room temperature. Desired temperature: Your desired room temperature. Power status: Air conditioner apparatus is on. Air conditioner apparatus is off. Season setting: The device is adjusted to work in summer. -
Page 6: Using The Menu In Primary Screen
CLIMASET 2.2.2. Schedule settings screen "Title bar": This row represents the titles of the days of the week. "Wake up": It represents the wake up time in hours. The air conditioner starts working at this time. "Leave": It indicates the leave time in hours. It is the time when every one in the house leaves to work. The air conditioner shuts down automatically at this time. - Page 7 CLIMASET pressing the "Left" key in "Fan speed" menu, which cause the device to return to the maximum fan speed again. Desired temperature (Menu item 2) It is the temperature which you like to maintain your room. The standard set point for comfort condition in the residential zones is 24°c, but you can set a higher or lower temperature, if you wish.
-
Page 8: To Set The Schedule Program
FP series are provided with four time periods for each day, including wake up, leave, return and sleep periods. The schedule settings screen consists of two main sections, the upper part is the schedule itself, the last three rows of the screen contributes the command section. -
Page 9: Remote Controller Unit (Fp 3-Ir / 3X-Ir Only)
CLIMASET "Sleep": It is the time in hours you go to sleep and you like to eliminate air conditioner noises by shutting it down. Press the "Right" key to increase the value up to 24 o'clock or "Left" key to decrease it till the "Return"... -
Page 10: Keys
CLIMASET Replace the battery cover by inserting the prong into the slot at the bottom of the battery compartment and then pushing the cover until the latch snaps closed. Press the "Wake up" key (Refer to section 3.2 for the "Wake up" key). The "Stand by" screen appears and the remote controller is functional (Refer to section 3.3.1 for "Stand by"... -
Page 11: Screen Elements
CLIMASET 3.3. Screen elements 3.3.1. Stand by screen Desired temperature: Your desired room temperature. Power status: Air conditioner apparatus is on. Air conditioner apparatus is off. Fan speed: It represents the adjusted fan speed. Use "Left" key to decrease the fan speed or "Right" key to increase it. -
Page 12: Installation Guide
CLIMASET "Auto cleared" (FP 3x/3x-ir only): Automatic (Smooth approach) mode has been cleared after pressing the "Left" key when the device was in automatic mode. "Not allowed": The message appears if you try to set the desired temperature above 31°c or below 16°c or by pressing "Right"... -
Page 13: Wall Mounted Unit Connectors
CLIMASET 4.4. Wall mounted unit connectors 4.5. Wiring diagram Please refer to sketch below for the wirings. -
Page 14: Care And Maintenance
3. Climaset is designed to be used for residential comfort. Do not store it in hot or cold areas. Also it should not be stored in dirty or dusty environment. 4. Do not attempt to open any part of the Climaset. There is no part inside which you can service it. Ask your local dealer for services, if necessary.
