Instruction manual
Temperature transducers
AR550
AR580
AR581
Version 3.0.3
2017.04.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR550 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for APAR AR550

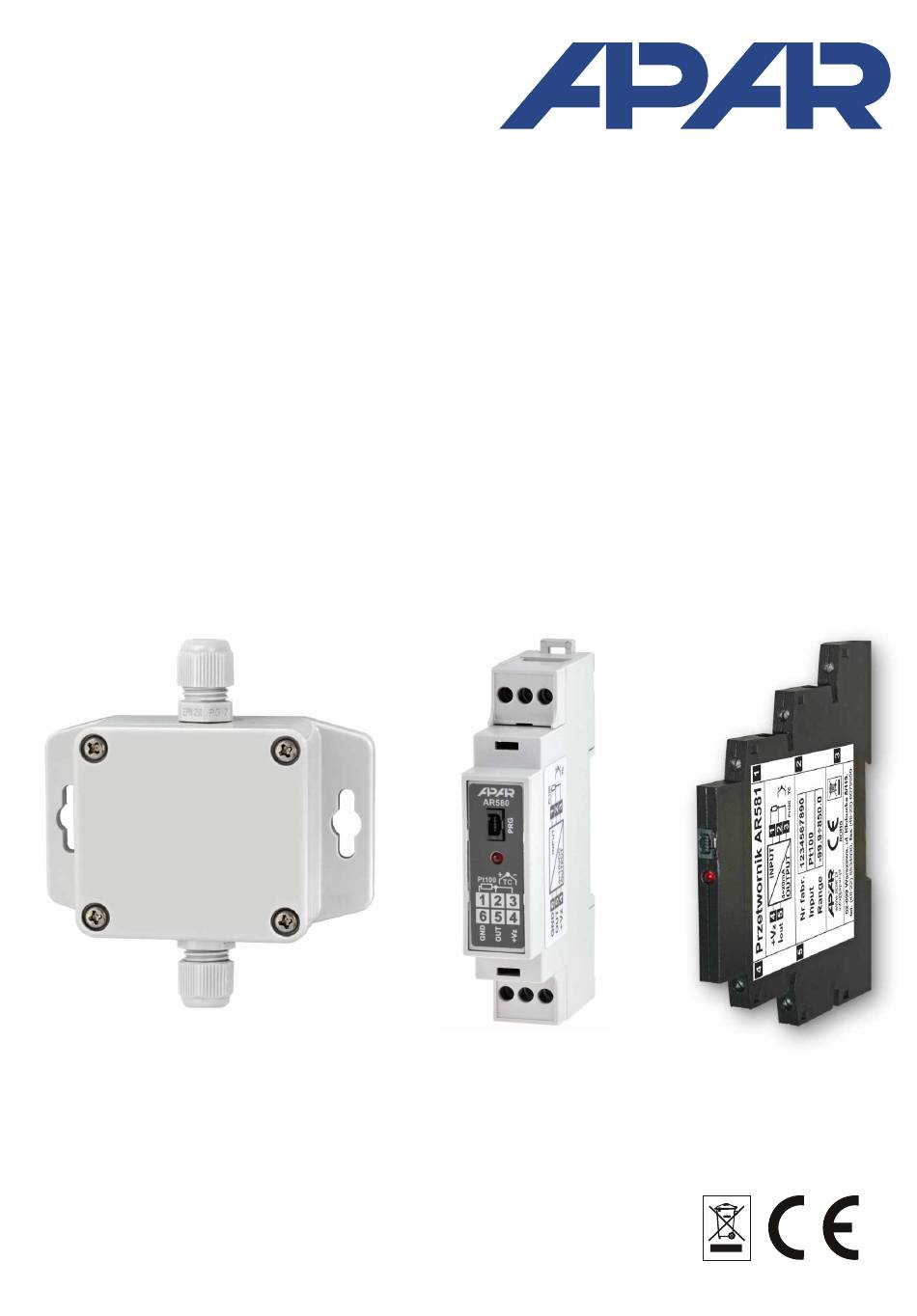

  • Page 1 Instruction manual Temperature transducers AR550 AR580 AR581 Version 3.0.3 2017.04.05...
  • Page 2 Thank you for choosing our product. This manual will facilitate proper operation, safe use and full utilization of this device. Thoroughly read and understand this instruction manual before commencing installation and start-up. Should you have any additional questions, feel free to contact our technical advisers. TABLE OF CONTENTS 1.
  • Page 3 581 - current output only housing - AR580, AR581 - for installing on a TS35 bar (DIN bar) - AR550 - industrial IP65, 94x58x35 mm processing range, input type and other parameters configured using the AR950 programmer or the AR956 programming set...
  • Page 4 Factory setting ..............see Chapter 8, Table 1 CAUTION - programmable parameters can be configured with the AR950 programmer or the AR956 programming set - programming port in AR550 can be accessed after the face cover is removed - 4 -...
  • Page 5 AR581 - GUIDEBOX COMPACT ..6,2x76,9x99,1 mm Installation on bar ......TS35 (DIN EN 50022-35) AR580 Connecting loads and supply ..screw terminals AR550 (figure in Chapter 7) Dimensions ........94x58x35mm Material ..........policarbonate, IP65 Mounting holes ........ 2 holes Φ9mm or 2 clamps <5mm,...
  • Page 6 8. PROGRAMMING CONFIGURATION PARAMETERS All the configuration parameters of the device are stored in the non-volatile internal memory. When the device is switched on for the first time, an error may occur due to the lack of a sensor or the fact that the sensor that is connected is not one that is factory-programmed.
  • Page 7 Table 1. Configuration parameters Settings No Name Parameter description Parameter value and change range factory user input type RTD = Pt100 (sensor) = J, 2 = K, 3 = S, 4 = E, 5 Pt100 Thermocouples filtration level ÷ 1 = 0,9s indication resolution = 1°C,...
  • Page 8 12. TRANSDUCER CONNECTION METHODS 12.1. Connecting the sensor, power supply and output of a 2-cable transducer (transducer supplied from the instrument) - Pt100 temperature sensor connected to terminals 1, 2 and 3, thermocouples to terminals 2 and 3 - supply cable to terminal +Vs (4) - instrument current or voltage input cable to terminal OUT (5) sensor Supply output +24V...
