APAR AR553 User Instruction

Temperature transducer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
APAR - Sales Office
05-090 Raszyn, ul. Gałczyńskiego 6
Tel. (+48) 22-101-27-31, 22-853-48-56, 22-853-49-30
fax (+48) 22-101-27-33
Internet: www.apar.pl, email:
automatyka@apar.pl
USER INSTRUCTION
version
version

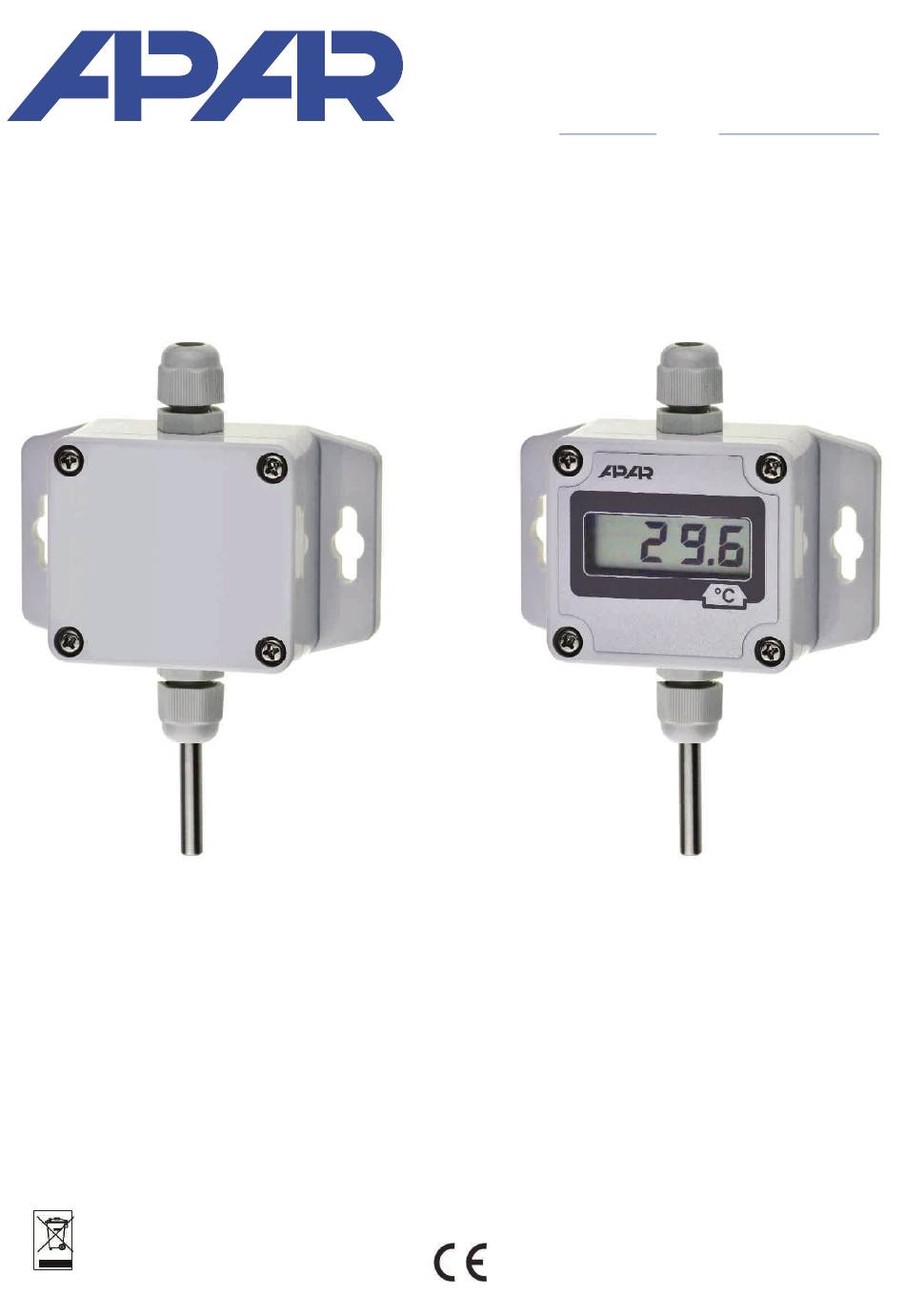

without a display
with an LCD display
TEMPERATURE TRANSDUCER
AR553
Version 3.0.0
2017.04.28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR553 and is the answer not in the manual?

Questions and answers

Related Manuals for APAR AR553

Summary of Contents for APAR AR553

  • Page 1 APAR - Sales Office 05-090 Raszyn, ul. Gałczyńskiego 6 Tel. (+48) 22-101-27-31, 22-853-48-56, 22-853-49-30 fax (+48) 22-101-27-33 Internet: www.apar.pl, email: automatyka@apar.pl USER INSTRUCTION version version without a display with an LCD display TEMPERATURE TRANSDUCER AR553 Version 3.0.0 2017.04.28...

  • Page 2: Table Of Contents

    Thank you for choosing our product. This instruction is intended to facilitate correct operation, safe use, and taking full advantage of the device’s functionalities. Before you start the device, please read and understand this instruction. In the event of any additional questions, please contact our technical adviser. CONTENTS 1.

  • Page 3: Safety Principles

    1. SAFETY PRINCIPLES before you start to use the device, become familiar with the present instructions; in order to avoid electrocution or damage to the device, its mechanical and electrical installation must be performed by qualified workers; before switching on the power supply, make sure that all cables and wires are properly connected; before making any modifications to the wire and cable connections, switch off the voltage supplied to the device;...

  • Page 4: Contents Of The Set

    NOTE: - before you start working with the device, become familiar with this user instruction and make sure the electrical and mechanical systems have been made properly and the correct parameters have been set; - if the parameters of the transducer have been set using the AR956 programmer, the ARsoft-CFG software must be configured properly.

  • Page 5: Enclosure Dimensions And Installation Data

    An external probe with a wire b.2.) A probe on a stainless steel pipe b.3) An external probe AR553/2 AR553/L150 or AR553/L250 in an enclosure with a wire AR553/3 b.4) A probe integrated with the enclosure in the back...

  • Page 6: Description Of Terminal Strips And Electrical Connections

    CAUTION: In order to avoid any mechanical and electrostatic damage, one must be very careful when handling the circuit board of the display. 7. DESCRIPTION OF TERMINAL STRIPS AND ELECTRICAL CONNECTIONS Table 7.1. Numbering and description of terminal strips - the version with the current output Terminals Description current output (I =4÷20 mA) for the measured...

  • Page 7: Functions Of The Buttons On The Control Panel

    8. FUNCTIONS OF THE BUTTONS ON THE CONTROL PANEL Fig. 8. Description of the control panel a 7-segment LCD display programming buttons a) button functions in the measurement display mode Button Description [and marking in the contents of the instructions] [UP] and [DOWN] (simultaneously): input in the parameter configuration menu (after hold time longer than 1 s), chapter 9 b) button functions in the parameter configuration menu (chapter 9)
  • Page 8 − to change the value of the current parameter, press briefly the [SET] button (the parameter blinks in the edition mode) − use buttons [UP] or [DOWN] to change the value of the edited parameter; − approve the changed value of the parameter by pressing the [SET] button or cancel it by pressing the [UP] and [DOWN] buttons (briefly press them simultaneously) - by pressing the [UP] and [DOWN] buttons again, you will return to the main configuration menu (one level above) −...

  • Page 9: Messages And Error Signaling

    = 2,400 bit/s, MODBUS address = 1. The following application is available (on a CD supplied with the AR956 programmer or to be downloaded from the Internet at www.apar.pl, “Download” section, for operating systems Windows Vista/7/8/10): Name Software description...

  • Page 10: Rs485 Communication Interface (Acc. To Eia Rs-485)

    12. RS485 COMMUNICATION INTERFACE (acc. to EIA RS-485) The installation specification for the RS485- standard interface is the following: - maximum cable length - 1 km (observe the installation guidelines, chapter 2, sub-items b, c, and d) - maximum number of devices in a RS485 line - 30, in order to increase the number, use RS485/RS/485 amplifiers - termination and polarizing resistors when the MASTER is at the start of the line (Fig.
  • Page 11 Table 13.3. Response frame format for the READ function (minimum frame length - 7 bytes): number of bytes in the address of function data field (max. 4*2=8 data field - register value CRC check sum the device 4 or 3 bytes) 1 byte 1 byte...

  • Page 12: User's Notes
