1
STORAGE TANK UNIT
INSTALLATION
1.1 INSTALLATION
RECOMMENDATIONS.
Only professionally enabled companies are au-
thorised to install Immergas appliances.
Installation must be carried out according to the
Standards, current legislation and in compliance
with local technical regulations and the required
technical procedures.
Before installing the appliance, ensure that it is
delivered in perfect condition; if in doubt, contact
the supplier immediately. Packing materials
(staples, nails, plastic bags, polystyrene foam,
etc.) constitute a hazard and must be kept out of
the reach of children.

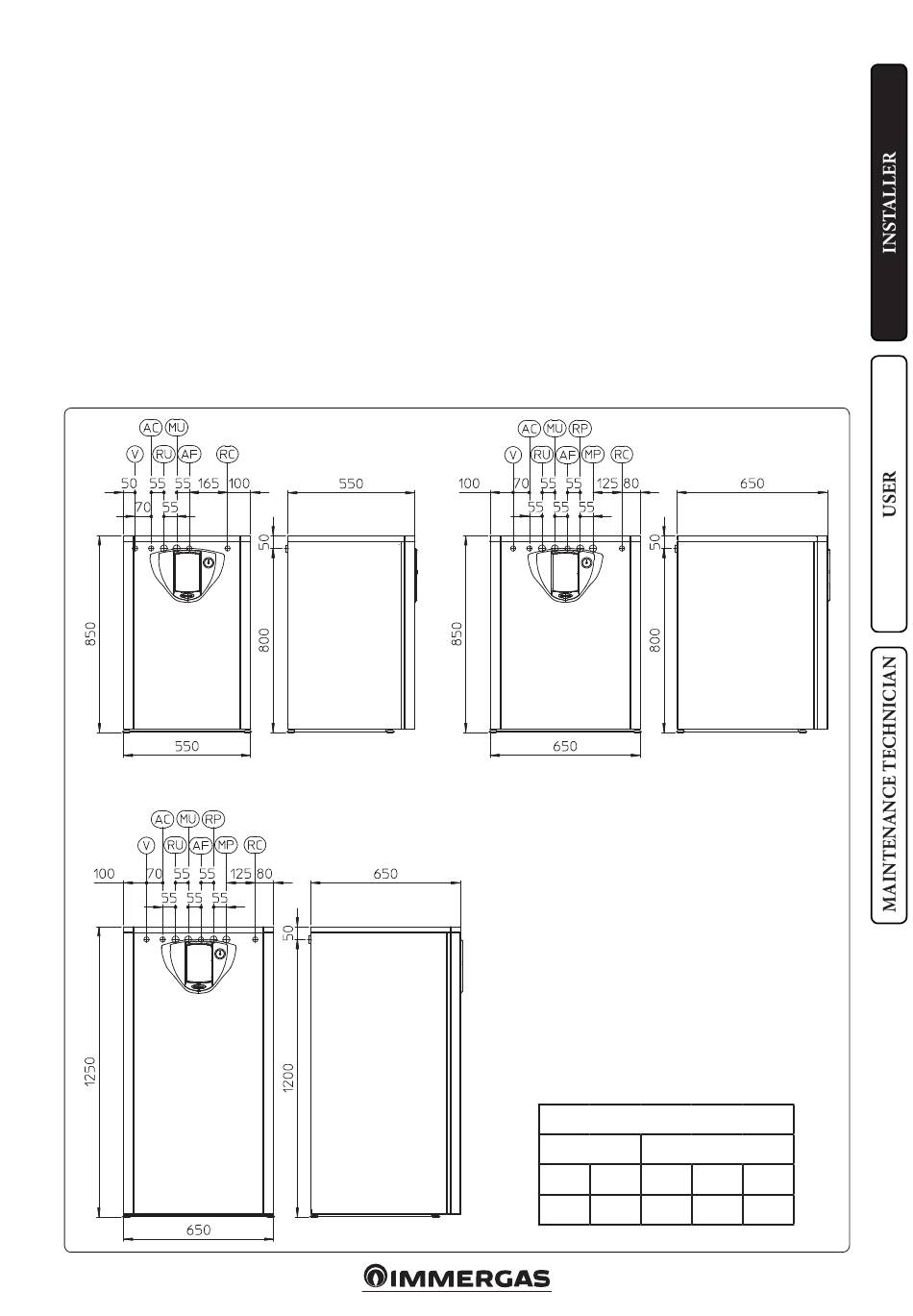

1.2 MAIN DIMENSIONS.
1-1
If the appliance is installed inside or between
cabinets, ensure sufficient space for normal
servicing; therefore it is advisable to leave a gap
of 2÷3 cm between the storage tank casing and
the sides of the cabinet.
In the event of a malfunction, fault or incorrect
-operation, disable the storage tank unit and
contact an authorised company (e.g. the
Authorised Technical Assistance centre, which
has specifically trained staff and original spare
parts). Do not attempt to modify or repair the
appliance alone.
Failure to comply with the above implies personal
liability and invalidates the warranty.
• Installation Standards: These storage tanks
have been designed for floor installation; they
must be used for the storage of domestic hot
water and similar purposes. They have not be
designed for wall-installation.
80 litre stainless steel storage tank unit
200 litre stainless steel storage tank unit
Important: these units are used to store water at
a temperature below boiling point at atmospheric
pressure. They must be connected to a boiler and
to a DHW water distribution network. They must
be installed in rooms where the temperature
cannot fall below 0°C and must not be exposed
to atmospheric agents.
Key:
V - Electrical connection
AC - Domestic hot water outlet
AF - Domestic hot water inlet
RU - Return from storage tank unit
MU - Flow to storage tank unit
RP - Return to solar panels (Optional)
MP - Flow from solar panels (Optional)
RC - Domestic hot water pump (Optional)
SYSTEM
MU-RU
MP-RP
3/4"
3/4"
5
120 litre stainless steel storage tank unit
CONNECTIONS
DOMESTIC HOT WATER
AF
AC
RC
3/4"
3/4"
1/2"
