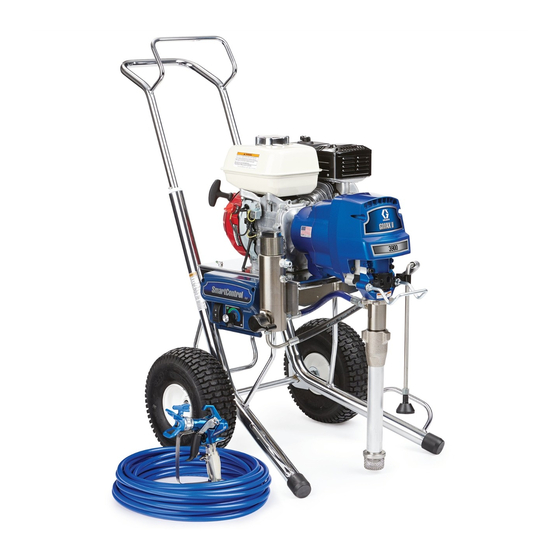

Graco GMAX 3400 Instructions Manual
Engine for airless sprayers
Hide thumbs
Also See for GMAX 3400:
- Operation (46 pages) ,
- Brochure & specs (27 pages) ,
- Repair manual (26 pages)
Table of Contents
Advertisement
Quick Links
Instructions
Kohler Engine Models for GMAX
™
GMAX
II 3900/5900/7900, and TexSpray
5900HD/7900HD Airless Sprayers
Provides instruction for engine removal and installation of select Kohler engines from
select Graco contractor products. Also provides product label location information, model
cross references, and unique replacement part numbers for Kohler engine configurations.
Not for use with other engines or other Graco products.
3300 psi (22.8 MPa, 228 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this manual, the gas engine manual, and related
manuals before using the equipment. Be familiar with the controls and the proper usage
of the equipment. Save these instructions.
Use the following related manuals for operating
the sprayer and replacing parts on sprayers with
Kohler engines.
Related Manuals:
Operation
Parts
Kohler Engine Manuals
Kohler
Model
Standard
GMAX 3400
17E825K
GMAX II 3900
17E827K
GMAX II 5900
17E831K
GMAX II 7900
17E836K
TexSpray 5900HD
17E839K
TexSpray 7900HD
17E841K
Manuals in English:
3A6400
3A6417
Kohler EMEA
17E825KE
17E827KE
17E831KE
17E836KE
17E839KE
17E841KE
™
3400,
3A9018A
EN
Advertisement
Table of Contents
Related Manuals for Graco GMAX 3400
Summary of Contents for Graco GMAX 3400
- Page 1 5900HD/7900HD Airless Sprayers Provides instruction for engine removal and installation of select Kohler engines from select Graco contractor products. Also provides product label location information, model cross references, and unique replacement part numbers for Kohler engine configurations. Not for use with other engines or other Graco products.
- Page 2 Warning Warning The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
- Page 3 Check hoses and parts for signs of damage. Replace any damaged hoses or parts. • This system is capable of producing 3300 psi (228 bar, 22.8 MPa). Use Graco parts or accessories that are rated a minimum of 3300 psi (228 bar, 22.8 MPa).
- Page 4 Warning WARNING PRESSURIZED ALUMINUM PARTS HAZARD Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage. • Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents.
- Page 5 Warning Engine Removal and Installation 4. Remove clutch assembly and housing. Refer to Pinion Assembly/Clutch Armature/Clamp section in manual 3A6400. 1. Allow sprayer to cool and follow Pressure Relief Procedure in primary operation manual (3A6400). 2. Unplug wires from control box. 5.
- Page 6 Label Location Drawing Label Location Drawing 3A9018A...
- Page 7 Parts Lists Parts Lists NOTE: Refer to manual 3A6417 for complete parts list. New parts are in bold for the models listed below. Ref Part Description Ref Part Description 17Z429 LABEL, safety, warning 25U439 ENGINE, gas, 5.5 HP, Kohler 17E827K GMAX, 3900, std series 17E825K...
- Page 8 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
