Summary of Contents for Wolverine Airsoft INFERNO GEN 2
- Page 1 OWNER’S MANUAL WOLVERINE AIRSOFT www.wolverineairsoft.com...
- Page 2 Page 2 Welcome to the Wolverine Airsoft HPA Family! Your INFERNO HPA engine kit comes with follow- ing contents in the package. Please ensure that all components of the package are present and undamaged. All packages contain: INFERNO HPA Engine...
- Page 3 Page 3 Important Safety Information This product is not a toy. Adult supervision is re- quired. This product is intended for use by those 18 years of age or older. Misuse or careless use of airsoft guns may cause serious injury, espe- cially to the eye(s), or death.
-
Page 4: Table Of Contents
Installation Tuning Maintenance Troubleshooting Don’t Forget to Register Your Warranty! Your INFERNO HPA Engine is backed by Wolverine Airsoft’s limited warranty. Scan the QR code or visit www.wolverineair- soft.com/warranty to read our full warranty and register your INFERNO HPA engine. -
Page 5: Getting Started

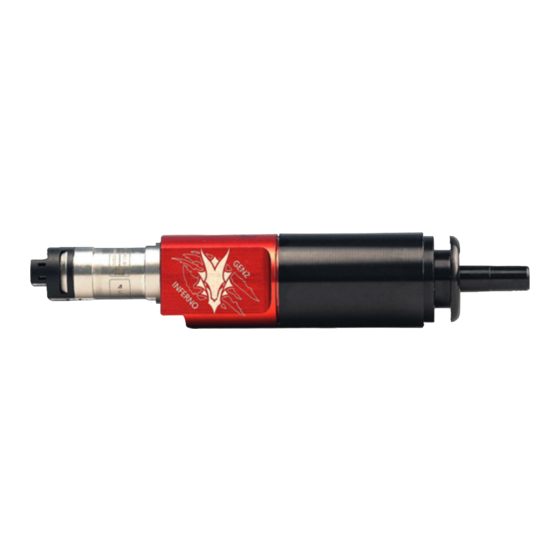

Page 5 Getting Started Your INFERNO HPA engine is a precise instru- ment containing many individual components. Before you begin, please see the diagram below and familiarize yourself with each component. Valve Spring Nozzle Baffle Cylinder Solenoid Housing 1x13 1.5x18 1x13 1x13 1x10.5... -
Page 6: Nozzle Replacement
Page 6 Nozzle Replacement Our standard INFERNO HPA kits come standard nozzles that fit most replicas. However, your replica may require a different nozzle to be installed. (Please see our Compatibility Guide at www.wolverineairsoft.com/com- patibility). You can easily change the nozzle by first remov- ing the cylinder and then the baffle. -
Page 7: Tuning
Page 7 Tuning Tuning refers to the process of electronically adjusting the engine’s dwell for maximum perfor- mance and efficient air usage. Dwell is a measurement of the length of time that the solenoid valve is opened, allowing air to flow from the air tank to propel the BB. For maximum efficiency the dwell time must be set precisely to provide just enough air to carry the BB to the end of the barrel. -
Page 8: Maintenance
Page 8 Maintenance Regular maintenance on the INFERNO HPA en- gine should be performed every 25-50k rounds depending on the conditions it is being used in. The dustier and dirtier the conditions, the more frequently it should be serviced. Items needed: - O-ring compatible lubricant. - Page 9 Page 9 Next slide the baffle off of the nozzle/poppet assembly and pull out the spring. Lubricate the 1.5mm x 16mm O-ring located below the threads and the 1mm x 13mm O-ring located above the threads. Lubricate the 1mm x 13mm O-ring around the poppet base.
- Page 10 Page 10 Next, place the spring into the back of the nozzle as indicated. Finally, align the spring with the cup on the valve body and push the valve body into the cylinder. Screw the two halves of the unit back together clockwise. For solenoid maintenance, please refer to our separate Solenoid Maintenance Guide available at www.wolverineairsoft.com/documentation.
-
Page 11: Troubleshooting
Troubleshooting Symptom Possible Solution Gun always fires in semi The selector plate is not engaging the se- regardless of selector lector switch and will need material added switch position to permit proper operation. Contact WA or a qualified technician for assistance. -The burst setting is set to semi-auto Gun always fires in burst -The selector plate is always engaging... - Page 12 Need professional help? To find a retailer close to you visit: www.wolverineairsoft.com/dealers www.wolverineairsoft.com...
