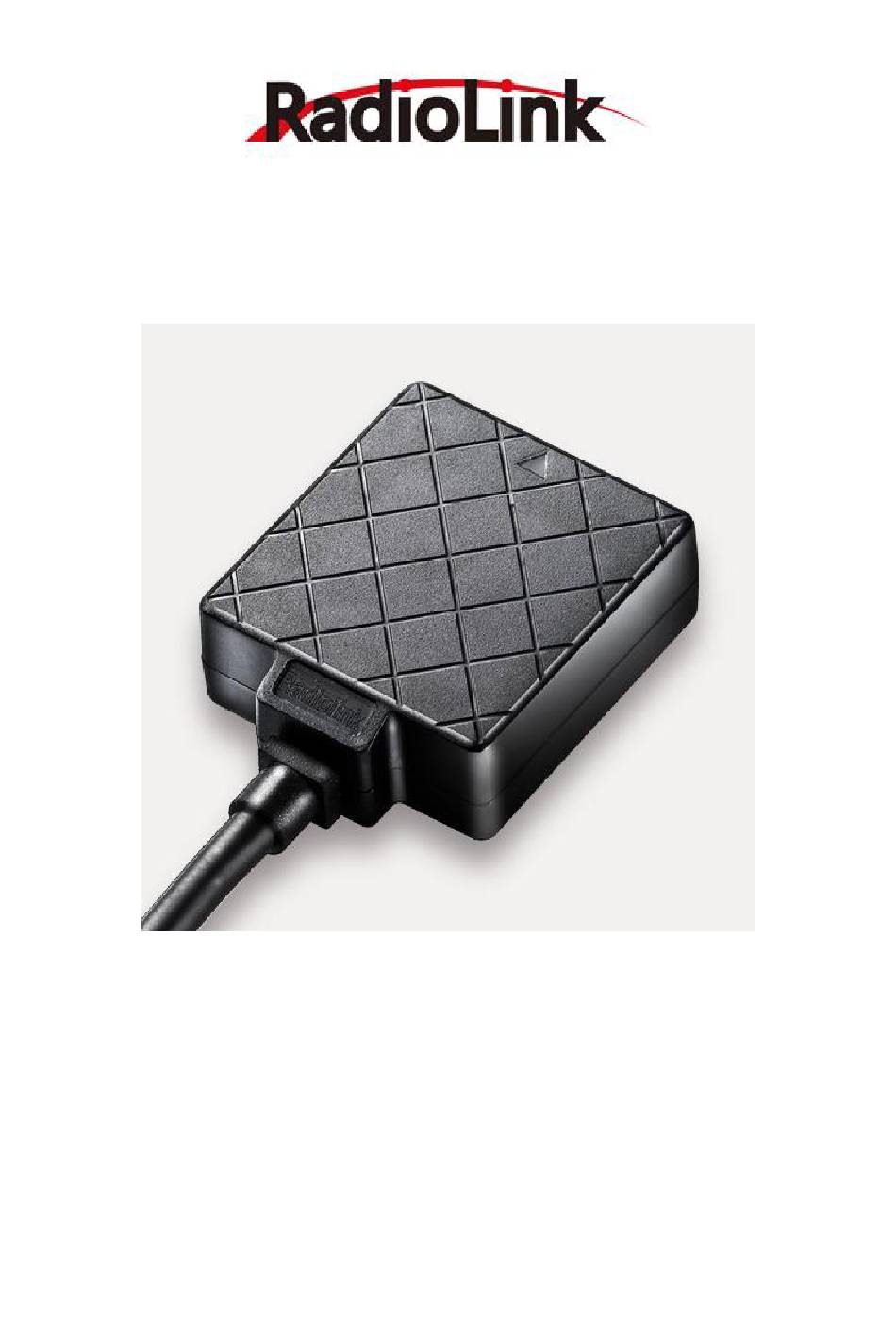

- Page 1 Radiolink TS100 (MINI M8N GPS) User Manual Compatible with APM and PIXHAWK...
- Page 2 More information please check our website as below: http://www.radiolink.com Support and Service: It is recommended to have your Radiolink equipment serviced annually during your hobby’s “off season” to ensure safe operation. Please be sure to regularly visit the Service and Support website at www.radiolink.com. This page includes extensive programming, use, set up and safety information.
- Page 3 TS100 Radiolink MINI M8N GPS TS100, benefits from 15 years of professional wireless experiences of Radiolink engineers, exceed the limitation of IC sensitivity index from circuit schematic design to PCB placement. 50 centimeter position accuracy. Positioning 20 satellites in 6 seconds at open ground. Valley station-keeping ability.
- Page 4 Definition of Connector Connect to flight controller: Black wire-GND, Yellow wire-SDA, Green wire-SCL, Blue wire-RX, White wire-TX, Red wire-VCC GPS Mainboard : White wire-RX, Blue wire-TX, Red wire-VCC, Black wire-GND, Green wire-SCL, Yellow wire-SDA TS100 Connect to Mini Pix...
- Page 5 Compass calibrate Positioning Indicate Please use Mission Planner Arrows shows the front, point to the Humanized positioning green LED indicate. same direction as the flight controller. The green LED will flicker when TS100 have Keep the same direction with flight controller. positioning.
- Page 6 Calibrate like this picture shows, click Done to finished the calibrate. Click OK to save the settings. ＜600， please try to cancel Compass #1 or Compass #2.
