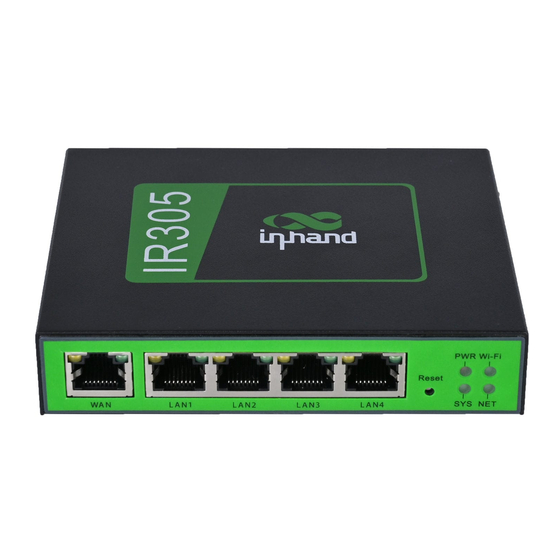

- Page 1 InHand IR305 LTE Router Quick Installation Manual V1.0—2021.8...
-
Page 2: Table Of Contents
5.1 Restore to Factory Setting ........................ 7 5.1.1 Web Setting ..........................7 5.1.2 Hardware Restore ........................7 5.2 Import/Export Configuration ......................8 5.3 Log and Diagnose Record ........................ 8 5.4 Connect to InHand platform ......................8 6 Description of Indicator ..........................9... -
Page 3: Overview
Overview This manual is a guide for the installation and operation of IR305 routers from InHand Networks. Please confirm the product model and packaging accessories (power terminal, antenna), and purchase SIM cards from local network operators All statements, information and recommendations in this manual do not constitute any expressed or implied warranty. -
Page 4: Panel Introduction
● Check for cables and connectors required for installation. 3.1 SIM card Installation IR305 supports dual nano SIM card. Stick Stab the hole on the left of the SIM card slot to eject it. Then insert SIM card. 3.2 Antenna Installation Rotate the metal interface clockwise until the movable part cannot be rotated, do not hold the black glue stick to twist the antenna. -
Page 5: Wired To Internet
4.1 Wired to Internet Step 1: Connect power and Ethernet cable to IR305, connect WAN/LAN1 port to public network, and one of LAN to PC. Step 2: Configure PC to be in the same network segment as the IP address of the router. - Page 6 Step 4: Create a WAN port in “Network >> WAN” in the left menu. Configure an IP address for WAN port and let the router connect to Internet. There are there methods to obtain IP address: Dynamic DHCP (recommend). Static IP (Click Apply &...
-
Page 7: Sim Card Dialup
Obtain IP address by ADSL Dialup Step 5: Check the connectivity in “Tools >> PING”. 4.2 SIM Card Dialup Step 1: Insert the SIM card when device is power off. Connect 4G antenna to the router, and connect PC to router. Then power on. Note: When insert or plug out SIM card, please unplug the power cable to prevent data loss or damage the router. -
Page 8: Wi-Fi To Internet
AP mode (default mode): IR305 acts as an accsess point to radiate wireless signals, and other terminal devices can connect this device to access the Internet. It is necessary to ensure that IR305 itself has been connected to the Internet through wired or cellular. AP mode supports setting SSID name and encryption authentication mode, and terminal devices will need to input password when connecting. -
Page 9: Quick-Use Guidance
1. Select WLAN Type to STA in “Network>>Switch WLAN Mode” and save. Then reboot the router. 2. Click “Scan” to scan available AP in “Network>>WLAN Client”, and click Connect to choose one of AP. 3. Configure Wi-Fi parameters and save. Then check the connection status in “Status”. 4. -
Page 10: Import/Export Configuration
5.4 Connect to InHand platform Make sure that router has already connect to Internet. Click "Service>>Device Manager" to set router to connect to DM. iot.inhand.com.cn is the server for China, and iot.inhandnetworks.com is the server for global. Fill in your DM account in Registered Account then click "Apply" to save the configuration. -
Page 11: Description Of Indicator
6 Description of Indicator ER305 LED Status Red off --- Power off Steady in red --- Power on Green off --- System error Blink in Green --- System upgrading Steady in Green --- System working Green off --- Wi-Fi disable Wi-Fi Blink in Green --- Wi-Fi connecting Steady in Green --- Wi-Fi working...
