MAXIMUM Security CURTAIN-Versatile Operating Manual

Ceiling or wall mount outdoor/indoor intrusion detector with curtain field-of-view two pir sensors + microwave sensor + anti-masking + waterproof.
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

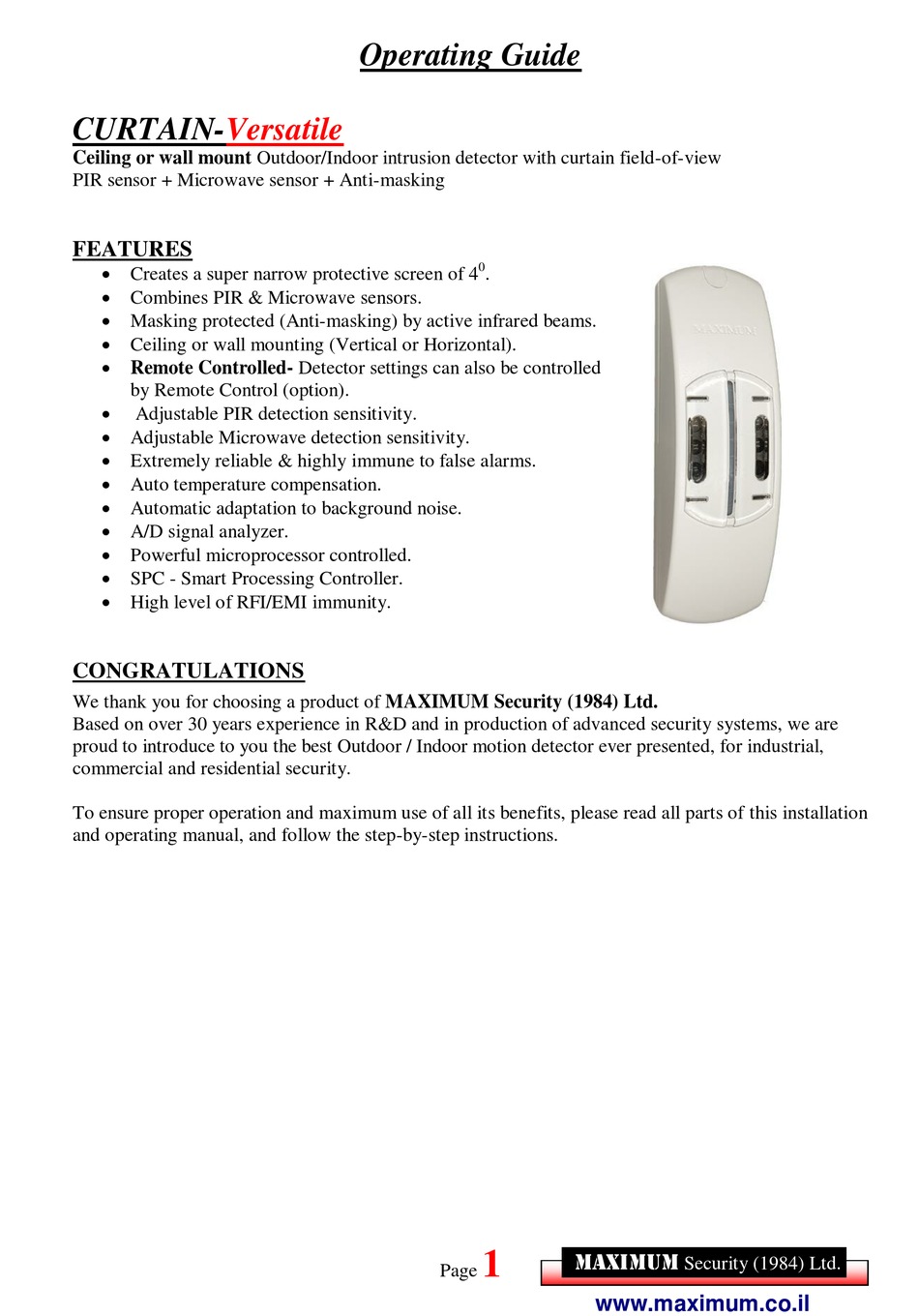

CURTAIN-Versatile
Ceiling or wall mount Outdoor/Indoor intrusion detector with curtain field-of-view
PIR sensor + Microwave sensor + Anti-masking

FEATURES

 Creates a super narrow protective screen of 4
 Combines PIR & Microwave sensors.
 Masking protected (Anti-masking) by active infrared beams.
 Ceiling or wall mounting (Vertical or Horizontal).
 Remote Controlled- Detector settings can also be controlled
by Remote Control (option).
Adjustable PIR detection sensitivity.
 Adjustable Microwave detection sensitivity.
 Extremely reliable & highly immune to false alarms.
 Auto temperature compensation.
 Automatic adaptation to background noise.
 A/D signal analyzer.
 Powerful microprocessor controlled.
 SPC - Smart Processing Controller.
 High level of RFI/EMI immunity.
CONGRATULATIONS
We thank you for choosing a product of MAXIMUM Security (1984) Ltd.
Based on over 30 years experience in R&D and in production of advanced security systems, we are
proud to introduce to you the best Outdoor / Indoor motion detector ever presented, for industrial,
commercial and residential security.
To ensure proper operation and maximum use of all its benefits, please read all parts of this installation
and operating manual, and follow the step-by-step instructions.
Operating Guide
0
.
1
Page
MAXIMUM
Security (1984) Ltd.
www.maximum.co.il

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CURTAIN-Versatile and is the answer not in the manual?

Questions and answers

Related Manuals for MAXIMUM Security CURTAIN-Versatile

Summary of Contents for MAXIMUM Security CURTAIN-Versatile

  • Page 1  High level of RFI/EMI immunity. CONGRATULATIONS We thank you for choosing a product of MAXIMUM Security (1984) Ltd. Based on over 30 years experience in R&D and in production of advanced security systems, we are proud to introduce to you the best Outdoor / Indoor motion detector ever presented, for industrial, commercial and residential security.
  • Page 2 The protection against masking the near field-of-view of the detector is achieved by a continuous active infrared beams scan. CURTAIN-Versatile will detect almost any type of material that blocks (masks) its near field-of-view. CURTAIN-Versatile combines two detection technologies- Two Microwave and Passive Infrared (PIR), and verifies any intrusion by both methods.
  • Page 3 ADJUSTMENS DIP SWICH LEDs Remote Control Mode Antimask sensitivity Dual Detection Microwave sensitivity Sensitivity adjustment adjustment High High TERMINAL BLOCK WIRING TAMPER ALARM SWITCH RELAY ANTI-MASKING 12V DC MAXIMUM Security (1984) Ltd. Page www.maximum.co.il...
  • Page 4 The Study Procedure can be performed by the optional Remote Control model RM-1. Please initiate the Study Procedure if you assume the Anti-masking feature doesn't operate as expected. This is the programming route in the Remote Control: DetectorsCURTAIN-VersatileExist DeviceEnter Device Code…Program DetectorMask Learn (Option No. 9). PERFORM A TEST * To be carried out when the case is closed and the LED indicators are enabled.
  • Page 5 SPECIFICATIONS * Power supply……………………………………...…………...12V DC * Current drain…...… Standby: 20mA (Max.); Operation: 40 mA (Max.) * Alarm relay contacts endurance………………...…… 15V DC / 20 mA * Anti-masking relay contacts endurance……………… 15V DC / 20 mA * TAMPER Switch endurance………………………..24V DC / 20 mA * Warm-up time………………………………..………….……...
  • Page 6 CERTIFICATE OF WARRANTY MAXIMUM Electronics (1984) Security Ltd. thanks you for buying its products, which have proven their reliability and effectiveness over many years. To ensure proper operation and functioning of the product and benefit from its features to the utmost, read the Installation &...
  • Page 7 The Manufacturer shall in no case be liable for damage or loss, whether direct, indirect, accidental, circumstantial or otherwise, caused by the proper and/or improper functioning of the Product due to use of other products, accessories or adjuncts (including batteries) together with the Product. The Manufacturer does not claim that the Product is immune to malicious neutralization, bypass, sabotage or deception, or that it will prevent in every case death or physical and/or mental injury due to burglary, robbery, fire or the like, or that the Product will provide in all cases adequate and/or suitable warning or protection.
