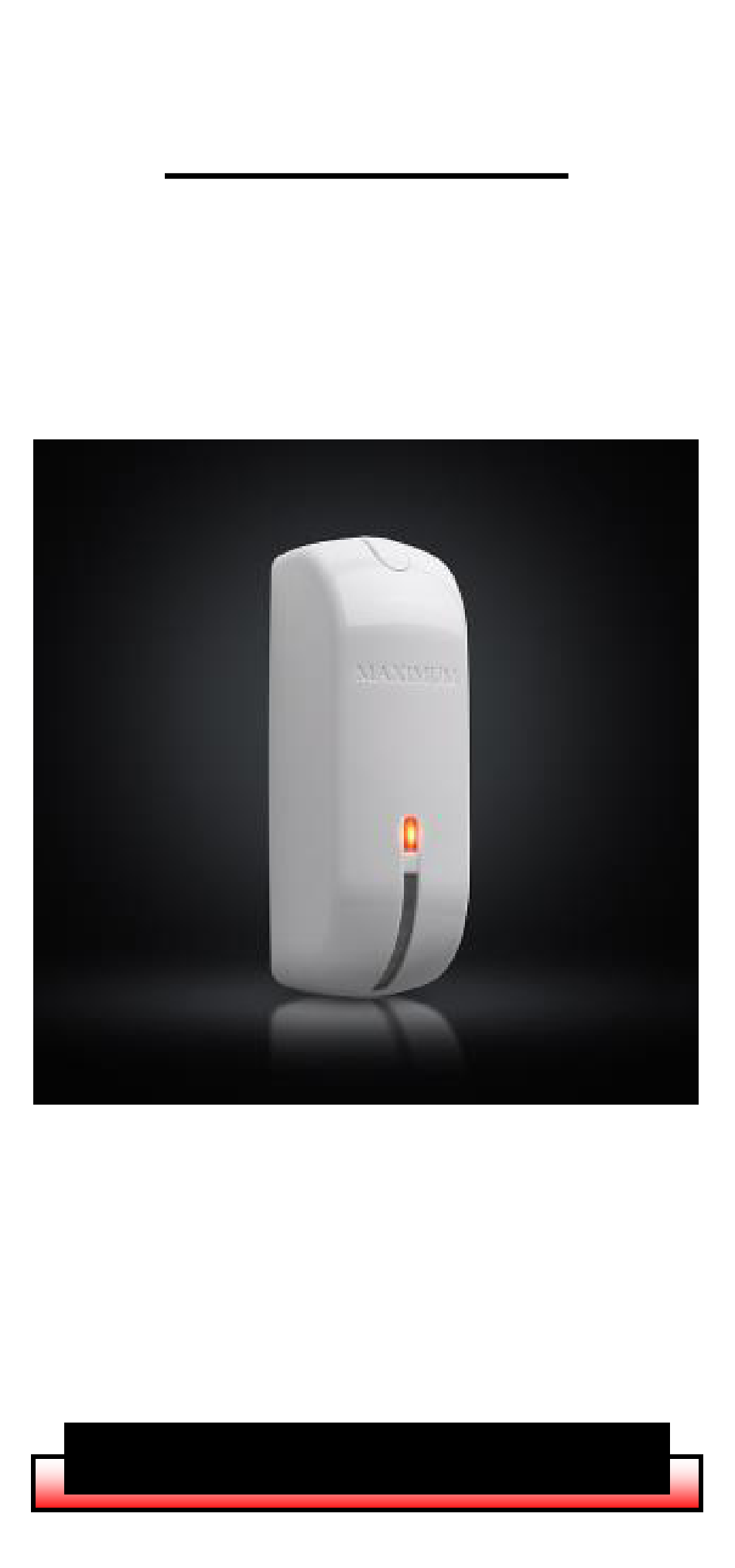

- Page 1 Operating & Installation Guide CURTAIN-Mini Remote Controlled Outdoor/Indoor intrusion detector with curtain field-of-view MAXIMUM Security (1984) Ltd. www.maximum.co.il...
- Page 2 FEATURES Super narrow protective screen of 3 Anti-masking Dual-tech, PIR & Microwave Remote Controlled- Detector settings can also be controlled by Remote Control (option). mounting bracket (provided) Extremely reliable & highly immune to false alarms ...
- Page 3 This type of protection allows free movement of people within the protected site- without setting off an alarm. CURTAIN-Mini is waterproof and can be installed outdoors or indoors. In addition to an unprecedented amazing and reliable detection capability, / 12...
- Page 4 The protection against masking the near field-of-view of the detector is achieved by a continuous active infrared beams scan. CURTAIN-Mini will detect almost any type of material that blocks (masks) its near field-of-view. It will also detect transparent objects such as clear glass and plastic bags.
- Page 5 CRUTIAL NOTES 1. The protected area must be safeguarded by additional detection means and internal detectors. 2. Similar to other products, this product can be cheated and defeated. 3. This product, as any other, may malfunction or become damaged during regular use or a result of vandalism.
- Page 6 APPLICATION - 10 m 10 m / 12...
- Page 7 DETECTOR’S FIELD-OF-VIEW DIAGRAMS Side view Microwave PIR "AND" Microwave Top view Microwave 63 cm PIR "AND" Microwave Detection range of up to 12 meter is for indoor installation / 12...
- Page 8 DETECTION SENSITIVITY ADJUSTMENT and WIRING / 12...
- Page 9 PREPARING THE ANTI-MASKING CHANNEL FOR OPERATION (Obligatory for proper Anti-masking operation!!!) To enable proper operation of the masking detection (Anti-masking), it is necessary to allow the detector to automatically study and analyze the environmental conditions of its protected area. This is an obligatory action that should be performed by the installer, ensuring proper operation of the Anti-masking channel!!! Study procedure to be performed in...
- Page 10 LED indication during the study procedure The Red+Green LED indicators blink rapidly for about 60 seconds. A break of about 20 seconds (Green LED indicator are activated). The Red+Green LED indicators blink rapidly for about 10 seconds. / 12...
-
Page 11: Perform A Test
PERFORM A TEST To be carried out when the case is closed and the LED indicators are enabled (DIP switch No.1 switched to ON). Test procedure for human movement detection (Alarm): o Walk in the protected area. o Compulsory reaction of the detector: Upon each true detection event, the “Alarm Relay”... -
Page 12: Specifications
SPECIFICATIONS Power supply………………21V DC Current drain…. Standby: 20mA (Max.) Operation: 30 mA (Max.) Alarm relay contacts endurance …………………………15V DC / 20 mA Anti-masking relay contacts endurance …………….……..…… 15V DC / 20 mA TAMPER Switch endurance …………………………..
