SOGEDIS D4 Series Service Manual

Hide thumbs Also See for D4 Series:

Download this manual

Reference Number: SM2701201700D4

Document without reference number is not valid.

Need help?

Do you have a question about the D4 Series and is the answer not in the manual?

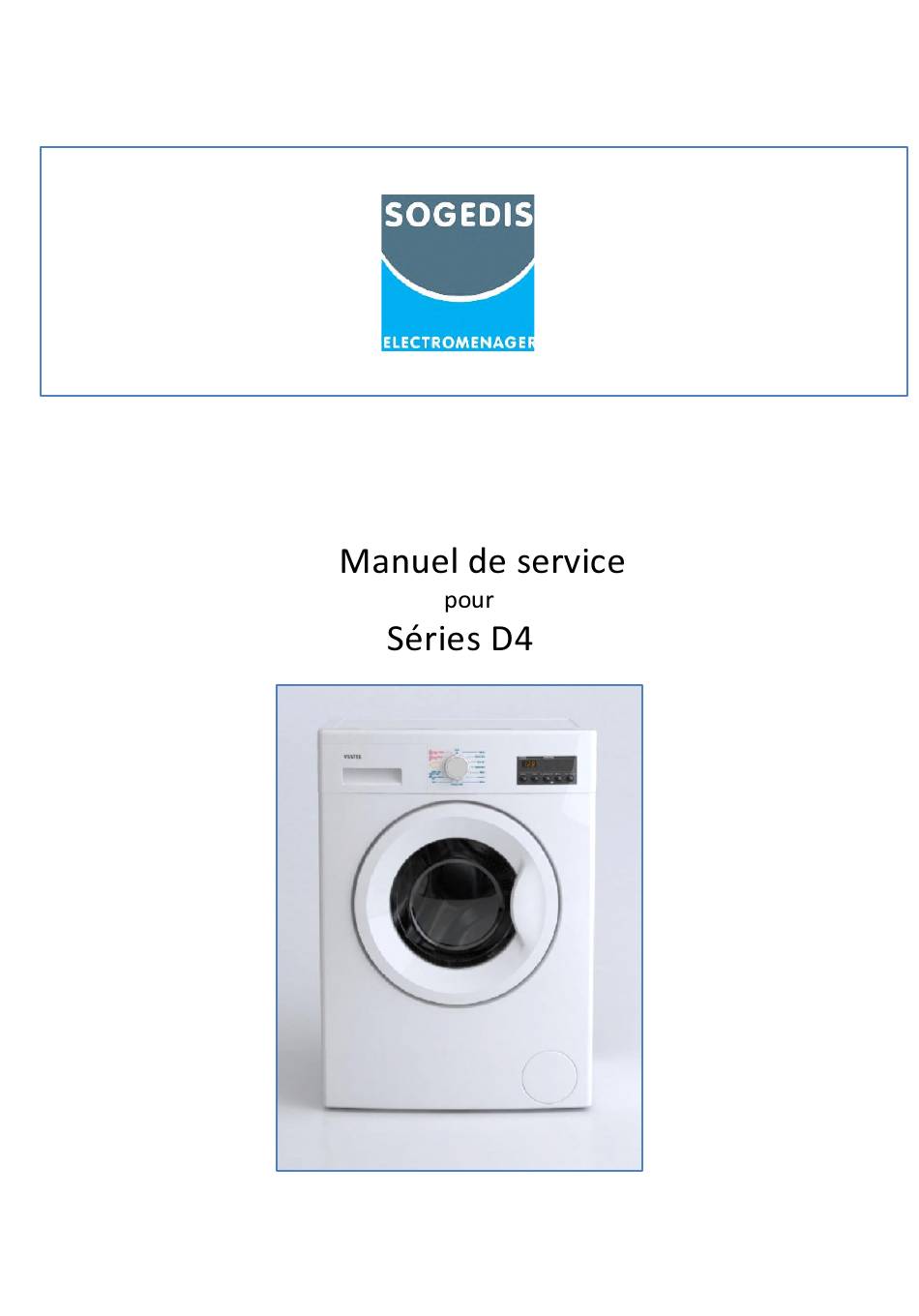

Page 1 Reference Number: SM2701201700D4 Document without reference number is not valid.
Page 8 * This test is for quick checking of the product. You can not see the failure codes. Press SW 3 button and simultaneously position program knob to 1 After 3 sec, door will be locked and the auto test starts. The test steps are as below;...
Page 12 5.1. Service Autotest End users can only see E1-E2-E3-E4. During service autotest, other failures can be seen. To activate service autotest, Press SW 2 button and simultaneously position program knob to 1. After 3 sec, door will be locked , after door is locked, all leds will be fix OFF and machine will get into service autotest mode. Selector Selector Selector...
Page 31 Tacho terminals Strator Terminals...
Page 36 Motor...
