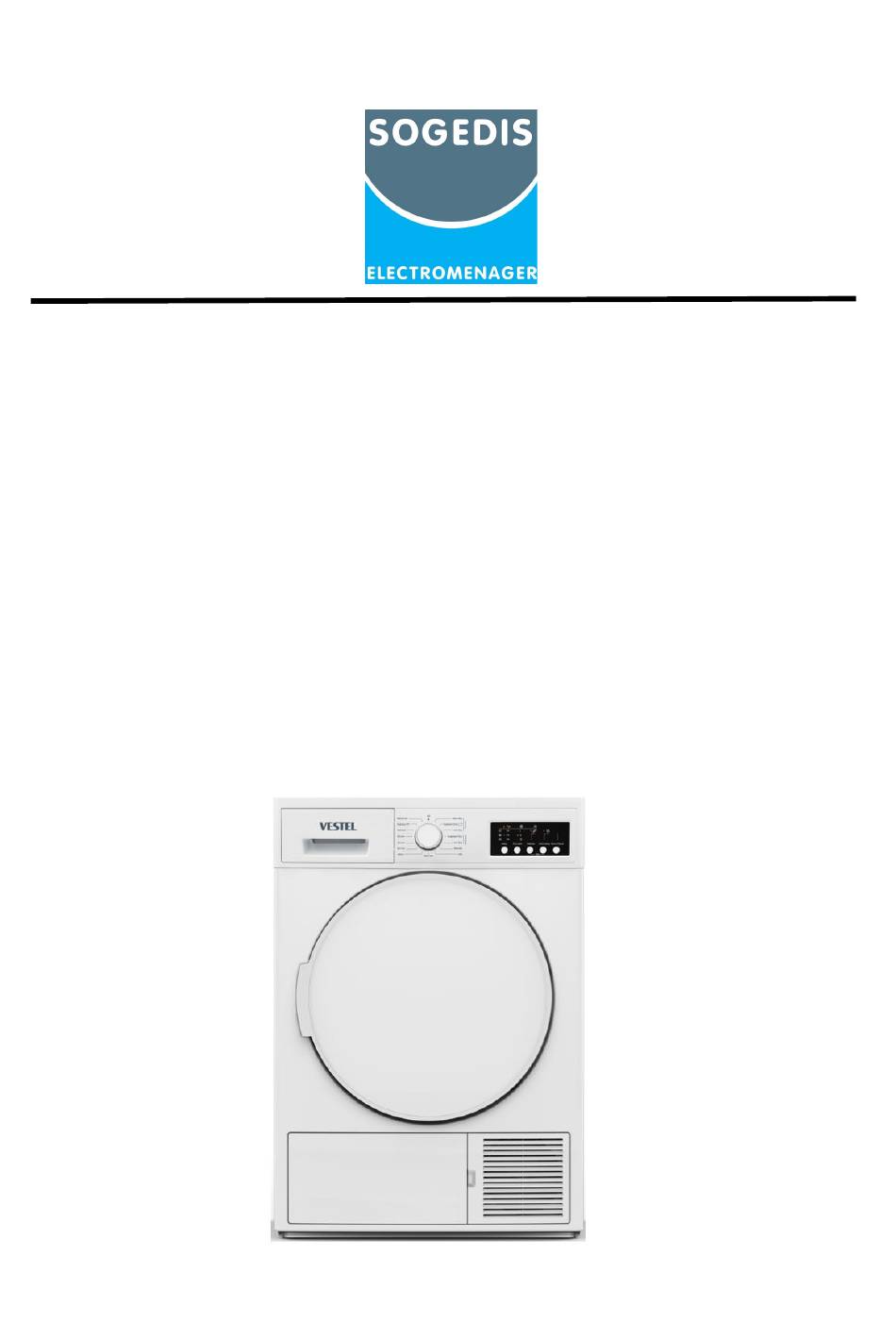

- Page 1 SECHE ‐ LINGE MANUEL DE SERVICE BANDEAU HP F2...
- Page 2 BANDEAU HP F2 SERVICE MANUAL 4. CONTROL PANEL AND PROGRAM SELECTION TABLE 4.1. Control Panel Display Symbols Drying Stages Indicator 4.2.Program List KNOB POSITION PROGRAM Cotton Extra Dry Cotton Cupboard Dry Cotton Iron Dry Synthetics Cupboard Dry Synthetics Iron Dry...
- Page 3 BANDEAU HP F2 SERVICE MANUAL ***The machine has humidity sensor that detects whether the laundry dry or not. At the programs that work with humidity sensor laundry does not dry in fixed time. Duration is constantly updates according to humidity data taking from laundry ***Time Drying Program: 60min /40min / 20min Humidity sensor is deactivated.
- Page 4 BANDEAU HP F2 SERVICE MANUAL 5.FAILURE MODES AND SERVICE AUTOTEST ***Service auto test must be run for every service call. The case in the photo don’t show us a failure code. Normally, when the drying program ends, the filter, water tank and end led are flashing. In addition, heat exchanger cleaning warning led is on...
-
Page 5: Error Code
BANDEAU HP F2 SERVICE MANUAL 5.1. Failure Modes and Warning Leds F2 HEAT PUMP MODEL ERROR CODES ERROR CODE REASON Aquaswitch connector is disconnected Compressor connector is disconnected Compressor NTC connector is disconnected Door NTC connector is disconnected Motor connector is disconnected, motor is locked... - Page 6 BANDEAU HP F2 SERVICE MANUAL 5.2.Service Auto Test Steps STEPS Control Possible Errors While pushing SW2 button for 5 sec, position knob to Program 1. Then press Start/Pause button. Machine enters Routine to to service autotest. Enter Servis F2: All warning leds makes fast blink for 2 sec and then Autotest becomes fix off.
- Page 7 BANDEAU HP F2 SERVICE MANUAL 7. 7. COMPONENT SPECIFICATIONS AND MEASUREMENTS 7.1. Motor The dryer has an asynchronous motor. In the photo on the right, the socket on the motor are shown to be measured by multiple counters. It is driven with triac via the electronic card (to give energy) and relay (for direction control).
- Page 8 BANDEAU HP F2 SERVICE MANUAL 7.1.1. Motor Measurements...
- Page 9 BANDEAU HP F2 SERVICE MANUAL 7.2. Pump In Tumble Dryer models, the pump is used to transport the water that accumulates in the condensation chamber to tank in the drawer area. One triac is measured on the electronic card. Technical Features Input Power : 13W max Resistance : 764±10% ohm...
- Page 10 BANDEAU HP F2 SERVICE MANUAL 7.2.1 Pump Measurements...
- Page 11 BANDEAU HP F2 SERVICE MANUAL 7.3. Electronic Card Technical Features Electronic card is single sided printed circuit board and CEM-1 material The upper picture shows where the components sockets are inserted. 7.4. Door/Compressor NTC Sensor Two NTC sensors are used. The NTC resistance decreases when the temperature rises.
- Page 12 BANDEAU HP F2 SERVICE MANUAL 7.4.1. Door NTC Sensor Measurements 7.5. Compressor The dryer has an compressor with an asynchronous motor. In the photo on the right, the terminal on the compressor are shown to be measured by multiple counters. It is...
- Page 13 BANDEAU HP F2 SERVICE MANUAL Aux windings: 8.75±7% (25 °C temp.) Motor speed : 2928 rpm (Unloaded) Gas Type: R290 Capacitor value : 20 µF ± %5 Compressor Capacity: 7.8 cm³/rev Component Test Check whether the compressor cable is connected to the compressor terminal.
- Page 14 BANDEAU HP F2 SERVICE MANUAL 7.5.1. Compressor Measurements...
- Page 15 BANDEAU HP F2 SERVICE MANUAL 7.6. Door Latch Door latch locks when the door is closed. It’s designed to be opened from inside, in case of children are in the drum Component Test When the door is closed, check whether there is electrical transmission from IDC connected to electronic card ...
- Page 16 BANDEAU HP F2 SERVICE MANUAL 7.7. Humidity Sensor The Humidity Sensor measures the amount of dryness of the laundry in the drum. Component Test Each humidity sensor plate is checked whether there is electrical transmission from IDC connected to electronic card.
- Page 17 BANDEAU HP F2 SERVICE MANUAL 7.8. Cooling Fan The dryer has an cooling fan with an asynchronous motor. In the photo on the right, the terminal on the compressor are shown to be measured by multiple counters. It is driven with triac via the...
- Page 18 BANDEAU HP F2 SERVICE MANUAL 7.8.1. Cooling Fan Measurements 7.9. Drumlight Drumlight lights inside of the drum Component Test Check whether there is electrical transmission from IDC connected to electronic card.
-
Page 19: Troubleshooting
BANDEAU HP F2 SERVICE MANUAL 8. TROUBLESHOOTING MACHINE IS NOT WORKING If Machine has no power Is there power Machine has not a failure on power sockets(outlet) ? (220V-50 Hz) Is The Supply Make Electrical Connection Cord Plugged Into The EMI... - Page 20 BANDEAU HP F2 SERVICE MANUAL MACHINE IS NOT WORKING If machine has power Is the door Close / Repair the door closed? Is the door latch socket connection Make Electrical Connection correct ? Check the door latch with Change the door latch...
- Page 21 BANDEAU HP F2 SERVICE MANUAL MACHINE IS NOT DRYING Is the Filter and Clean Filter and / or Condenser Condenser Clean? Is compressor Wait temperature of the compressor surface overload decrease room temperature and check again. protector open circuit? Is connection of...
- Page 22 BANDEAU HP F2 SERVICE MANUAL DRUM IS NOT ROTATING Is Right and Wheels may be stuck or Is Drum Rotating Left Wheel damaged. Replace the With Hand? Rotating wheels. Is belt position Fix The Position of Is Drum as It...
- Page 23 BANDEAU HP F2 SERVICE MANUAL E04 ERROR Is connection of compressor Fix Compressor Connections connector correct? Are the measured resistance values Change The Compressor t hrough the compressor connector correct? Is There a Disconnection Between Is machine Check the compressor gas...
