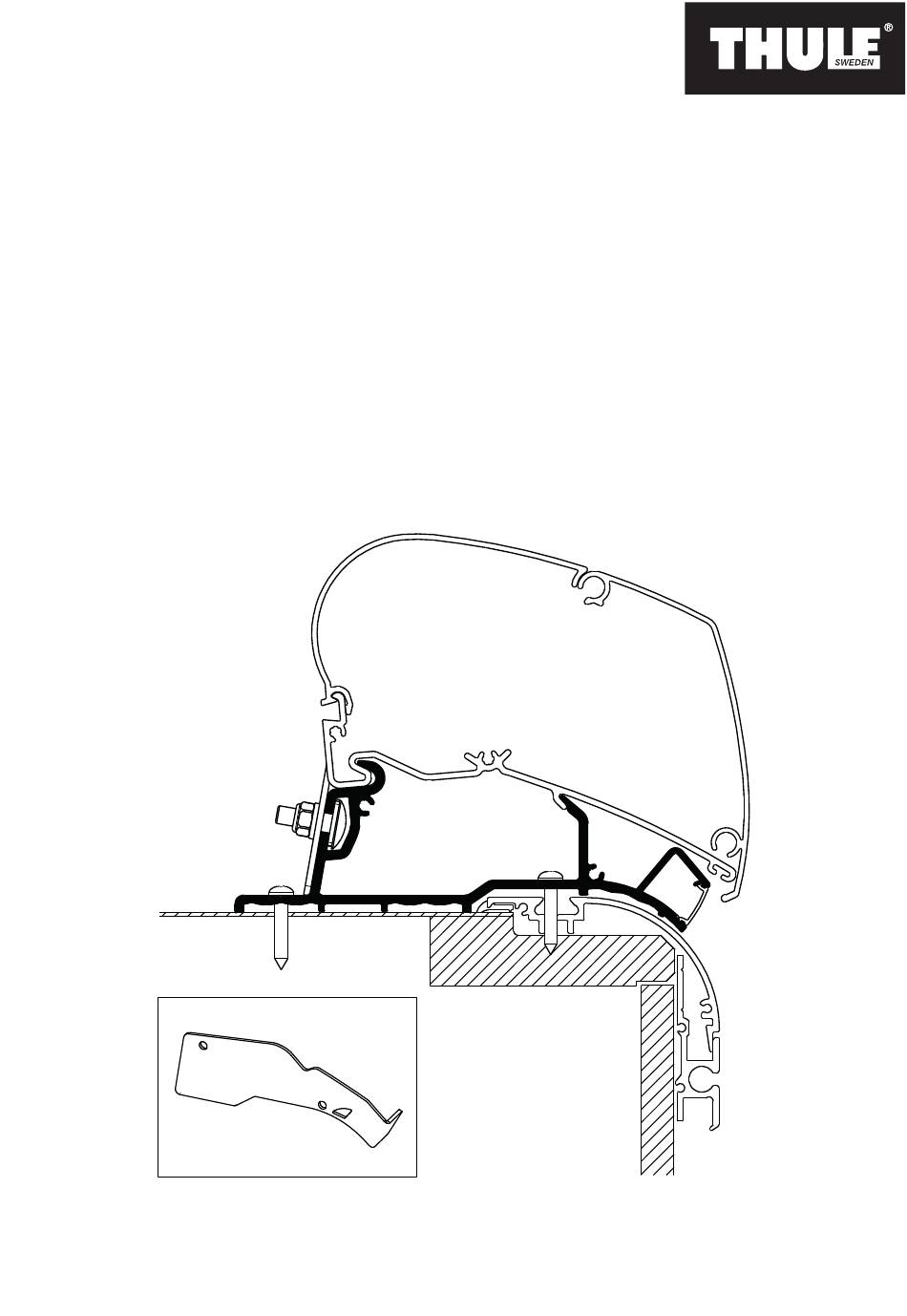

- Page 1 USER √ Instructions Caravan Roof Top Adapter 301945 - 301949 Bring your life ADR924-00 | 3380064000 thule.com 2021-01-07...
- Page 3 Adapter - Bedienungsanleitung ADAPTER - USER INSTRUCTIONS Adapter - Gebruikershandleiding Adaptateur - Instructions d'utilisation Adattatore - manuale utente Safety Adaptador - manual de usuario Adapter - användarmanual Adapteri - käyttöohje Adapter - brugermanual Adapter - brukerhåndbok Adapter - instrukcja obsługi WARNINGS &...
- Page 4 1 WARNINGS & INFO Instructions Safety Instructions Safety Max 130 km/h 80 Mph ADR924-00...
- Page 5 2 CONTENT M6 x 16 mm DIN 603 4,2 x 25 mm DIN 7981 - TX20 DIN 125 DIN 989 OPTIONAL LED 3 TOOLS N° 10 TX 20 Ø 6,5 mm Ø 3 mm ADR924-00...
-
Page 6: Installation
4 INSTALLATION N° 10 ADAPTER AWNING TO 6300 AWNING TO 9200 TX 20 301945 4m25 301946 4m50 4m50 301947 5m00 5m00 Ø 6,5 mm 301948 5m50 301949 6m00 Ø 3 mm ADR924-00... - Page 7 ADR924-00...
- Page 8 x10/12 ADR924-00...
- Page 9 Ø 3 mm Ø 6,5 mm x1 (optional) OPTIONAL FOR LED OPTIONAL FOR LED Right Cable Outlet Left Cable Outlet OPTIONAL LED ADR924-00...
- Page 10 TX 20 6 Nm ADR924-00...
- Page 11 N˚ 10 6 Nm ADR924-00...
- Page 12 Thule NV, Kortrijkstraat 343 – BE 8930 Menen, BELGIUM infoRV@thule.com www.thule.com ADR924-00 © Thule Group 2020. All rights reserved.
