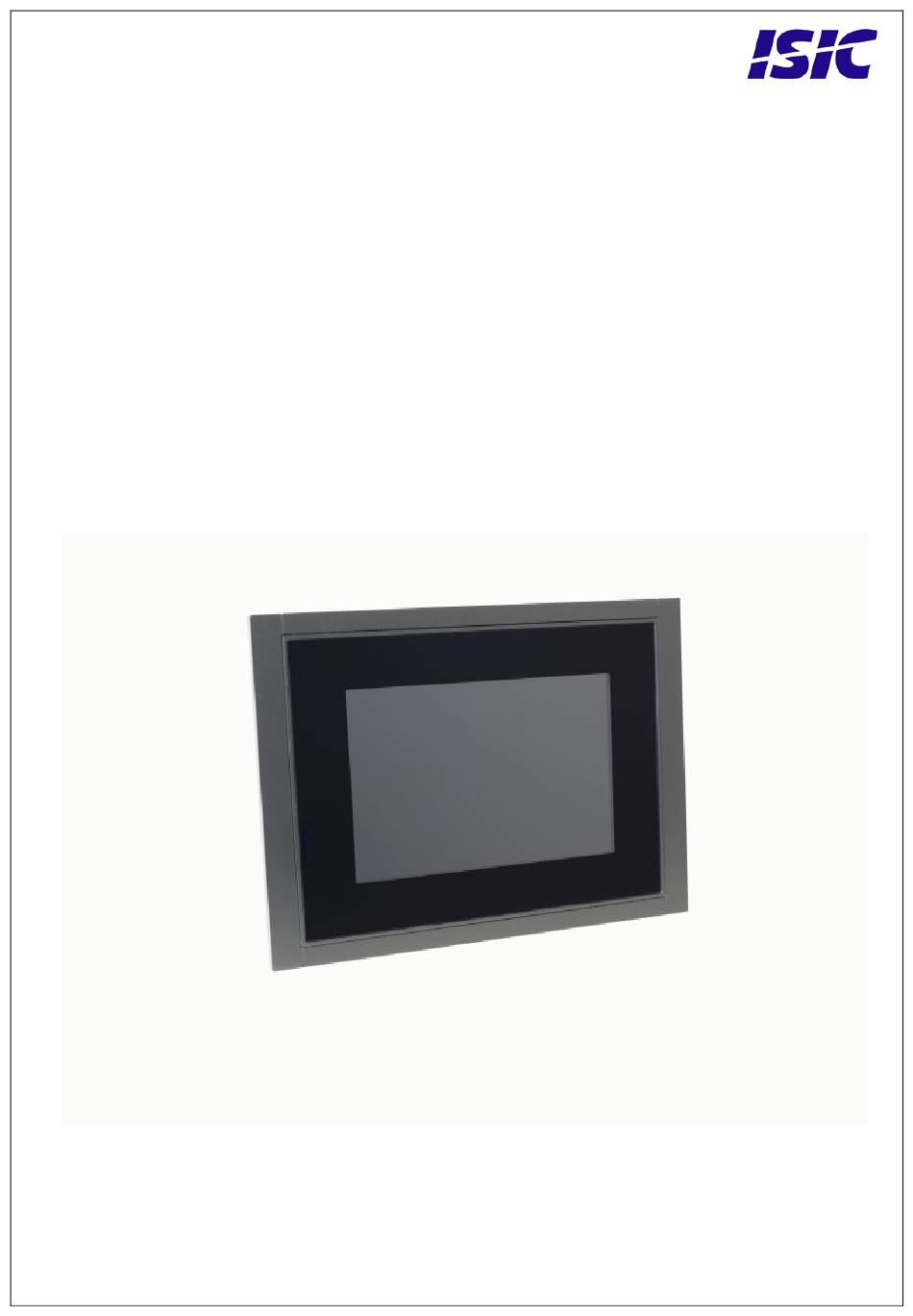

  • Page 1 User Manual DuraMON 7”...
  • Page 2 Disclaimer ISIC A/S makes no representation or warranties with respect to the contents or use of this manual, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Further, ISIC A/S reserves the right to revise this publication and to make changes to its content at any time, without obligation to notify any person or entity of such revisions or changes.

  • Page 3: Table Of Contents

    CONNECTOR PIN-OUT ................... 5 DURAMON 7” WS COMMUNICATION PROTOCOL ........... 8 DDC/CI COMMANDS ....................8 MECHANICAL OUTLINE DURAMON 7” – DROP IN ..........10 MECHANICAL OUTLINE DURAMON 7” – FLUSH MOUNT ........11 MECHANICAL OUTLINE DURAMON 7” – RETROFIT ..........12 10 COMPASS SAFE DISTANCE ..................

  • Page 4: Features

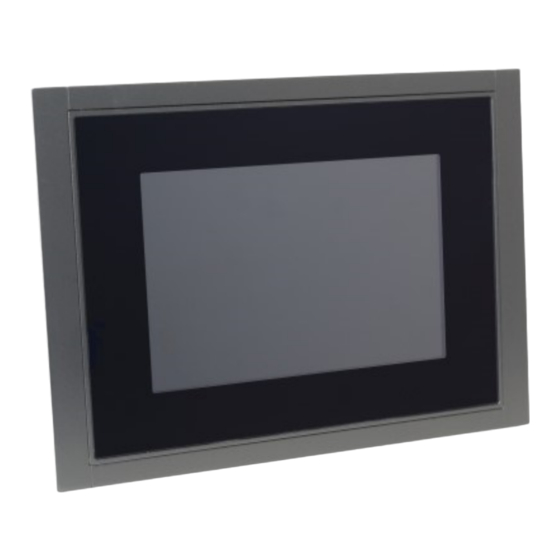

    Features Congratulations on your purchase of a DuraMON 7”. This short form manual is designed to get you started working with your new DuraMON 7”. The DuraMON 7” series of Panel Computers are all designed for the demanding operating conditions at sea.

  • Page 5: Duramon 7" Connections

    DuraMON 7” connections Below is a view of connections to the DuraMON 7”. 2 x PWR DVI-I RS-232 CHASSIS Touch Connector pin-out RS-232 Pin1 RS-232 SUB-D 9-pol female Monitor TX Monitor RX Mating part: SUB-D 9 pole female, Norcomp 172-E09-20201 or equivalent.
  • Page 6 The nominal input power voltage is 24V. There are two independent galvanic isolated power inputs. Mating part: Weidmüller BLZP5.08HC/02/180F Power in Pin1 0VDC 24VDC Standard A Data - Data + User Reference Manual – DuraMON 7” series PN: 07009-000 Rev A Page 6...
  • Page 7 Certificates: MR certificate DuraMON 7” - Dimensions Size: 218 (W) x 147mm (H) x 59mm (Depth behind bezel) Weight: App. 2 kg. Optional Bracket: Desk/ceiling-and wall-bracket (VESA 75x75mm) User Reference Manual – DuraMON 7” series PN: 07009-000 Rev A Page 7...

  • Page 8: Duramon 7" Ws Communication Protocol

    0x77 0x6E 0x0D 0x0A DDC/CI commands To avoid the additional serial cable it is also possible to control the DuraMON 7” WS through a DDC/CI (Display Data Channel Command Interface) integrated in the DVI cable/connector. Data format: BYTE0 BYTE1 BYTE2...
  • Page 9 Value range: 0x00 – 0x64 Example: Set Contrast to 0x32 (50%): BYTE0 BYTE1 BYTE2 BYTE3 BYTE4 BYTE5 BYTE6 BYTE7 0x6E 0x51 0x84 0x03 0x12 0x00 0x32 0x98 User Reference Manual – DuraMON 7” series PN: 07009-000 Rev A Page 9...

  • Page 10: Mechanical Outline Duramon 7" - Drop In

    Sheet: 1 of 4 Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 24-6-2015 Approved by 24-6-2015 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: 07426-000 Mechanical outline DuraMon 7" Drop in...

  • Page 11: Mechanical Outline Duramon 7" - Flush Mount

    Sheet: 2 of 4 Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 24-6-2015 Approved by 24-6-2015 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: 07426-000 Mechanical outline DuraMon 7" Fluch...

  • Page 12: Mechanical Outline Duramon 7" - Retrofit

    Sheet: 3 of 4 Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 24-6-2015 Approved by 24-6-2015 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Subject: Drawing no. Rev. Scale: 07426-000 Mechanical outline DuraMon 7" Retofit...

  • Page 13: Compass Safe Distance

    No calibration of touch Calibrate touch Servicing the unit In case that the unit still fails after following the troubleshooting send the unit to ISIC for repair via our RMA service on our web. ISIC info / Support In case you have inquiries or problems with your DuraMON 7”, you have a number of possibilities to get support.
  • Page 14 During office-hours (Mo-Fr: CET 0800 - 1600) at +45 70 20 70 77 Service: Before shipment for service Request Return Material Authorization number at homepage www.isic-systems.com under RMA By mail to service@isic-systems.com User Reference Manual – DuraMON 7” series PN: 07009-000 Rev A Page 14...

  • Page 15: Revision History

    Revision history Rev A June 2015 First release User Reference Manual – DuraMON 7” series PN: 07009-000 Rev A Page 15...

  • Page 16: Appendix A: Pixel Policy

    TFT display. To regulate the acceptability of defects and protect the end user, ISIC A/S complies with the ISO 9241-307:2008 standard. This standard recommends how many defects are considered acceptable in a display, before it should be replaced within the terms of the warranty.
  • Page 17 Pixels in a cluster area constantly dark Cluster pixel defect type 3a Cluster pixel defect type 3b Sub-pixels/dots in a cluster area constantly lit Sub-pixels/dots in a cluster area constantly dark User Reference Manual – DuraMON 7” series PN: 07009-000 Rev A Page 17...
