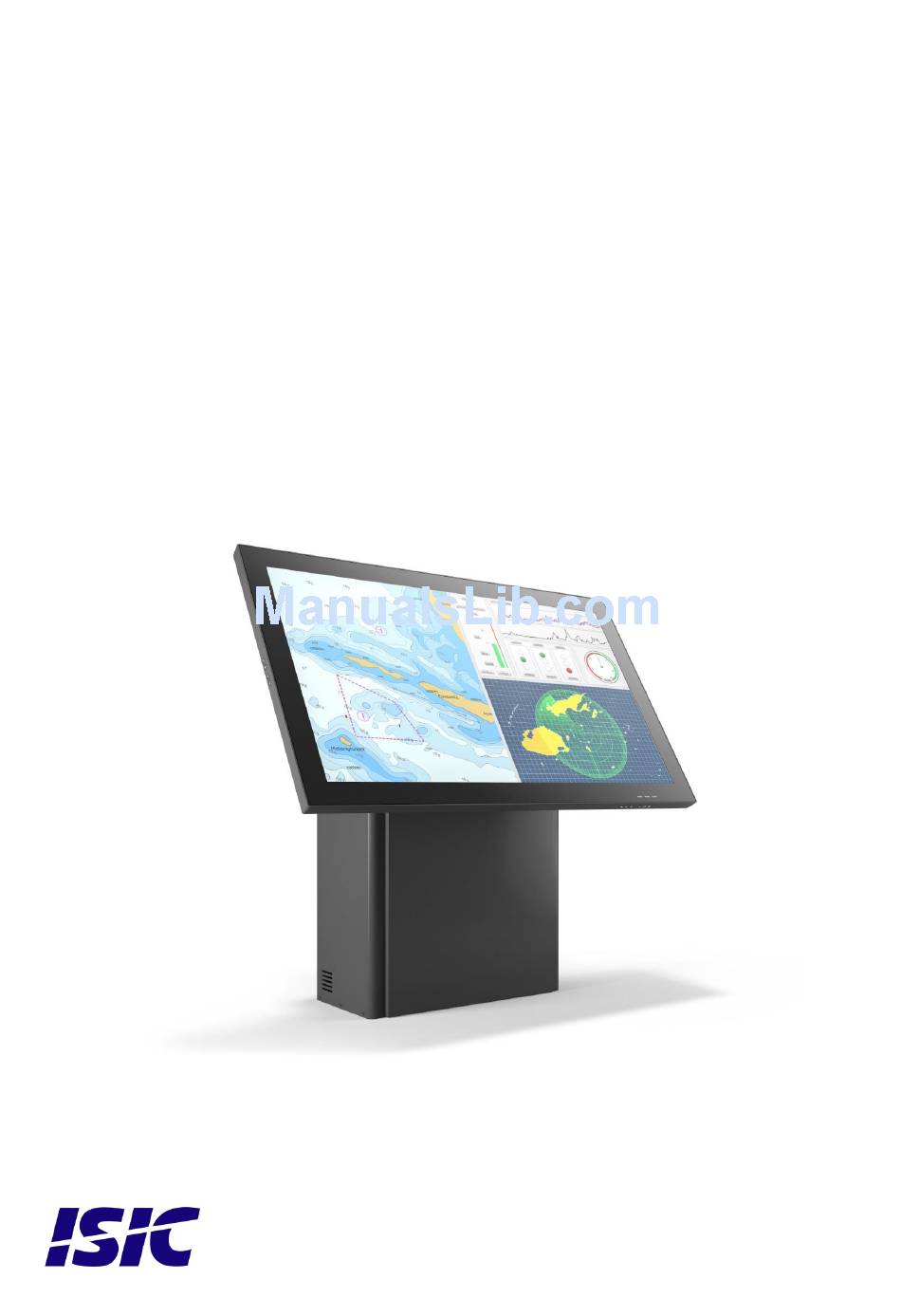

- Page 1 DuraMON 55 GLASS User Reference Manual User Reference Manual – DuraMON GLASS series PN: 08186-000 Rev B Page 1...
-
Page 2: Fcc Warning
Disclaimer ISIC A/S makes no representation or warranties with respect to the contents or use of this manual, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Further, ISIC A/S reserves the right to revise this publication and to make changes to its content at any time, without obligation to notify any person or entity of such revisions or changes. -
Page 3: Table Of Contents
Table of Contents FEATURES ................................4 GENERAL CONSIDERATIONS ON INSTALLATION AND OPERATION ..........5 DURAMON 55 GLASS CONNECTIONS ......................5 DURAMON 55 GLASS FRONT PANEL CONTROLS (ECDIS AND RADAR) ..........6 MON 55 GLASS : ........................... 6 FRONT SERIAL CONNECTION PIN-OUT ........................7 CONSOLE UP/DOWN/TILT CONNECTION PIN-OUT .................. -
Page 4: Features
Features Congratulations on your purchase of a DuraMON 55 GLASS. This short form manual is designed to get you started working with your new DuraMON 55 GLASS. The DuraMON 55 GLASS monitor is made as rugged monitors especially designed for the demanding operating conditions at sea. -
Page 5: General Considerations On Installation And Operation
The DuraMON GLASS is designed to work at conditions according to IEC 60945. However, keeping the temperature and vibration level at a minimum will extend the life time of the product. ISIC recommend operating this product at normal room temperature (20-25 °C), with the minimum of direct sunlight, vibration and humidity. -
Page 6: Duramon 55 Glass Front Panel Controls (Ecdis And Radar)
DuraMON 55 GLASS front panel controls (ECDIS and Radar) The front panel is illuminated and will follow the brightness level of the monitor backlight. DuraMON 55 GLASS front: STATUS: This LED will illuminate green when the monitor is powered on and red when the monitor is powered down. -
Page 7: Serial Connection Pin-Out
Serial connection pin-out RS-232 SUB-D 9-pol female Mating connector 9 pin D-Sub male. Floor stand Up/Down/Tilt connection pin- Function SUB-D 9-pol male Tilt Down Raise Down Raise Up Tilt Up Raise Common Tilt Common Mating connector 9 pin D-Sub female. User Reference Manual –... -
Page 8: Technical Specifications Duramon 55 Glass
ECDIS, Radar: IEC 61174 ed. 4, IEC 62288 ed. 2, IEC 62388 ed. 2 Type Approvals: For marine class approvals – see www.isic-systems.com DuraMON55 specification Resolution: 3840 x 2160 Active Area 1209.6mm x 680.4mm (55” diagonal) Pixel Pitch: 0.315 mm x 0.315 mm View angle: 89°... -
Page 9: Mechanical Outline Duramon 55 Glass
Drawing size: Angle, straightness and flatness: DS/ISO 2768-H Designed by 25-09-2017 Approved by 25-09-2017 2319 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Mechanical outline DuraMON WS Glass 55'' Subject: Drawing no. Rev. Scale: 08207-000... -
Page 10: Mechanical Outline Wall Mount
Designed by 25-09-2017 Approved by 25-09-2017 Parts List ITEM PART NUMBER DESCRIPTION 2319 ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk Ø11 08360-000 DuraMON Glass 55 Wall Mount Subject: Drawing no. Rev. Scale: 00233-001 SCREW 6KT M8x30 DIN 933 A4... -
Page 11: Ecdis Mode
See document 04924-001 for protocol details. The type of the product can be queried by sending the ‘TYP’ command, ref. the Serial Protocol Document Monitor Response from monitor DuraMON 55 GLASS DuraMON 55 GLASS 12 Compass safe distance Test object / condition Minimum Compass safe... -
Page 12: Inrush Current
14 Inrush current Test object / condition [VAC] [VAC] DuraMON 55 GLASS User Reference Manual – DuraMON GLASS series PN: 08186-000 Rev B Page 12... -
Page 13: Popup Menu
Check OSD menu Popup Menu Without entering the OSD menu it is possible to adjust brightness by pressing “up” or “down” key. Press “up” or It is now possible to Backlight “down” adjust the backlight level by pressing either up- or down key. -
Page 14: Advanced Osd
Advanced OSD With the Advanced OSD (On Screen Display) you can modify the settings and control the special features of the DuraMON as described on the next pages. To enter the Advanced OSD, press “MENU” button. To navigate the Advanced OSD use the “UP” and “DOWN” buttons and press “ENTER” to select a specific setting. - Page 15 Picture – Picture Sharpness Picture Format Main Menu Brightness Picture Contrast PIP PBP Sharpness Audio Gamma Setup Color Temp Monitor Info User OSD Settings Picture – Picture Gamma Picture Format Main Menu Brightness Picture Contrast PIP PBP Sharpness Audio Gamma Setup Color Temp Monitor Info...
-
Page 16: Picture In Picture
Picture in Picture PIP PBP PIP/PBP Mode Main Menu PIP/PBP Mode PBP 4Win Win1 Input Sub Picture PBP 2Win Win2 Input Sub PIP PBP PBP 3Win Win3 Input Sub Audio PBP 4Win PIP Size Small Setup PIP Position Top-Right Monitor Info Swap OSD Settings PIP PBP Win1 Input Sub... -
Page 17: Setup
PIP PBP PIP Position Main Menu PIP/PBP Mode PBP 4Win Top-Right Top-Left Win1 Input Sub Picture Bottom-Right Win2 Input Sub PIP PBP Bottom-Left Win3 Input Sub Audio PIP Size Small Setup PIP Position Top-Right Monitor Info Swap OSD Settings PIP PBP Swap Main Menu PIP/PBP Mode PBP 4Win... - Page 18 Setup – Reset Main Menu DisplayPort Input Scan Picture Reset PIP PBP Auto Audio H. Position Setup V. Position Monitor Info Phase OSD Settings Clock Setup – Auto Main Menu DisplayPort Only available for VGA Input Scan Picture Reset PIP PBP Auto Audio H.
-
Page 19: Monitor Info
Setup – Phase Main Menu DisplayPort Only available for VGA Input Scan Picture Reset PIP PBP Auto Audio H. Position Setup V. Position Monitor Info Phase OSD Settings Clock Setup – Clock Main Menu DisplayPort Only available for VGA Input Scan Picture Reset PIP PBP... - Page 20 Setup – Vertical Main Menu Horizontal Value from 0 to 100 Vertical Picture Transparency PIP PBP OSD Time Out Audio Upgrade Sw Setup Monitor Info OSD Settings Setup – Transparency Main Menu Horizontal Vertical Picture Transparency PIP PBP OSD Time Out Audio Upgrade Sw Setup...
-
Page 21: Troubleshooting
Servicing the unit In case that the unit still fails after following the troubleshooting send the unit to ISIC for repair. There are no user serviceable parts inside and to ensure ECDIS compliance the monitor has to be recalibrated at ISIC. -
Page 22: Isic Info / Support
Orders: By fax to +45 70 20 79 76 By mail to orders@isic-systems.com Support: Via homepage www.isic-systems.com under aftersales By mail to service@isic-systems.com During office-hours (Mo-Fr: CET 0800 - 1600) at +45 70 20 70 77 Service: Before shipment for service Request Return Material Authorization number at homepage http://www.isic-systems.com/aftersales/tech-support-rma/... -
Page 23: Revision History
Revision history Rev A July 2017 First release Rev B September Page 6, Corrected button drawing Page 9, Mechanical outline updated Page 10, Mechanical outline updated User Reference Manual – DuraMON GLASS series PN: 08186-000 Rev B Page 23... -
Page 24: Appendix A: Pixel Policy
TFT display. To regulate the acceptability of defects and protect the end user, ISIC A/S complies with the ISO 9241-307:2008 standard. This standard recommends how many defects are considered acceptable in a display, before it should be replaced within the terms of the warranty. - Page 25 Pixel Pixel defect type 1 Pixel constantly lit Pixel defect type 2 Pixel constantly dark Pixel defect type 3a Pixel defect type 3b Sub-pixel/dot constantly lit Sub-pixel/dot constantly dark (red, blue, green) (red, blue, green) Cluster A cluster consists of 5 x 5 pixels. Cluster pixel defect type 1 Cluster pixel defect type 2 Pixels in a cluster area constantly lit...
- Page 26 Pixel faults accepted by ISIC A/S The maximum number of pixel faults that is considered acceptable at different screen resolutions is shown in the table below. This is the native resolution and not the resolution as adjusted by user. Class II...
- Page 27 Edwin Rahrs Vej 54 DK-8220 Brabrand Denmark Web: http://www.isic-systems.com Email: service@isic-systems.com User Reference Manual – DuraMON GLASS series PN: 08186-000 Rev B Page 27...
