ABBOT CHAISE LOUNGE
HDC#:1471710890 MFG#:FLA80112B
Please read over this instruction manual as it will save time in the
assembly of this product.
Note: Prior to assembly, please open and lay parts out on a clean, soft
flat surface to avoid any damages to the product's finish.
page 1-9
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection ABBOT 1471710890
Summary of Contents for Home Decorators Collection ABBOT 1471710890

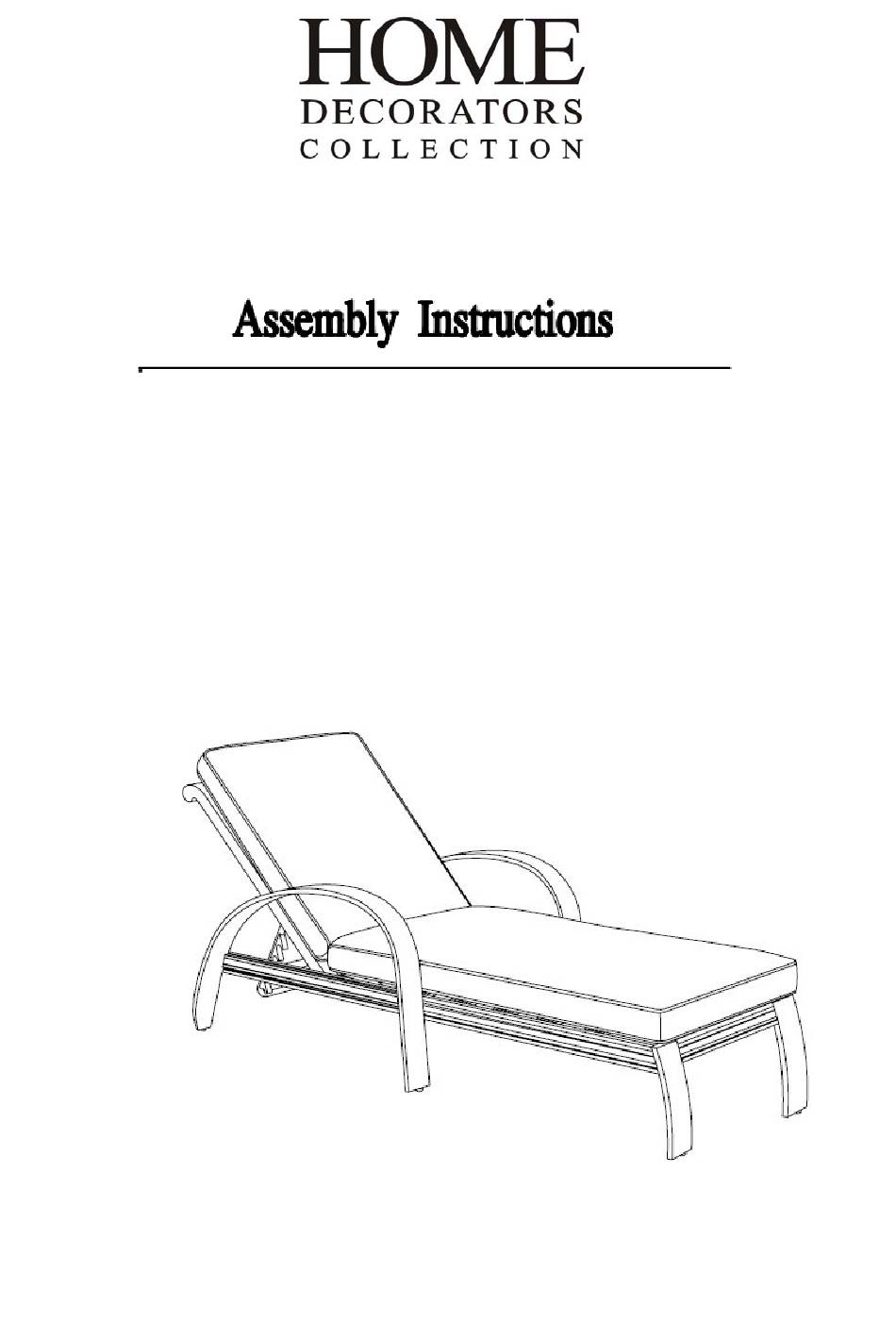

- Page 1 ABBOT CHAISE LOUNGE HDC#:1471710890 MFG#:FLA80112B Please read over this instruction manual as it will save time in the assembly of this product. Note: Prior to assembly, please open and lay parts out on a clean, soft flat surface to avoid any damages to the product’s finish. page 1-9...
-
Page 2: Warranty
Caution: The Abbot Chaise Lounge was made for the explicit purpose of providing outdoor functions and is not to be used as a toy. This product is not intended for inclement/severe weather in any form including, but not limited to: rain, hail, sleet, snow and/or wind. Manufacturer recommends that with formidable weather approaching you store and/or cover this chaise lounge. - Page 3 DO NOT RETURN TO RETAILER IF YOU HAVE ANY QUESTIONS OR CONCERNS PLEASE VISIT OUR WEBSITE AT: www.yotrioint.com OR TOLL FREE AT: 1-800-245-2217 MONDAY-FRIDAY 8:30 AM TO 5:00 PM PACIFIC STANDARD TIME / 11:30 AM TO 8:00PM EASTERN STANDARD TIME YOTRIO CUSTOMER CARE ...
- Page 4 Parts Check List Please remove all parts carefully from box and lay out on clean, soft surface to protect product’s finish. ① ② Chaise Body– 1PC Right Arm– 1PC ③ ④ Left Arm – 1PC Chaise Back– 1PC ⑤ Cushion– 1PC page 4-9...
- Page 5 A .Hex bolt – 8 PC B. Hex bolt – 2PC M6X30mm M6X60mm C. Washer –10PC D. Plastic Washer– 2PC E. Hex Wrench – 1PC page 5-9...
- Page 6 Lay down Left Arm (3) on a soft surface and attach Chaise Body (1) to it with 4pcs of Hex Bolt (A) and 4pcs Washer(C). Use the Hex Wrench(E) to loosely secure. Do not tighten yet! page 6-9...
- Page 7 Lay down Right Arm (2) on a soft surface and attach Chaise Body(1) with 4pcs of Hex Bolt (A) and 4pcs of Washer(C). Use the Hex Wrench(E) to secure. Do not tighten yet! page 7-9...
- Page 8 Attach Chaise Back (4) to Chaise Seat(1) with 2pcs of Hex Bolt(B), 2pcs of Washer(C) and 2pcs of Plastic Washer(D).Use the Hex Wrench(E) to loosely secure. Do not tighten yet! page 8-9...
- Page 9 Once all bolts are in place, tighten the bolts with Hex Wrench (E).Check to ensure the chaise is tightly assembled and stable before use. Place Cushion (5) on chaise. page 9-9...
