Model# Kordite WC
ASSEMBLY INSTRUCTIONS

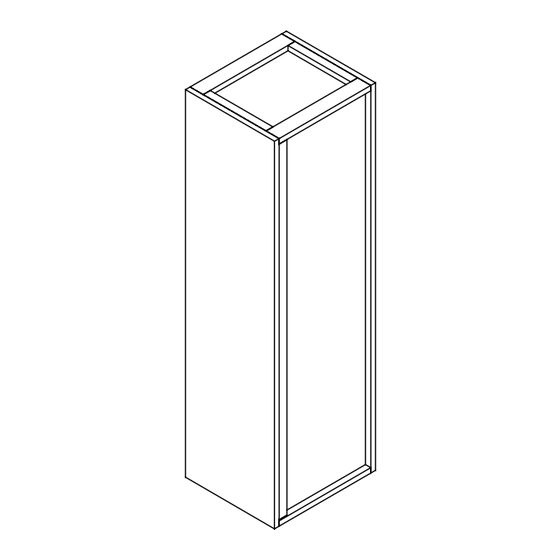

KORDITE WALL CABINET
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDEPOT.CA/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this wall cabinet. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection Kordite WC
Summary of Contents for Home Decorators Collection Kordite WC
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this wall cabinet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-assembly ..............5 Safety information ............2 Planning Assembly ..............5 Warranty ................ 3 Tools Required .................5 Limited Lifetime Warranty ............3 Package Contents ..............6 Assembly ..............7 What is Covered ...............3 What is Not Covered ..............3 Care and cleaning ............ - Page 3 Tip Over Hazard Warning WARNING • Unit must be placed on a level surface or leveled with included hardware (when applicable). • Do not sit or stand on or allow children to climb, sit or stand on the assembled product. For safety reasons, it is imperative that •...
-
Page 4: Warranty
PRIOR TO INSTALLATION, for a replacement. □ Home Decorators Collection warrants mirrors to be free from defects in workmanship and materials under normal use and service for a period of one (1) year. -
Page 5: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Check the mirror for damage before installation. If any part of the mirror is missing or damaged, contact the Customer Service Team at 1-800-986-3460. Ensure that the mirror location is accessible to wall. It is suggested that you rough-in the wall before installing the mirror. TOOLS REQUIRED Safety Philips... -
Page 6: Package Contents
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Support bar Wall Anchor Screw HOMEDEPOT.COM/HOMEDEPOT.CA/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. -
Page 7: Assembly
Assembly Reversiblity Reversiblity □ This cabinet is up and down reversible. □ This instruction is drawn up for a door opening from left to right (see illustration A). □ For an installation for a door opening from right to left (see illustration B), Gently remove the drawer and the shelves from the cabinet and reinstall them upside down. - Page 8 Assembly (continued) Installing support bars Installing support bars □ Measure the height (H1) at where the cabinet will □ Measure the height at 28-3/16” [716] from the be located, as illustrated. It is recommended to bottom of the support bar, this calculated measure leave at least 5’’...
- Page 9 Assembly (continued) Installing support bars Installing support bars □ Using a stud finder or equivalent tool, locate at □ Keep the support bars in the position, then drill pilot least 1 wall stud and mark its positions on the wall holes on the wall through the support bar at the for each support bar (A).
- Page 10 Assembly (continued) Installing support bars Installing support bars □ Except for the holes that are over the stud, drill in □ Replace and secure the support bars (A) with the exisiting holes on the wall using ø5/16” (8mm) screws (C). drill bit and insert the wall anchors (B) into the holes using a rubber mallet until the wall anchors are flush with the wall.
- Page 11 Assembly (continued) Hang on the cabinet Securing the cabinet □ Gently hang the cabinet on the support bar (A). □ Open the door, measure and mark two holes, one of the holes must be right over the wall studs respectively from the back of the cabinet. Make sure the two holes avoid the existing screws behind the cabinet at the indicated locations as shown below.
- Page 12 Assembly (continued) Securing the cabinet Securing the cabinet □ Open the door, measure and mark two holes, one □ Drill pilot holes on the wall through the back of the of the holes must be right over the wall studs cabinet as well as the support bar at the marked respectively from the back of the cabinet.
- Page 13 Assembly (continued) Securing the cabinet □ Replace and secure the cabinet with screws (C) through the pilot holes. HOMEDEPOT.COM/HOMEDEPOT.CA/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
- Page 14 Assembly (continued) How to remove / install drawers How to remove / install shelves REMOVE REMOVE INSTALL INSTALL HOMEDEPOT.COM/HOMEDEPOT.CA/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
-
Page 15: Care And Cleaning
Care and Cleaning □ For daily maintenance, use a wet cloth and a soft liquid cleaner. □ Never use abrasive cleaners or strong bleach, scrapers, metallic brushes, or other objects or any products which can graze or tarnish surfaces. HOMEDEPOT.COM/HOMEDEPOT.CA/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. - Page 16 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDEPOT.CA/HOMEDECORATORS Retain this manual for future use.
