Kubota Z751KWi Operator's Manual
  1. Manuals
  2. Brands
  3. Kubota Manuals
  4. Lawn Mower
  5. Z751KWi
  6. Operator's manual

Kubota Z751KWi Operator's Manual

Zero turn mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

AX . A . 2 - 2 . - . AK
PRINTED IN U.S.A.
IMPRESO EN E.E.U.U.
Z
7
5
1
K
W
i
·
Z
7
8
1
K
W
i
·
Z
7
8
1
K
W
English, Spanish (U.S.A.)
T
Code No.
i
K3881-7121-2
Código n°
©
KUBOTA Corporation 2018

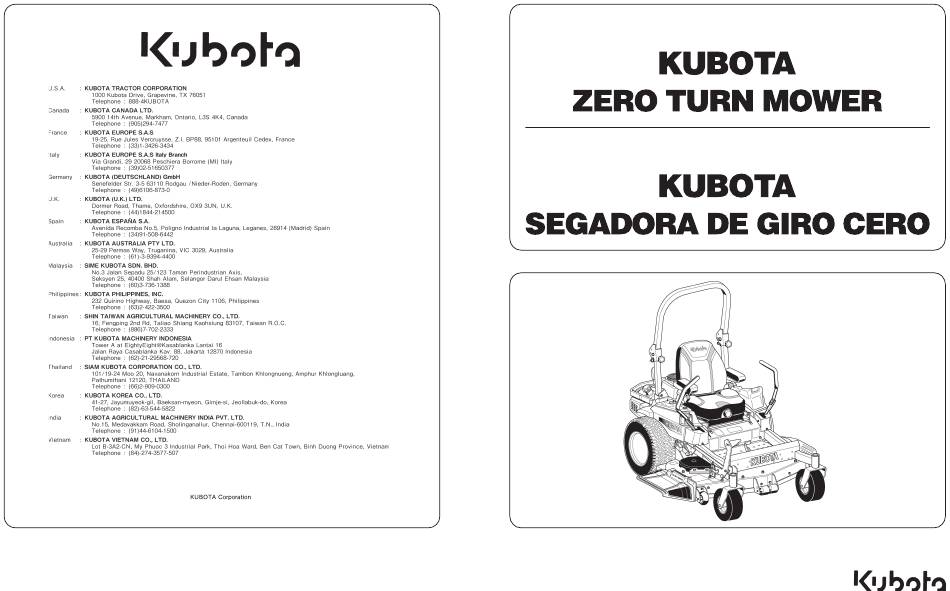

OPERATOR'S MANUAL
MANUAL DEL OPERADOR
1SJGJ00001A01
READ AND SAVE THIS MANUAL
LEA Y CONSERVE ESTE MANUAL
MODELS
Z751KWi
MODELOS
Z781KWi
Z781KWTi
