E2S D1xC1X05RDC024-D Instruction Manual page 6

Config. Voltage Configuration Description
1a/5a DC
1b/5b DC
1c/5c DC
2/6 DC
3/7 DC
4/8 DC
1a/2a AC
1b/2b AC
Table 3: Summary of Wiring Options. See Document D190-06-301 for DC Schematic Diagrams; D190-06-305 for AC Schematic
Diagrams.
9) End of Line Monitoring (DC Units)
9.1 Standard DC End Of Line Monitoring
All DC units have a blocking diode fitted in their supply input lines. An
end of line monitoring diode or an end of line monitoring resistor can
be connected across the +ve and –ve terminals in the flameproof
chamber. If an end of line resistor is used it must have a minimum
resistance value of 3k3 ohms and a minimum wattage of 0.5W or a
minimum resistance value of 500 ohms and a minimum wattage of 2W.
The resistor must be connected directly across the +ve and -ve
terminals as shown in the following drawing. The resistor leads should
be kept as short as possible. See D190-06-001 for details.

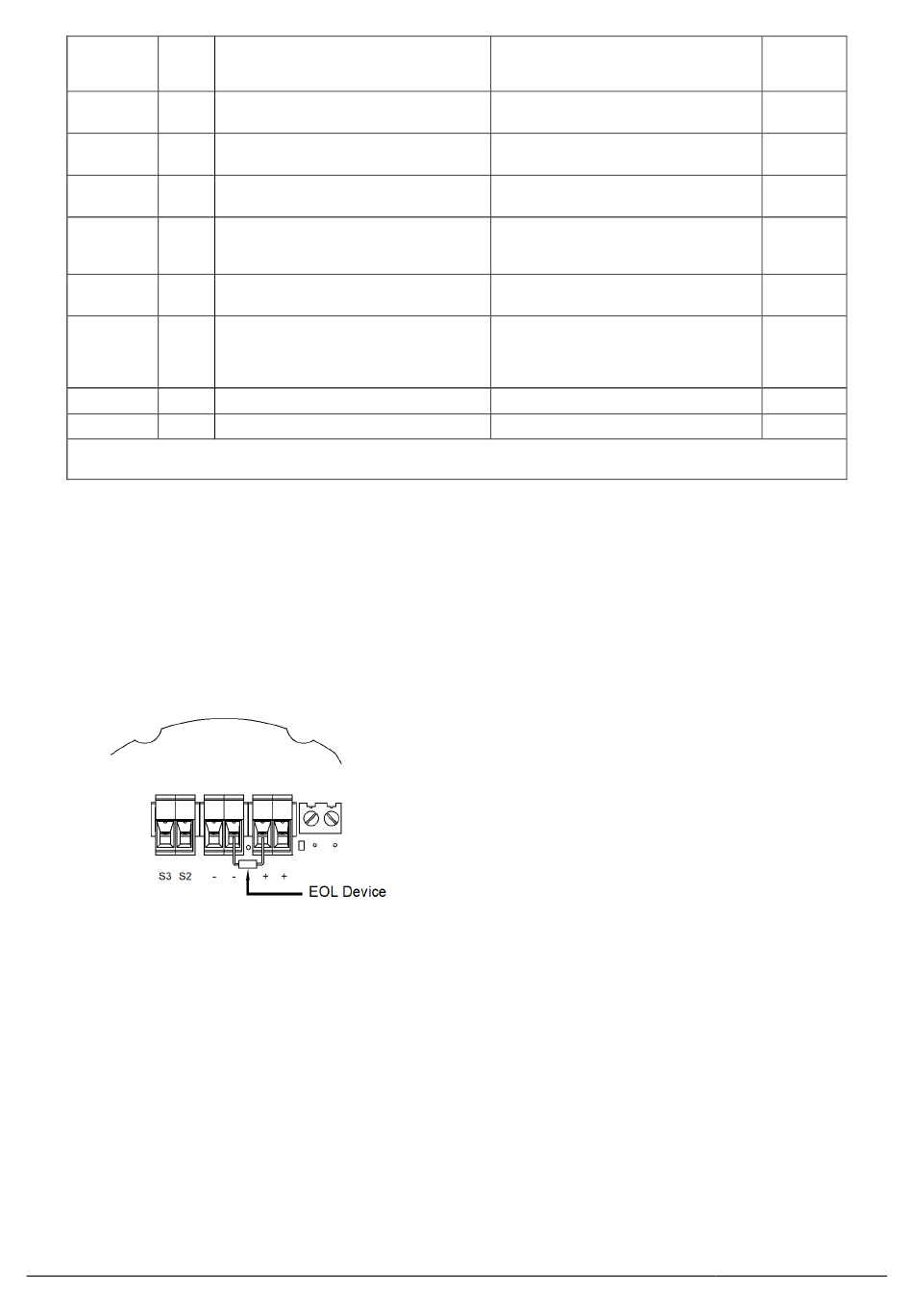

Figure 11: End of Line Resistor placement.
.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D190-00-351-IS
Single Stage Configuration
Two Stage Configuration
Three/Four Stage Configuration
Three/Four Stages. Voltage Free 2nd, 3rd &
4th Stage Activation Configuration
Two Stage Configuration
Two Stage Configuration
Single Stage Configuration
Three/Four Stage Configuration
Issue 1 21-03-2022
Features
•
Line monitoring
•
Positive Switching
•
Common Negative
•
Positive Switching
•
Common Negative
•
Positive Switching
•
Common Positive
•
Customer Set H1 & H2 to Negative
Switching
•
Independent Stage Input
•
Reverse Polarity Stage Monitoring
•
Line Stage Monitoring (Use suitable
monitoring relays/ modules)
•
Not to be used in reverse polarity
monitoring
•
10) Maintenance, Overhaul and Repair
Maintenance, repair and overhaul of the equipment should only be
carried out by suitably qualified personnel in accordance with the
current relevant standards.
Units must not be opened while an explosive atmosphere is present.
If opening the unit during maintenance operations, a clean
environment must be maintained and any dust layer removed prior to
opening the unit.
Potential electrostatic charging hazard – Clean only with a damp cloth
www.e2s.com
Product
Option
Identifier
1
1
1
1
1
Y
1
1
Tel: +44 (0)208 743 8880
Sheet 6 of 6
