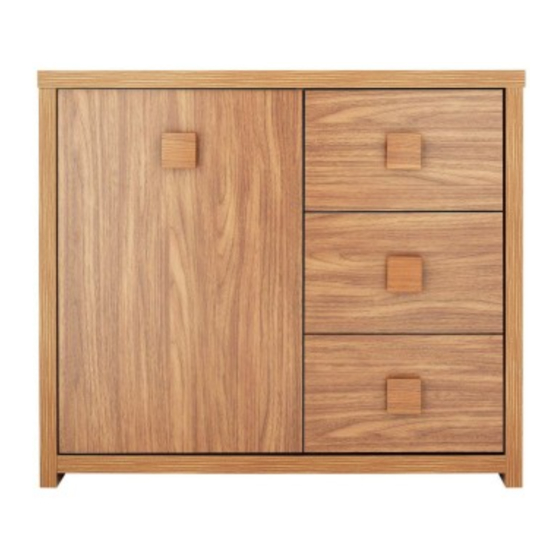

Eden - 3+1 Sideboard

Assembly Instructions -

Dimensions

Width - 98.5cm

Depth - 38.1cm

Height - 83.2cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, please visit www.argos-support.co.uk

or email: Help@ClickSpares.co.uk (quoting your original order number)

Alternatively, call the Spares Helpline on: 0370 112 1928.

For any other queries please contact the Customer Helpline on: 0345 640 2020

Please keep for future reference

397/8799

411/3508

MADE IN

BRITAIN

Issue 1 - 20/07/15

Need help?

Do you have a question about the 97/8799 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eden 97/8799

Page 1 Eden - 3+1 Sideboard Assembly Instructions - 397/8799 Please keep for future reference 411/3508 Dimensions Width - 98.5cm Depth - 38.1cm MADE IN Height - 83.2cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number)
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 32kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 3 Components - Panels If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020 Please check you have all the panels listed below Left Side Right Side...
Page 4 Components - Fittings If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly.
Page 5 Assembly Instructions Step 1 Prepare the 3 drawer fronts Screw 2 metal dowels into each of the drawer fronts Note: Tighten the metal dowels up fully against the panels. Step 2 Prepare the drawer sides Insert a small locking into the hole shown on the left drawer side and the right...
Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the large drawer sides and down into the groove in the large drawer front Step 5 Fit the large drawer back Fit the large drawer back between the large drawer sides Make sure that the...
Page 7 Assembly Instructions Step 8 Prepare the divider Place 3 runners the divider as shown. Finished Slide back the top of front edge runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into the corresponding hole...
Page 8 Assembly Instructions Step 9 Prepare the base Push 4 hollow core locking nuts into the base , making sure that they are flush against the panel’s surface. Using a hammer, tap in the pin on the hollow core locking nut Note: The pin should be tapped in flush with the top surface of the hollow...
Page 9 Assembly Instructions Step 10 Fit the divider to the base Push the divider onto the base Use a screwdriver to tighten the 2 large locking nuts fitted to the divider Note: Turn the large Finished locking nuts as far as front edge they will go - more than 1/2 a turn.
Page 10 Assembly Instructions Step 12 Prepare the right side Place 3 runners the right side shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and Finished fit the 2nd screw into...
Page 11 Assembly Instructions Step 13 Fit the base to the right end Push the base onto the right end The 2 small metal dowels fitted to the right end must slide into the top of the 2 hollow core locking nuts fitted to the base .
Page 12 Assembly Instructions Step 15 Fit the top Push the top onto the right end and the divider The 2 hollow core locking nuts fitted to the right end must slide over the 2 small metal dowels fitted to the top . Finished front edge Insert a screwdriver into the 2 hollow core locking...
Page 13 Assembly Instructions Step 17 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
Page 14 Assembly Instructions Step 19 Fit the shelf Insert 4 shelf studs Lower the shelf down onto the shelf studs Step 20 Prepare the door Push fit 2 hinges into the door Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees...
Page 15 Assembly Instructions Step 21 Fit door and handle Note: The easiest way to attach the door is to fit the top hinge first, then align and fit the bottom hinge. Push the hinge onto the front part of the hinge plate Keep the hinge FLAT against the hinge plate...
Page 16 Assembly Instructions Step 22 Adjust the door if needed Before adjusting the door, use a spirit level to check the top (or base) of the unit is level, front- to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any...
Page 17 Assembly Instructions Step 23 Example Attach the Attach the Fit the overbalance Screw strap to the wall strap to the unit protector kit Washer Wall fixing Strap To prevent possible Strap (not supplied) overbalancing we Washer recommend that this unit is secured to a suitable Screw wall by fitting of the...
Page 20 ALR3156...
