Trust DS-4500X Product Information

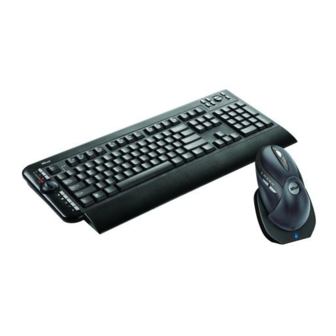

DS-4500X Wireless Laser Deskset
Product information
Mouse Keyboard
A: Right button K: Standby button
B: Scroll wheel Button L: Logon/off button
(Lit flashing: low battery) M: Office function keys button
C: Left button N: Low battery LED
D: Browser backward button O: Scroll wheel
E: Browser forward button P: Open default homepage
F: Connect button Q: Open default email program
G: Battery compartment R: Open My computer
I: Charging connection S: Search
J: Motion sensor T: Open MSN messenger
U: Open media player
V: Media play buttons
W: Battery compartment
X: Stand
Y: Palm rest
Z: Connect button
Installation
1
Insert NiMH RECHARGEABLE batteries
2 Connect power to cradle
1) Put mouse in cradle
2) Indicator lit
3
st
charge batteries 8 hrs before 1 time use
4 Insert ALKALINE batteries
5 PC off
Connect PS2 plugs
- Mouse: green
- Keyboard: purple (with USB/PS2 converter)
6
This deskset can also be connected via USB (black). When use USB, do NOT connect any PS2
connectors!
1) Computer on
2) Receiving indicator lights
7
Windows 98SE needs Windows CD-ROM at startup when using USB connection
Connect Mouse
1) Press connect button
8
2) Receiving indicator flashing
9 Press connect button
Connect Keyboard
10 1) Press connect button
Cradle/Receiver
1: Receiving indicator
Lit steady: powered
Lit flashing: active
2: Mouse holder
3: Charging plates
4: Charging indicator
Lit steady: charging
Lit flashing: fully charged
5: Connect button
6: Power connector
7: USB, PS/2 combo cable
8: PS2 mouse connector
9: USB/PS2 keyboard converter
10: USB connector
1
UK
