USER GUIDE FOR SIGFOX-READY
AMMONIA GAS SENSOR WITH BLE
WSSFCB-NH3
WSSFC- NH3-MN-EN-01
This document is applied for the following products
SKU
WSSFCB-NH3
WSSFCB-NH3-8-01
Item Code
WSSFCB-NH3-9-01

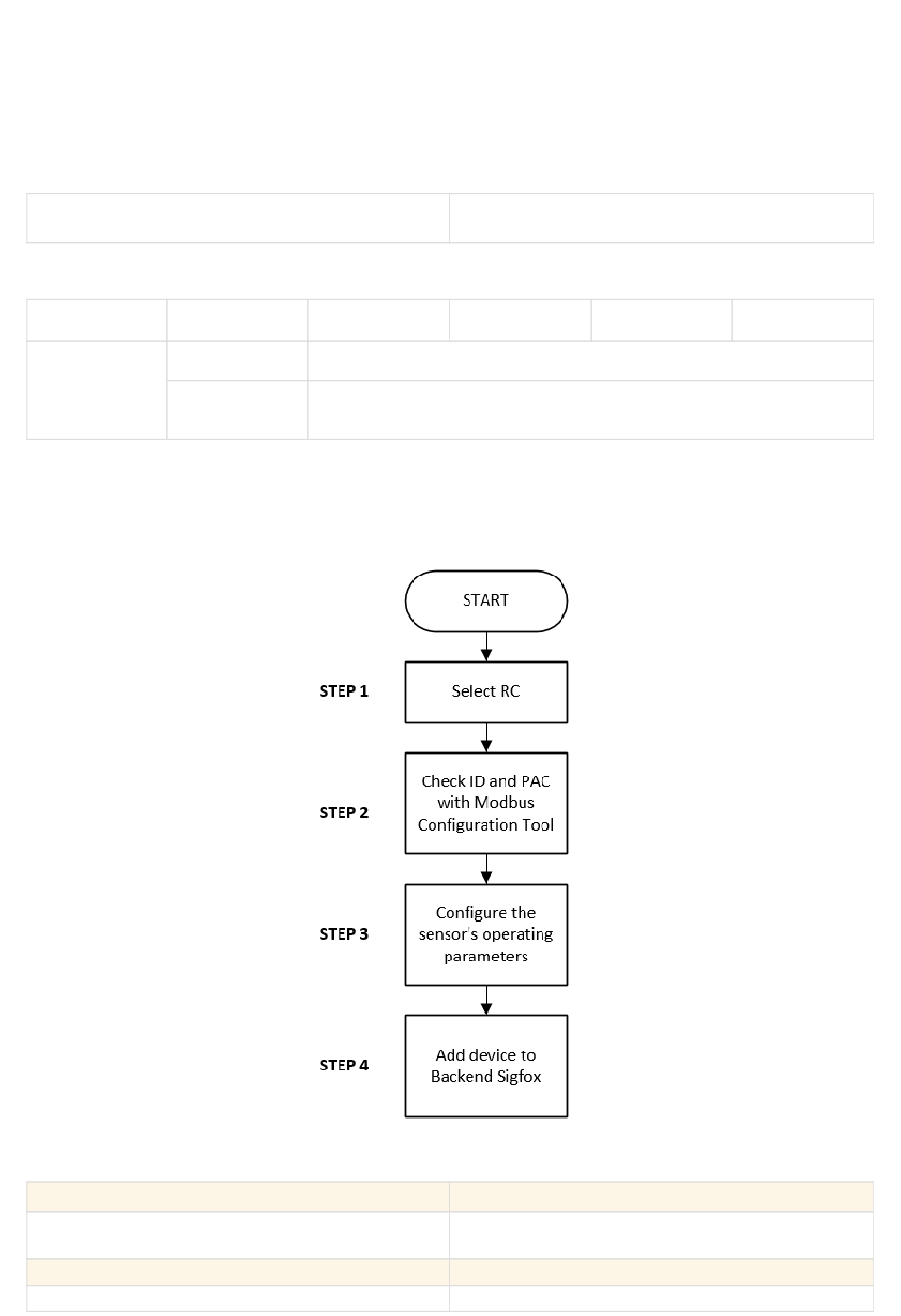

0. Configuration Check List
STEP 1: Select RC
1. Select RC zone
STEP 2: Check ID and PAC
Use Modbus Configuration Cable to read the ID and PAC values
HW Ver.
1.1
Wireless Sigfox Ammonia Gas Sensor with BLE, Internal antenna, Type AA battery 1.5VDC, IP67,
RC1 zone
Wireless Sigfox Ammonia Gas Sensor with BLE, Internal antenna, Type AA battery 1.5VDC, IP67,
RC2-RC4 zones
RC zones selection 1, 2, 4,... is RCZ1, RCZ2, RCZ4,... (refer to
6)
Refer to register address 8 and 10 (DEC)
FW Ver.
1.0
AUG-2021
section
