USER GUIDE FOR SIGFOX
ULTRASONIC LEVEL SENSOR
WSSFC-ULC
WSSFC-ULC -MN-EN-01
This document is applied for the following products
SKU
WSSFC-ULC
WSSFC-ULC-9-01
Item Code
WSSFC-ULC-8-01
0. Configuration Check List
STEP 1: Select RC
1. Select RC zone
using Modbus Configuration Cable
2. Select RC zone using button
HW Ver.
1.1

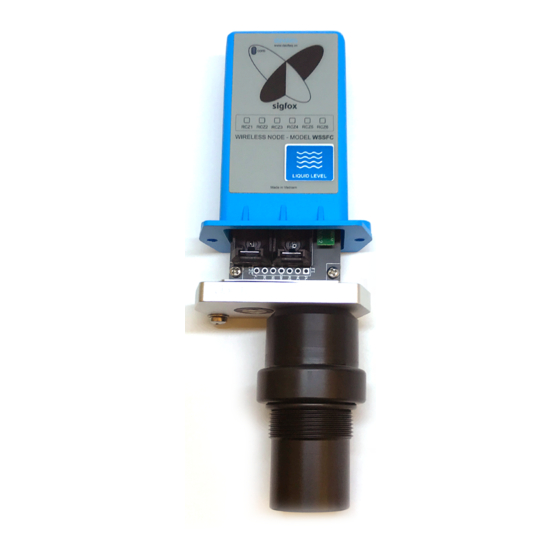

Sigfox Ultrasonic Level Sensor for General Level/Distance Measurement, 30-600CMS, Internal
antenna, Type AA battery 1.5VDC, IP67, RC2-RC3-RC4-RC5 zones
Sigfox Ultrasonic Level Sensor for General Level/Distance Measurement, 30-600CMS, Internal
antenna, Type AA battery 1.5VDC, IP67, RC1-RC6-RC7 zones
RC zones selection 1..6 is RCZ1 .. RCZ6 (refer to register address 270)
Refer to the button configuration
FW Ver.
1.0
DEC-2020
