OPERATOR'S MANUAL
POWDERSAFE
™
DUCTLESS BALANCE ENCLOSURE
TYPE C
Models:
760C and 765C
770C and 775C
780C and 785C
Raleigh, NC 27604 USA
Phone: 919-255-3220 • Toll Free: 800-849-0472 • Fax: 919-255-6120
Website: www.aircleansystems.com • Email: info@aircleansystems.com
* Product designs are subject to change without notice.
© 2005 AirClean
Systems, Inc. #ACOM03600PS-C
®
Advertisement
Table of Contents
Related Manuals for AirClean systems POWDERSAFE 760C
Summary of Contents for AirClean systems POWDERSAFE 760C

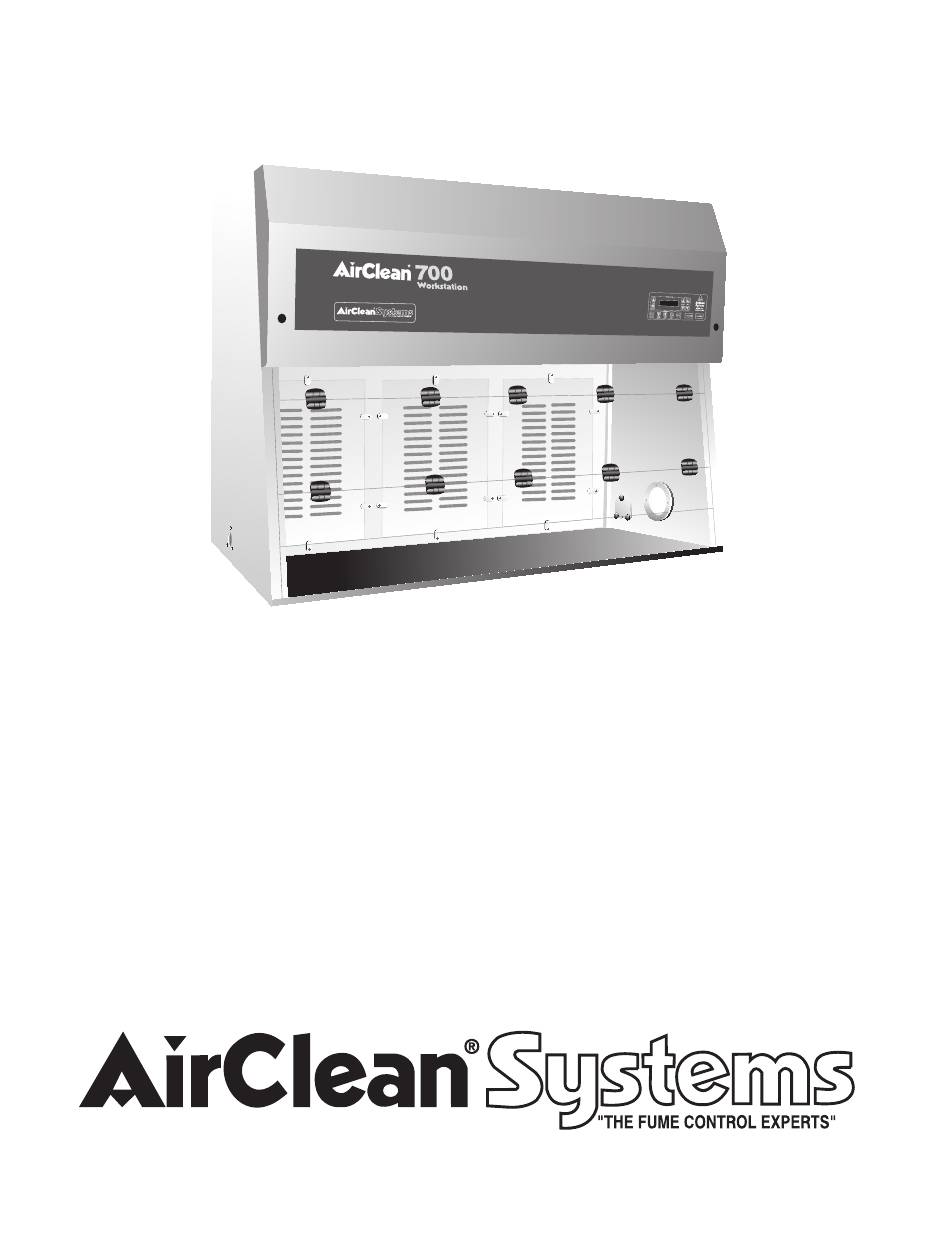

- Page 1 OPERATOR’S MANUAL POWDERSAFE ™ DUCTLESS BALANCE ENCLOSURE TYPE C Models: 760C and 765C 770C and 775C 780C and 785C Raleigh, NC 27604 USA Phone: 919-255-3220 • Toll Free: 800-849-0472 • Fax: 919-255-6120 Website: www.aircleansystems.com • Email: info@aircleansystems.com * Product designs are subject to change without notice. ©...
-
Page 2: Table Of Contents
CONTENTS SECTION PAGE Overview Technical Specifi cations Installation and Assembly Operating Instructions (for Powders and Particulate) and Alarm Messages Operating Instructions (for Fumes and Vapors) and Alarm Messages Airfl ow Path Controller Instructions Programming Menus 10-11 Quick Keys Maintenance: • Pre-fi lters •... -
Page 3: Overview

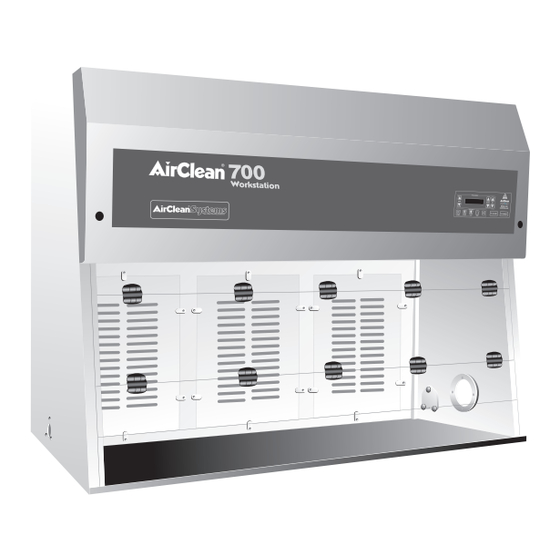

OVERVIEW Type C Enclosure AirClean Systems PowderSafe™ Type Systems PowderSafe™ Type ® ® ® C enclosures incorporate the airfl ow characteristics and HEPASafe™ fi ltration technology of the Type B enclosures while offering the chemical adsorption capability of our ductless fume hoods.The Type C enclosures provide effective operator protection from potential exposure to toxic powders, particulate, chemical fumes and... -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS SPECIFICATIONS AC760C AC770C AC780C Physical Dimensions Outside Dimensions 36”W x 30”D x 44”H 48”W x 30”D x 44”H 72”W x 30”D x 44”H Inside Dimensions 35”W x 25”D x 25”H 47”W x 25”D x 25”H 71”W x 25”D x 25”H Weight, including fi... - Page 5 TECHNICAL SPECIFICATIONS SPECIFICATIONS AC765C AC775C AC785C Physical Dimensions Outside Dimensions 36”W x 30”D x 54”H 48”W x 30”D x 54”H 72”W x 30”D x 54”H Inside Dimensions 35”W x 25”D x 35”H 47”W x 25”D x 35”H 71”W x 25”D x 35”H Weight, including fi...
-
Page 6: Installation And Assembly
INSTALLATION AND ASSEMBLY SHIPMENT CONTENTS • AirClean Systems PowderSafe™ enclosure complete Systems PowderSafe™ enclosure complete ® ® ® • Operator’s Manual • Power Cord • Optional Equipment (if ordered) INSTALLATION AND ASSEMBLY INSTRUCTIONS Caution: This enclosure should not be installed near doors, windows or air conditioning/ heating/ ventilation systems. -
Page 7: Operating Instructions (For Powders And Particulate) And Alarm Messages
OPERATING INSTRUCTIONS - POWDERS & PARTICULATE The following operating instructions are specifi c for containment of powders and particulate. NOTE: Ensure that the INSTALLATION AND ASSEMBLY INSTRUCTION steps have been completed. A. To operate the enclosure: 1. Before use, ensure that you are not using an incompatible substance within the enclosure. -
Page 8: Operating Instructions (For Fumes And Vapors) And Alarm Messages
OPERATING INSTRUCTIONS - FUMES & VAPORS The following operating instructions are specifi c for containment of fumes and vapors. NOTE: Ensure that the INSTALLATION AND ASSEMBLY INSTRUCTION steps have been completed. A. To operate the enclosure: 1. Before use, ensure that you are not using an incompatible substance within the enclosure. -
Page 9: Airflow Path
AIRFLOW PATH Type C Enclosure Sparkless / Brushless Blower AirSafe™ Automatic Safety Bonded Controller Carbon Filter Permanent HEPA Filter Primary HEPA Filter Pre-filter How the PowderSafe™ Type C works: 1) Air enters at “A” in an even horizontal laminar fl ow. 2) Contaminated air enters “B”... -
Page 10: Controller Instructions
CONTROLLER INSTRUCTIONS PROGRAMMING KEYS The AirSafe Automatic Safety Controller is the fi rst of its kind on the market. This ™ breakthrough was designed to give the user a variety of options with the ease of fi ngertip control. The controller board consist of 13 keys, each with a specifi c function: Allows the operator to move between MODE different program screens. - Page 11 PROGRAMMING MENUS BLOWER CONTROL – This menu is preset at the factory to meet O.S.H.A. face velocity standards while in AUTOMATIC mode. From this screen you can: • Turn the blower on/off. • Switch from automatic to manual blower speed based on the application. •...
-
Page 12: Quick Keys
QUICK KEYS ����������� ���� ������ ��� ����� ��� ���������� ����� ���� ��� ����� ����� ������ ���� ����� ����� Figure 6, AirSafe automatic safety controller layout ontroller layout ontroller ™ BLOWER - Default screen will continuously display face velocity while blower is activated. -
Page 13: Maintenance
MAINTENANCE Pre-fi lters Pre-fi lters should be checked each month. In most cases, they should be changed every 1 to 3 months. Prefi lter replacement is required when discoloration of the prefi lter occurs or when the low airfl ow alarm comes on. See the “PRE-FILTER CHECK/REPLACEMENT” section of this manual for complete instructions. - Page 14 MAINTENANCE FILTER REPLACEMENT A. To remove the spent ACFHEPA fi lter: 1. Turn the unit on and make sure that the blower is running. The safety fi lter, located in the top of the workstation, will protect you from any residual powders that might come off of the saturated primary HEPA fi...
-
Page 15: Options
OPTIONS AIRCLEAN SYSTEMS CART ASSEMBLY INSTRUCTIONS SYSTEMS CART ASSEMBLY INSTRUCTIONS ® ® ® Model ACA1011 and ACA1039 Your AirClean Systems Cart is shipped with Systems Cart is shipped with the following components: ® ® ® 4 - Cross pieces 8 - 1¼” washers (cross piece washers) 2 - End pieces 4 - 1¾”... - Page 16 CART COMPONENTS Mounting Holes 4 - ⅜” Washer 8 - 1¼” Washer Hole 1 Hole 2 Hole 3 Hole 4 4 - 1¾” x ¼” Bolt 8 - 2” x ¼” Bolt Hole 5 4 - Cart Cross Piece BOTTOM 2 - Cart End Piece 2 - Standard Caster 2 - Locking Caster...
-
Page 17: Spare Parts List
SPARE PARTS LIST CATALOG NO. DESCRIPTION AC760C AC770C AC780C 06-50480 Ball Stud 10mm 10-52517 Capacitor - 17.5 µF 10-50805 Capacitor - 20 µF 10-52880 Chip Controller 10-52259 Fan - G2E140 10-50268 Fan - G2E146 10-51335 Fluorescent Display 10-51495 Fluorescent Fixture 20w 10-51517 Fluorescent Fixture 30w 10-50428... - Page 18 SPARE PARTS LIST CATALOG NO. DESCRIPTION AC765C AC775C AC785C 06-50480 Ball Stud 10mm 10-52517 Capacitor - 17.5 µF 10-50805 Capacitor - 20 µF 10-52880 Chip Controller 10-52259 Fan - G2E140 10-50268 Fan - G2E146 10-51335 Fluorescent Display 10-51495 Fluorescent Fixture 20w 10-51517 Fluorescent Fixture 30w 10-50428...
-
Page 19: Warranty
WARRANTY AirClean tems is committed to providing our customers with quality equipment and service after ® ® ® the sale. We, therefore, request that you take a moment to fi ll out the Warranty Registration Card so that we may know your location as well as some of the reasons that prompted you to purchase our product. -
Page 20: Shipping Claims
SHIPPING CLAIMS If a shipment is received with visible damage, be certain to make a notation on the delivering carrier’s receipt and have their agent confi rm the damage on your receipt. Otherwise, the damage claim may be refused. If concealed damage or pilferage is discovered, notify the carrier immediately and retain the entire shipment intact for inspection. -
Page 21: Contact Information
CONTACT INFORMATION If you have any questions that are not addressed in this manual, or if you need technical assistance, please contact AirClean Systems a Systems a t 800-849-0472, between the hours of 8:00 AM and 5:00 PM EST. ® ®... - Page 22 Raleigh, NC 27604 Phone: 919-255-3220 Toll Free: 800-849-0472 Fax: 919-255-6120 E-mail: info@aircleansystems.com * Product designs are subject to change without notice. © 2005 AirClean Systems, Inc. Systems, Inc. ® ® ® #ACOM03600PS-C...
