Summary of Contents for G.S.M Activate RS - SWV14

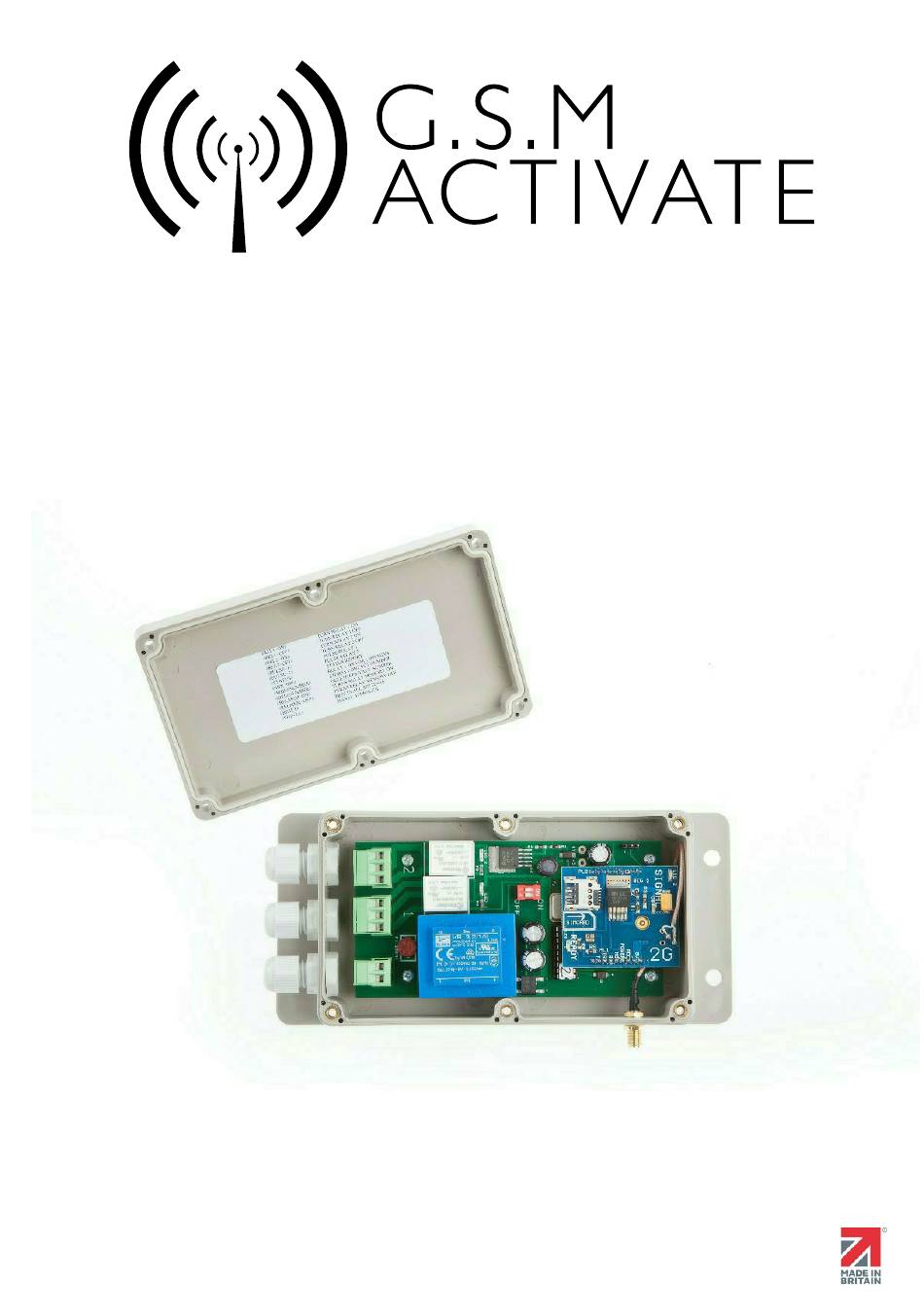

- Page 1 GSM 240V ROLLER SHUTTER Page 1 MODEL NUMBER - RS - SWV14...
-
Page 2: Product Information
Product Information The GSM Roller Shutter/Opener incorporates a professional industrial grade GSM engine that receives calls at its SIM number as any ordinary mobile phone. The system operates in the GSM module quad-band frequency 850/900/1800/1900Mhz, Just to give an example, if your SIM has a phone number 07123456789, that is the number you have to call to open the shutter door. -
Page 3: Important - Please Read
INSTRUCTIONS IMPORTANT - PLEASE READ Please make sure you disconnect the power when you fit the simcard. Then place the simcard with the clipped corner facing outwards. As seen in image above. Connect 240 volts to the input connector as per figure 1. Once the power has been applied the blue network LED will flash once every second. - Page 4 How to program the roller shutter opener. Text message entry The unit has a caller ID function so only authorised numbers you store can activate the unit. If caller ID is left OFF anyone phoning the units number can operate the relays. To turn caller ID on send the text message #ID=ON# To turn caller ID off send the text message...
-
Page 5: Factory Reset
How to Use the Roller Shutter Opener Depending on your roller shutter control board, you may need a short pulse or a long pulse to operate your roller shutter. You can select the pulse setting by using Dipswitch 2 on the board - refer to picture on Page 3 Dipswitch 2 On = 30 second pulse Dipswitch 2 Off - 1 second pulse... - Page 6 Page 6 www.gsm-activate.co.uk - 01273462380 - sales@gsm-activate.co.uk...
-
Page 7: Quick Reference
Quick Reference For more technical support please browse the FAQ’s on our website www.gsm-activate.co.uk Alternatively email our technical support team at technical@gsm-activate.co.uk and we will do our best to reply within 24 hours Monday - Friday. 27/09/21 - GD Page 7...
