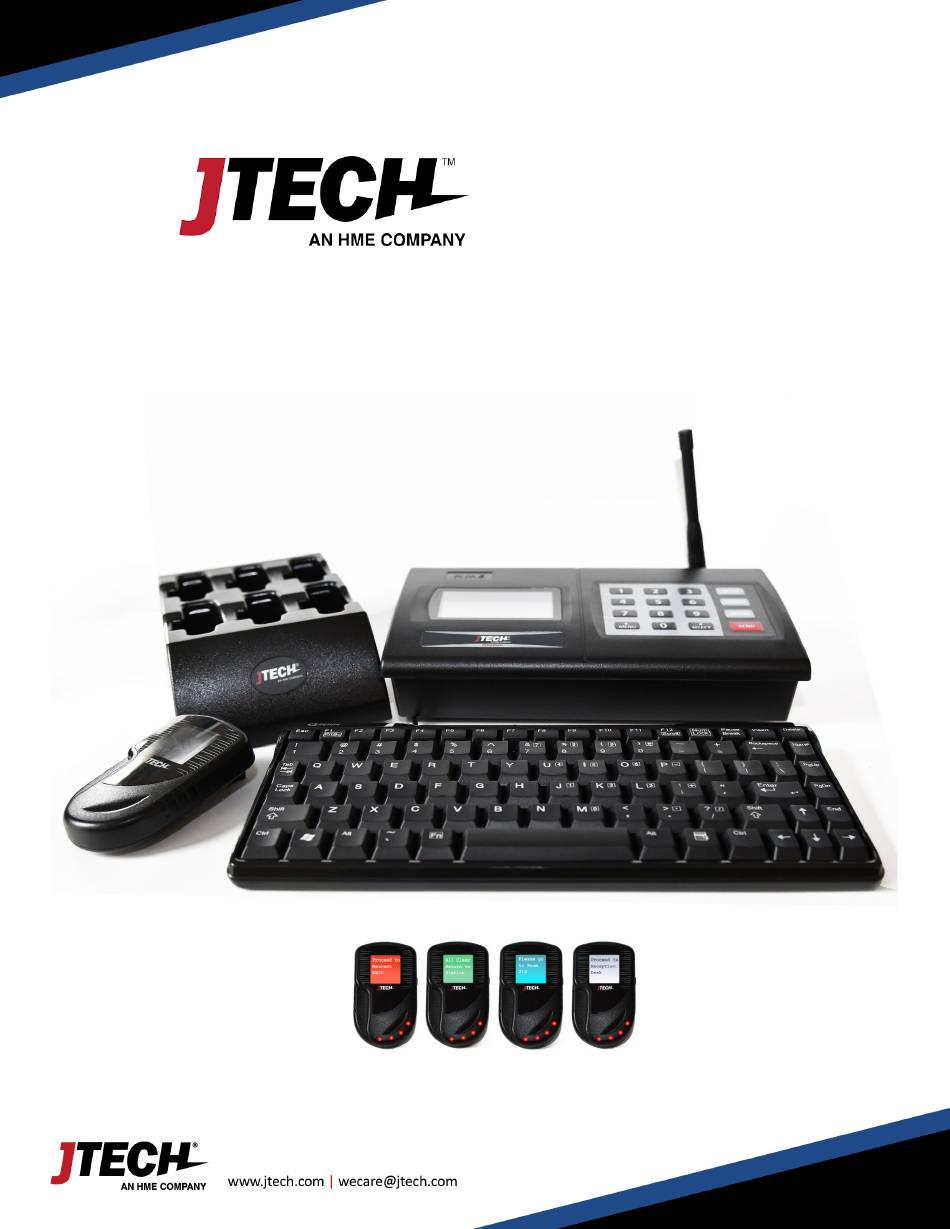

- Page 1 User Manual SmartCall Alert SmartCall Alert Paging System ® Page 1...
- Page 2 User Manual SmartCall Alert Components 1+ SmartCall Alert Pagers PN# SALPRG100 (JP2021) Six Unit Charger PN# CCKIT6 Twelve Unit Charger PN# CCKIT12 IStation Transmitter PN# TXIST Mini Keyboard PN# ISKEY Page 2...
- Page 3 User Manual SmartCall Alert Paging System Setup Transmitter: Unwrap all transmitter components. Lock the antenna into the hole in the upper right-hand corner of the transmitter and twisting left to lock in place. Plug the power supply with the large tip into a standard 110-220v outlet and plug it into the back of the transmitter.
-
Page 4: Transmitter Mounting Instructions
User Manual SmartCall Alert Transmitter Mounting Instructions DESKTOP You can use your transmitter with the 20-degree wedge attached or remove the wedge and lay the transmitter flat. WALL MOUNT To mount your transmitter on a wall: Remove the plastic bracket (included) under the transmitter unit by unlocking the 2 latches. -
Page 5: System Configuration
User Manual SmartCall Alert System Configurations System Configuration: Your system was set at the factory and will function as soon as it is powered up. Default setup is as follows: Current time is set. Sleep shutdown is off. Range Test is off. (Testing range is only necessary for very large properties) Pagers are set to Flash &... - Page 6 User Manual SmartCall Alert Do Range Test (Factory Default: OFF) With this feature you can determine what distance your base station will cover. The factory default setting is OFF. Start walking away from the Transmitter unit, when you have reached a point where ALL 3 pagers do not receive 2 consecutive pages then you are out of range, you must go back several steps until the pager starts alerting again without losing signal.
- Page 7 User Manual SmartCall Alert Set the Pager Alert Time or Type: Use this feature to change the way your pagers alert. To make sure all pagers will have same programming be sure that all pagers are returned to the charging base. The factory default for staff pagers is VIBE ONLY.
- Page 8 User Manual SmartCall Alert Set the “Out of Range” Alert With this feature enabled, the pagers will play a melody or voice when taken out of range of the base station to inform the guest that they are too far away and will miss their page. The melody or voice will automatically stop when they step back within range.
-
Page 9: System Operation
System Operation Handing out the Pagers: 1. Remove a SmartCall Alert pager from the charger. 2. The pager will vibrate to preview what the alert will look like for the staff. 3. Hand the pager to the staff/guest, stating that the pager will go off with they have been paged. - Page 10 User Manual SmartCall Alert Adding or changing the stored Alpha preset messages: To create a new pre-programmed message, follow the procedure below: 1. At the “Default Alpha Message” menu, press the “#/Select” key to turn the messages “ON”, then press “ENTER”.
- Page 11 To Read and Delete Received Messages To Read Received Messages: The SmartCall Alert pagers can store up to 20 messages received. The incoming message is automatically stored when received. To read the message received, from standby mode, press the side button once.
- Page 12 JTECH Pager Cleaning Due to the nature of the Polycarbonate materials used when manufacturing our products, it is imperative that specific instructions are followed closely to ensure that all JTECH products remain in optimum condition. The safest and MOST EFFECTIVE way to clean our products is to wipe them down thoroughly with a damp cloth and allow them to air dry.
-
Page 13: Frequently Asked Questions
What is the expected battery life? Can I buy replacements? JTECH batteries should last up to 2 years with proper use. Try charging the pager before considering replacement batteries. If after 4 hours the pager charging light still displays amber, contact JTECH to order replacement batteries. - Page 14 Control point: 1400 Northbrook Parkway, Suite 320, Suwanee, GA 30024 If you require a copy of the license, you can contact JTECH, an HME Company, or obtain one from the FCC web site (www.fcc.gov). You may, however, want to apply for your own FCC license. Whether you use JTECH, an HME Company’s, FCC license or obtain your own, you are responsible for complying with the FCC rules and requirements...
