SM35Performance Headset Condenser Microphone
SM35 Headworn Microphone
The Shure SM35 is a headworn electret condenser microphone, intended for use with a
wireless bodypack transmitter in live stage performances.
Wearing the Microphone

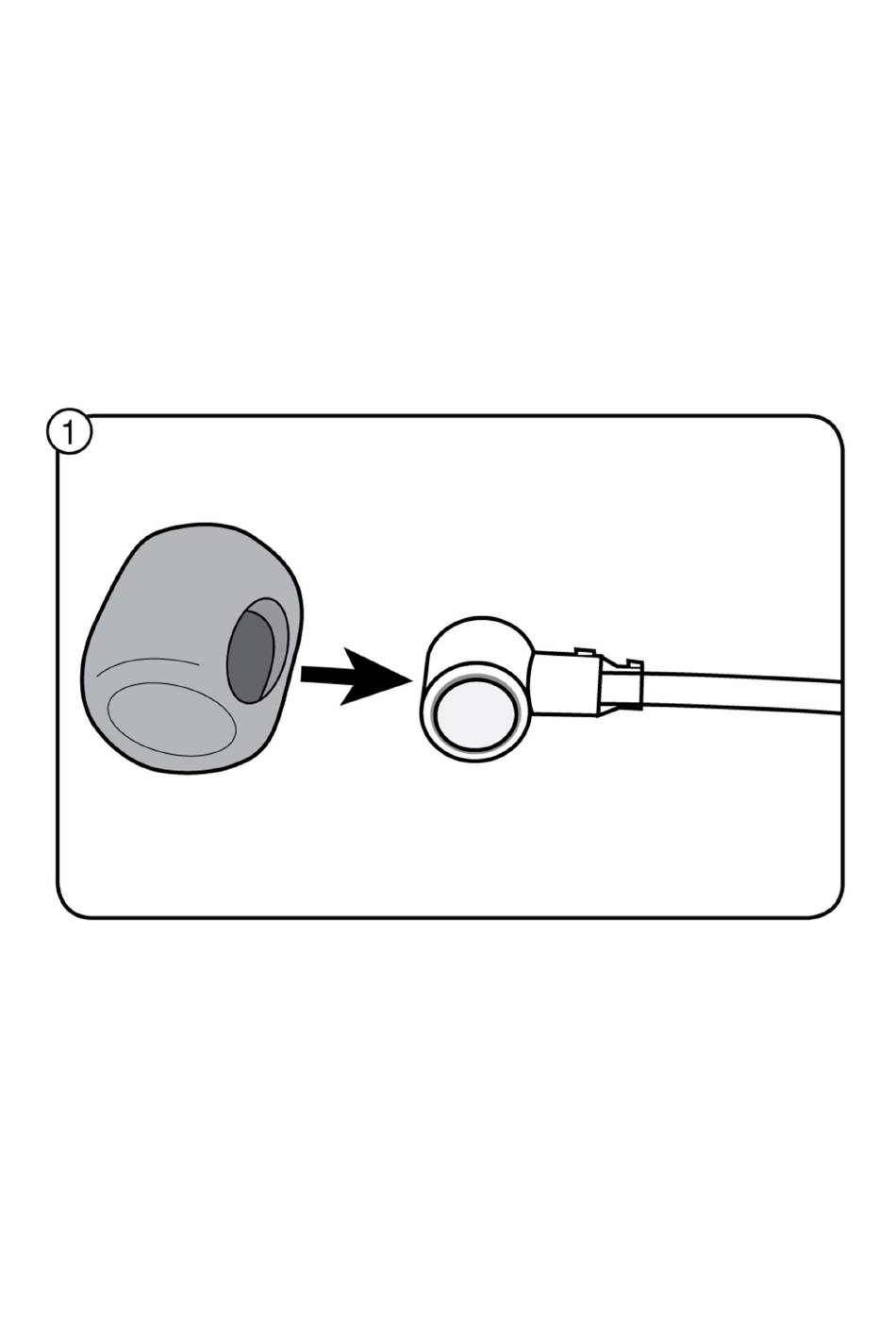

1. Install the windscreen on the microphone boom.
2. Place the headband around the back of the head, with the boom on the left side.
3. Place the microphone at the corner of the mouth. To decrease pops and plosives, avoid
placing the microphone directly in front of the mouth

Advertisement

loading

Related Manuals for Shure SM35

Summary of Contents for Shure SM35

  • Page 1 SM35Performance Headset Condenser Microphone SM35 Headworn Microphone The Shure SM35 is a headworn electret condenser microphone, intended for use with a wireless bodypack transmitter in live stage performances. Wearing the Microphone 1. Install the windscreen on the microphone boom. 2. Place the headband around the back of the head, with the boom on the left side.

  • Page 2: Specifications

    Note: Do not store the microphone in damp, enclosed spaces. Allow perspiration to dry completely before storing. Specifications Type Electret Condenser...

  • Page 3: Polar Pattern

    Frequency Response 40 Hz to 20,000 Hz Polar Pattern Unidirectional (Cardioid) Output Impedance @ 1 kHz 2400 Ω Audio Output Level -59.0 dBV/Pa Signal-To-Noise Ratio [1] @ 1 kHz 55 dB Maximum SPL [1] 1000 Ω load, 1 kHz@ 1%THD 153.0 dB Dynamic Range [1] @ 1 kHz, 1000 Ω...
  • Page 4 Connector Type TA4F XLR connector +5 V DC (nominal), 10 V maximum (DC bias) 12 to 52 V DC, phantom power Polarity Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 Cable 1.1 m (45 in.) Connector TA4F or XLR Net Weight...
  • Page 5 (screened) cable types may degrade EMC performance. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Headquarters Europe, Middle East & Africa Department: EMEA Approval Jakob-Dieffenbacher-Str. 12 75031 Eppingen, Germany...
