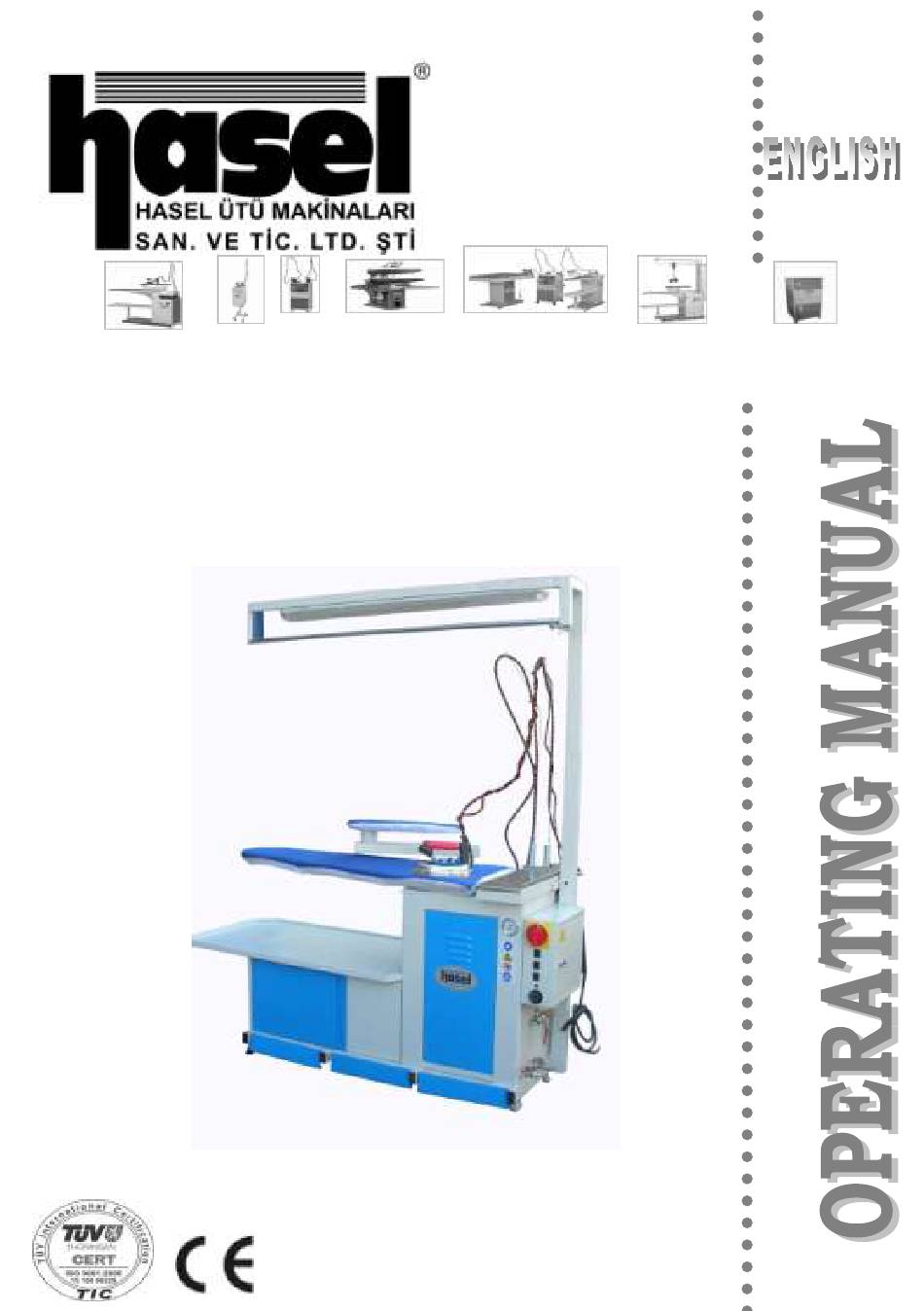

- Page 1 NARROW IRONING TABLE WITHIN BOILER, VACUUM , AIR-STEAM BLOWING AND LAMP ISO 9001:2000...
-
Page 2: Table Of Contents
Technique Drafting: ........:6-7 Part List: ............:8 Storage: ............:9 Transport And Handling: ......:9 General Safety Precautions: ......:10-11 Mounting Instructions: ........:12 Using Instructions: .......... :13 Maintenance Instructions: ......:14 Dismantling And Disposal: ......:14 HASEL ÜTÜ SAN.TİC.LTD.ŞTİ. -
Page 3: Manufacturer Information
Dear Customer, Firstly, congratulations for your selection. Hasel have been manufactured industrial type ironing machines since 1985 in Turkey. In production stage Hasel concerns about high quality, low price with no compensation of quality and no harm to nature HSL-KBBJ-02. This This manual contains information about usage of information intended to help operator. -
Page 4: Meaning Of Safety Symbols
MEANING OF SAFETY SYMBOLS Read the manual Repairs should be made before use by Qualified Person only Electricity High Temperature Main Grounding Internal Grounding Stop the machine before maintenance HASEL ÜTÜ SAN.TİC.LTD.ŞTİ. -
Page 5: Technical Specifications
7.5 kW Power of Surface Resist. 1.5 kW Power of Arm Resist. 0.5 kW Working Pressure 3,5 bar Water Tank Capa. 20 lt Steam Capacity 10 kg/h IP Code Ip 54 Dimensions 160*50*102 cm Gross Weight 124 kg HASEL ÜTÜ SAN.TİC.LTD.ŞTİ. -
Page 6: Technique Drafting
TECHNIQUE DRAFTING HASEL ÜTÜ SAN.TİC.LTD.ŞTİ. - Page 7 TECHNIQUE DRAFTING HASEL ÜTÜ SAN.TİC.LTD.ŞTİ.
-
Page 8: Part List
Vacuuming Pedal Feet Water Tank’s Cover Seat For Clothes Table Plate Swivel Arm Water Signal Lamb Spring Axis Seat For Iron Chimney Lamp Hand Iron Sockets Solenoid Valves Power Cable Steam Discharge Valve Water Discharge Valve Wheels Connector HASEL ÜTÜ SAN.TİC.LTD.ŞTİ. -
Page 9: Storage
If the machine placed in a wooden cage, remove the straps and take it out of the wooden structure. By putting on transpalette or lifting up; carry it to where you want to place. HASEL ÜTÜ SAN.TİC.LTD.ŞTİ. -
Page 10: General Safety Precautions
Use the identified spare parts and accessories in order to improve the security. If it is necessary change the damaged parts with the original ones. The manufacturer is not responsible any damage or injury because of using unoriginal parts. HASEL ÜTÜ SAN.TİC.LTD.ŞTİ. - Page 11 The machine can work between +5-40 °C 100 º C.Table cloths can be Do not work machine upper burned. IF THE USERS DO NOT FOLLOW THE CAUTIONS LISTED ABOVE MANUFACTURER WILL NOT BE RESPONSIBLE OF ANY ACCIDENT AND INJURIES HASEL ÜTÜ SAN.TİC.LTD.ŞTİ.
-
Page 12: Mounting Instructions
Mount the end of the iron hose to nipple of solenoid valve (21), mount the other end of iron hose to nipple of hand iron with hose clamps. Put the hand iron’s plugs to socket (20). HASEL ÜTÜ SAN.TİC.LTD.ŞTİ. -
Page 13: Using Instructions
Do not forget vacuuming continuously. This situation causes to get upper table wet by cooling and break motor down by warming extremely. 7. When need air blowing press pedal(8). 8. When need steam blowing press pedal(7). If need the arm heating open switch (5) HASEL ÜTÜ SAN.TİC.LTD.ŞTİ. -
Page 14: Maintenance Instructions
The usage life of the steam tube in the machine is 10 years. (By 8 hours working per day).When machine is gotten out of run, all its spare parts can be waste away to a junk yard. No parts contain any harmful material for environment. HASEL ÜTÜ SAN.TİC.LTD.ŞTİ. - Page 15 HASEL ÜTÜ SAN.TİC.LTD.ŞTİ.
- Page 16 HASEL ÜTÜ SAN.TİC.LTD.ŞTİ.
