Summary of Contents for HASEL HSL-GP-03S

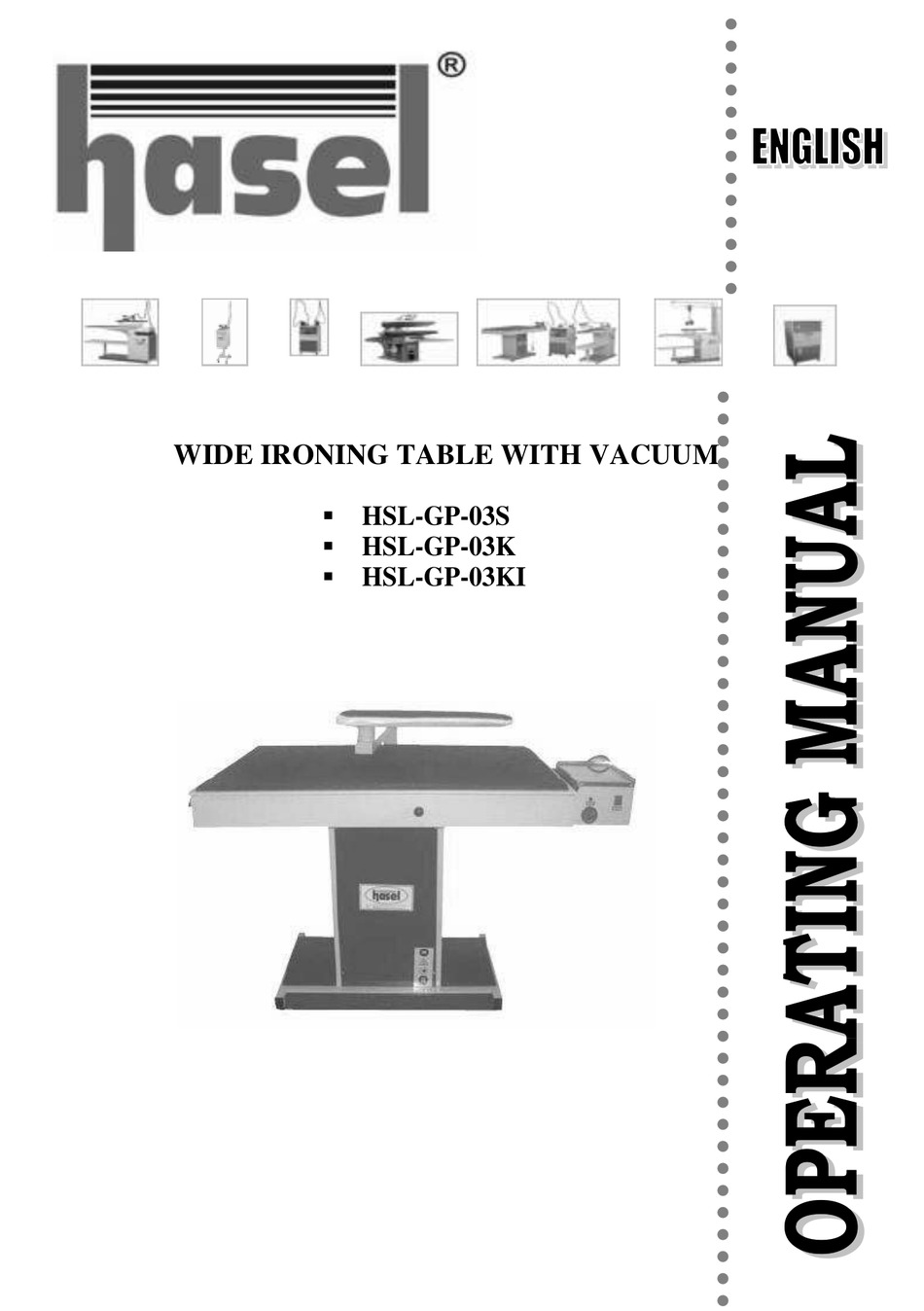

- Page 1 WIDE IRONING TABLE WITH VACUUM HSL-GP-03S HSL-GP-03K HSL-GP-03KI...
-
Page 2: Table Of Contents
Technical Specifications: ........ :5 Technique Drafting: ........:6 Storage: ............:7 Transport And Handling: ......:7 General Safety Precautions: ......:8-9 Mounting Instructions: ........:10 Using Instructions: .......... :10-11 Maintenance Instructions: ......:11 Trouble Fixing: ..........:12 HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. -
Page 3: Manufacturer Information
Firstly, congratulations for your selection.Hasel have been manufactured industrial type ironing machines since 1985 in Turkey. In production stage Hasel concerns about high quality, low price with no compensation of quality and no harm to nature. This manual contains information about usage of HSL-GP-03S, HSL-GP-03K, HSL-GP-03KI. -
Page 4: Meaning Of Safety Symbols
MEANING OF SAFETY SYMBOL Read the manual Repairs should be made before use by Qualified Person only Electricity High Temperature Main Grounding Internal Grounding Stop the machine Before maintenance HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. -
Page 5: Description And Intended Use

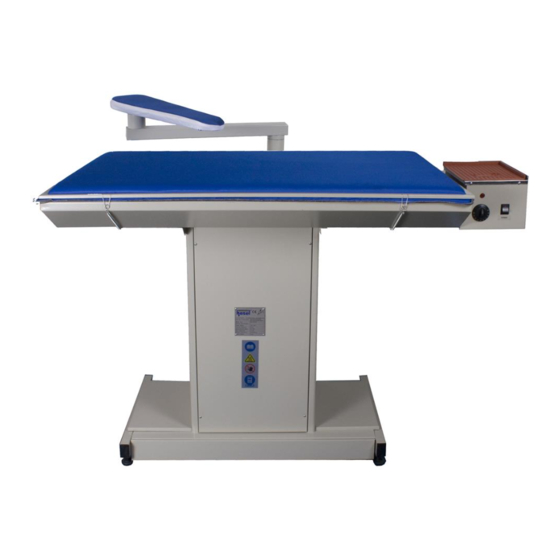

DESCRIPTION AND INTENDED USE Product Name: Wide Ironing Table With Vacuum Model No: HSL-GP-03S: Wide Ironing Table With Vacuum HSL-GP-03K: Wide Ironing Table With Vacuum and HSL-GP-03KI: Wide Ironing Table With Vacuum and Arm Heating. HSL-GP-03S, HSL-GP-03K,... -
Page 6: Technique Drafting
TECHNIQUE DRAFTING HSL-GP-03KI PART NAME Power Plug Main Switch Thermostat Thermostat Signal Lamp Changing Rod For Vacuuming Vacuum Pedal Feet Table Frame Swivel Arm Arm Heating Switch Seat For Iron HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. -
Page 7: Storage
If the machine placed in a wooden cage, remove the straps and take it out of the wooden structure. By putting on transpalette or lifting up; carry it to where you want to place. HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. -
Page 8: General Safety Precautions
Use the identified spare parts and accessories in order to improve the security. If it is necessary change the damaged parts with the original ones. The manufacturer is not responsible any damage or injury because of using unoriginal parts. HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. - Page 9 The machine can work in a closed area. The machine can work between +5-40 °C IF THE USERS DO NOT FOLLOW THE CAUTIONS LISTED ABOVE MANUFACTURER WILL NOT BE RESPONSIBLE OF ANY ACCIDENT AND INJURIES HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ.
-
Page 10: Mounting Instructions
C. Do not forget if machine works upper 100 C long time, table cloth can be burned. 3. For vacuuming just pres the vacuum pedal (6), as long as you pres pedal, you can get vacuuming. HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. -
Page 11: Maintenance Instructions
If you take away the protective parts during the maintenance, you have to careful not to touch hot places. Certainly you must turn off the electricity and steam out. End of working , turn the main switch.(2) Change table cloth when necessary. HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ. -
Page 12: Trouble Fixing
*Call electrician to wrong direction. check electricity connection to wall fuse. *Motor fan maybe *Call the service MOTOR broken. WORKS *Motor may be turning *Call electrician to LOUDLY wrong direction. check electricity connection to wall fuse. HASEL ÜTÜ SAN.TİC. ve LTD.ŞTİ.
