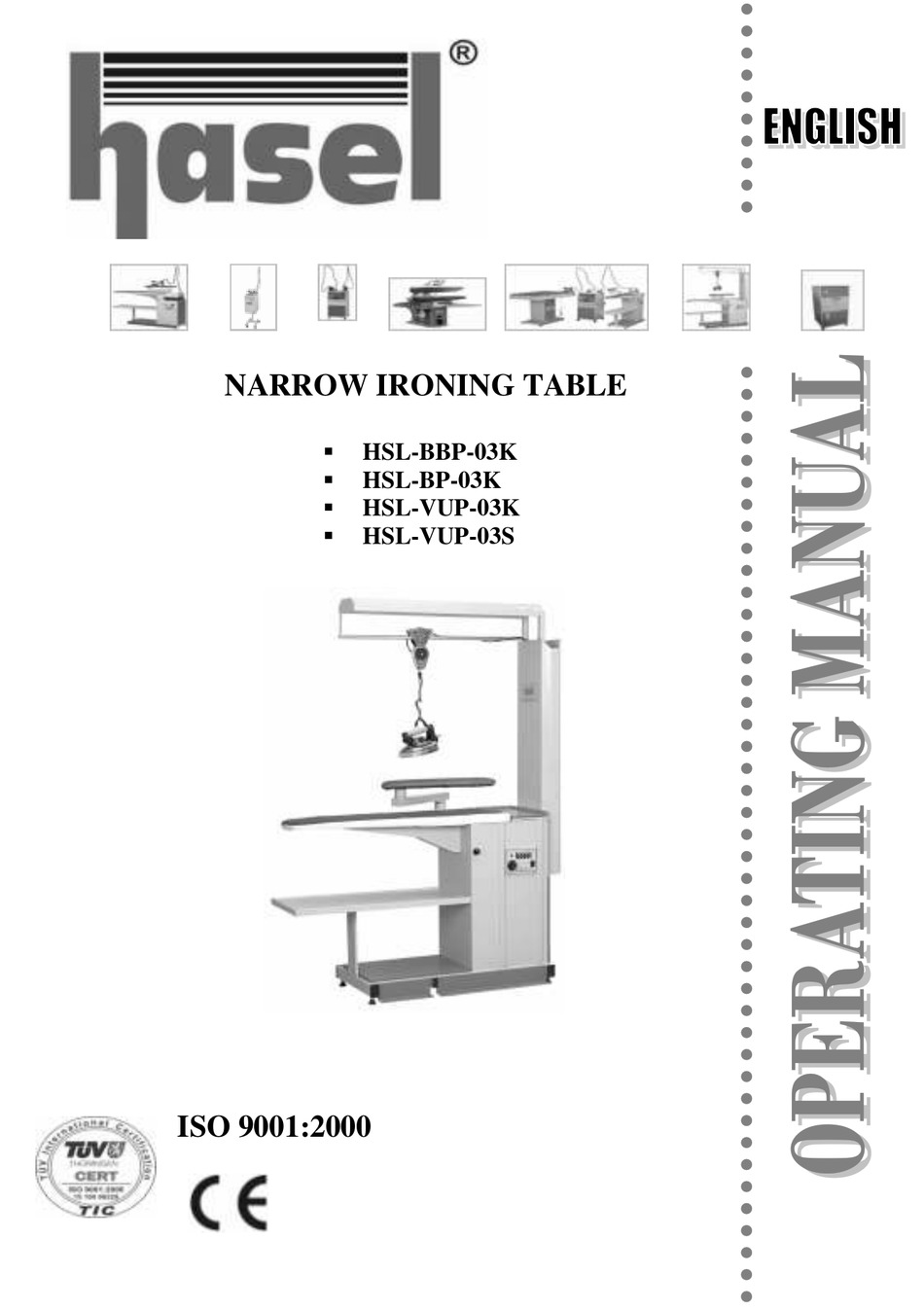

- Page 1 NARROW IRONING TABLE HSL-BBP-03K HSL-BP-03K HSL-VUP-03K HSL-VUP-03S ISO 9001:2000...
-
Page 2: Table Of Contents
: ..............:8 Transport And Handling : ........:9 General Safety Precautions :......:9-10 Mounting Instructions: ........:10 Using Instructions : ..........:11-12 Maintenance Instructions : ........:12 Trouble Fixing : ............:13 HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 2... -
Page 3: Manufacturer Information
1985 in Turkey. In production stage Hasel concerns about high quality, low price with no compensation of quality and no harm to nature. This manual contains information about usage of HSL-GP-03S, HSL-GP-03K, HSL-GP-03KI. -
Page 4: Meaning Of Safety Symbols
MEANING OF SAFETY SYMBOL Read the manual Repairs should be made before use by Qualified Person only Electricity High Temperature Main Grounding Internal Grounding Stop the machine Before maintenance HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 4... -
Page 5: Description And Intended Use
HSL-VUP-03K: Vacuum, Air-Blowing, Swivel Arm HSL-BP-03K: Vacuum, Air-Blowing, Swivel Arm, Chimney HSL-BBP-03K: Vacuum, Air-Blowing, Swivel Arm, Chimney, Lighting HSL-VUP-03S, HSL-VUP-03K, HSL-BP-03K and HSL-BBP-03K are wide type ironing tables. Used for ironing all types of clothes. Models with arm, makes ironing easier and better for arms of clothes. -
Page 6: Technical Specifications
Table Heating El. 1,5 kW 1,5 kW Arm Heating El. ----- ----- IP Code Ip 54 Ip 54 Dimensions 90*140*92cm 90*140*92cm Weight 61 kg 61 kg (arm heating resistance 0,5 kW ) HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 6... -
Page 7: Technique Drafting
TECHNIQUE DRAFTING HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 7... -
Page 8: Part List
Store the packed machine in an appropriate place, protected and not subject to bad weather. For a temporary lack of usage, clean it carefully and cover it with a cloth. Never subject to bad weather. HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 8... -
Page 9: Transport And Handling
Safe operation is enabling only if the operation manual is read entirely before attempting to operate the machine and all the content is conformed. Disorder in the working area increases risk of an accident. HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 9... - Page 10 Do not work machine upper 120°C long time. Table cover can be burned. IF THE USERS DO NOT FOLLOW THE CAUTIONS LISTED ABOVE MANUFACTURER WILL NOT BE RESPONSIBLE OF ANY ACCIDENT AND INJURIES HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 10...
-
Page 11: Mounting Instructions
3. For vacuuming just pres the vacuum pedal (6), as long as you pres pedal, you can get vacuuming. Do not forget vacuuming continuously. This situation causes to get upper table wet by cooling and break motor down by warming extremely. HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 11... -
Page 12: Maintenance Instructions
If you take away the protective parts during the maintenance, you have to careful not to touch hot places. Certainly you must turn off the electricity and steam out. End of working , turn the main switch.(1) Change table cloth when necessary. HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 12... -
Page 13: Trouble Fixing
WORKS *Motor may be turning *Call electrician to check LOUDLY wrong direction. electricity connection to wall fuse. THE UPPER *Thermostat (3) may be PLATE IS broken *Call the service GETTING VERY HOT HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 13... - Page 14 HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 14...
- Page 15 HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 15...
- Page 16 HASEL ÜTÜ SAN. ve TİC.LTD. ŞTİ Sayfa 16...
