Summary of Contents for Green Furniture Concept Nova C Series

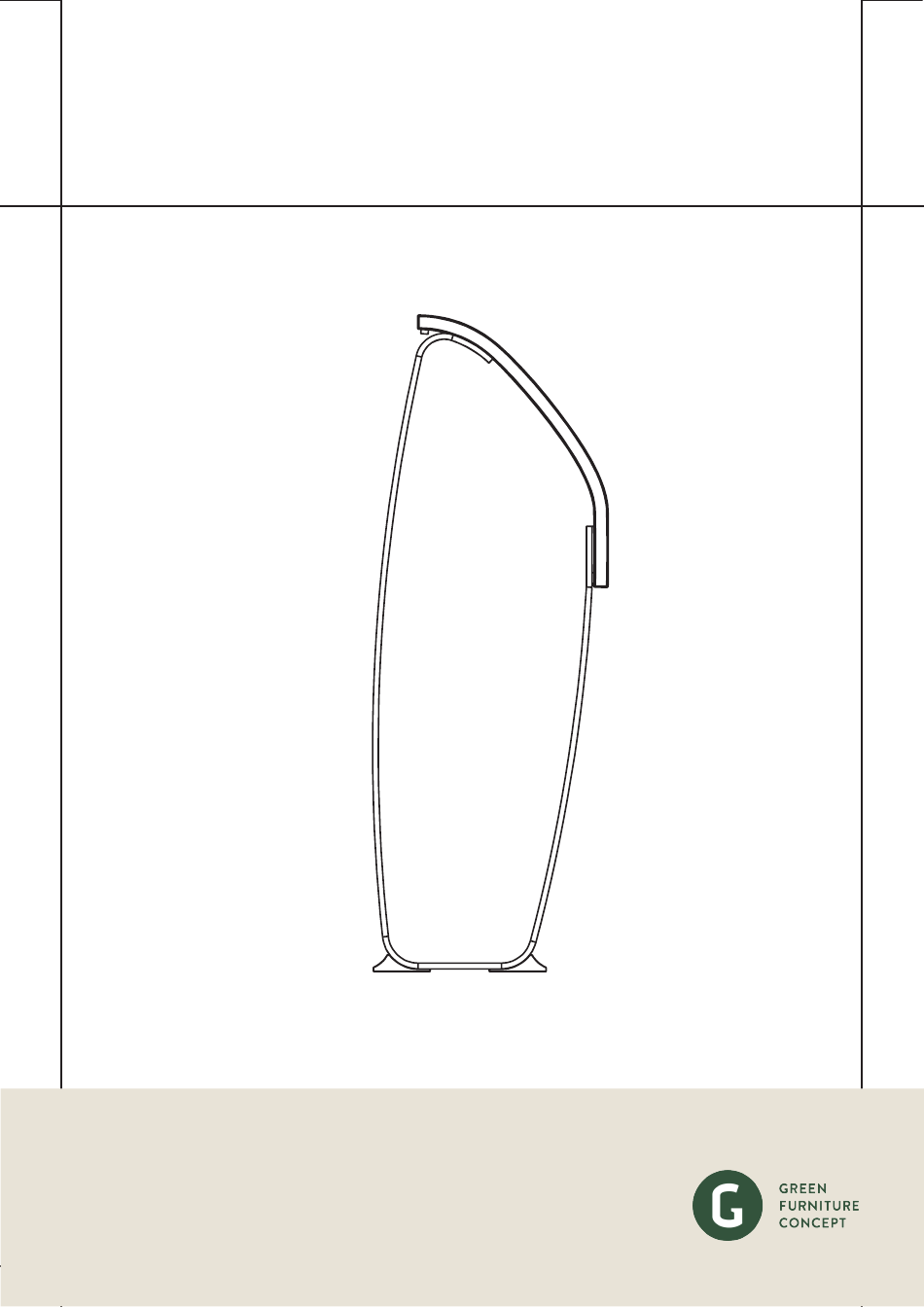

- Page 1 Perch Modules Nova C Series...
- Page 2 Index Apperance Nova C Perch Recycling Nova C Perch Straight Parts Assembly instructions Nova C Perch Straight p4-5 Nova C Perch Concave Parts Assembly instructions Nova C Perch Concave p7-8 Nova C Perch Convex Parts Assembly instructions Nova C Perch Convex p10-11 Nova C Perch Double Stright Parts Assembly instructions Nova C Perch Double Straight...

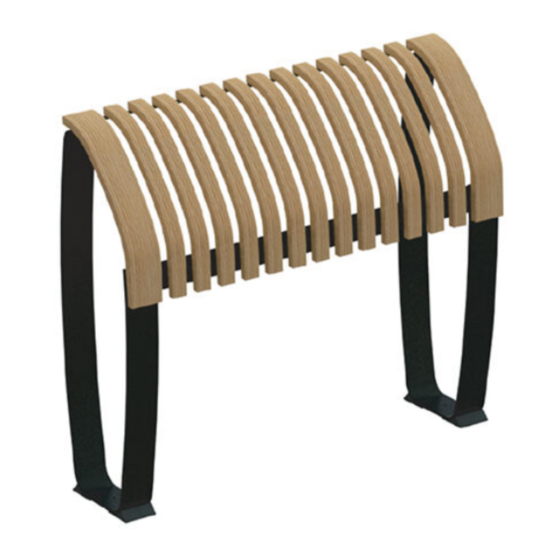

- Page 3 Apperance Nova C Perch Straight Nova C Perch Concave Nova C Perch Convex Nova C Perch Duble Straight Nova C Perch Duble Curved Nova C Perch Green Furniture Concept...
- Page 4 Recycling Wood Metal Plastic Nova C Perch Green Furniture Concept...
- Page 5 Nova C Perch SingleLeg Nova C Perch Wide Rib Nova C Perch Slender Rib Nova C Perch Strip Top Nova C Perch xx Strip Nova C Series Single Glides Screw A x51 Bolt A x16 Screw B x8 Connection plate...
- Page 6 Otherwise it is hard to get the screws screwed all the way in to the ribs and the construction may be unsteady. Attach both the Legs to the Wide Ribs though the Top Strip using Screw B. Nova C Perch Green Furniture Concept...
- Page 7 Assembly instructions Perch Straight Use Bolt A to attach the Connection plates to the leg. When modules stand next to eachother, attach the other side of the Connection plate to the other module. Nova C Perch Green Furniture Concept...
- Page 8 Nova C Perch SingleLeg Nova C Perch Wide Rib Nova C Perch Slender Rib Nova C Perch xx Strip Concave Nova C Perch Concave Strip Top Nova C Series Single Glides Screw A x51 Bolt A x16 Screw B x8 Connection plate...
- Page 9 Otherwise it is hard to get the screws screwed all the way in to the ribs and the construction may be unsteady. Attach both the Legs to the Wide Ribs though the Top Strip using Screw B. Nova C Perch Green Furniture Concept...
- Page 10 Assembly instructions Perch Concave Use Bolt A to attach the Connection plates to the leg. When modules stand next to eachother, attach the other side of the Connection plate to the other module. Nova C Perch Green Furniture Concept...
- Page 11 Nova C Perch SingleLeg Nova C Perch Wide Rib Nova C Perch Slender Rib Nova C Perch xx Strip Convex Nova C Perch Convex Strip Top Nova C Series Single Glides Screw A x51 Bolt A x16 Screw B x8 Connection plate...
- Page 12 Otherwise it is hard to get the screws screwed all the way in to the ribs and the construction may be unsteady. Attach both the Legs to the Wide Ribs though the Top Strip using Screw B. Nova C Perch Green Furniture Concept...
- Page 13 Assembly instructions Nova C Perch Convex Use Bolt A to attach the Connection plates to the leg. When modules stand next to eachother, attach the other side of the Connection plate to the other module. Nova C Perch Green Furniture Concept...
- Page 14 Nova C Perch Doble Leg Nova C Perch Wide Rib Nova C Perch Slender Rib Nova C Perch Strip Top Nova C Perch xx Strip Nova C Series Single Glides Screw A x86 Bolt A x16 Screw B x16 Connection plate...
- Page 15 Attach all Slender Ribs on both sides to Use Screw B to attach the Legs to the the Top Strip using Screw A. Wide Ribs through the xx Strip. Use Bolt A to attach the Connection plates to the leg. Nova C Perch Green Furniture Concept...
- Page 16 Assembly instructions Nova C Perch Double Straight When modules stand next to eachother, attach the other side of the Connection plate to the other module. Nova C Perch Green Furniture Concept...
- Page 17 Nova C Perch Slender Rib Nova C Perch Strip Top Nova C Perch xx S Strip Nova C Perch xx M Strip Screw A x86 Bolt A x16 Screw B x16 Connection plate Nova C Series Single Glides Nova C Perch Green Furniture Concept...
- Page 18 Use Screw B to attach the Legs on both Use Bolt A to attach the Connection sides to the Wide Ribs through the plates to the leg. xx S Strip and the xx M Strip. Nova C Perch Green Furniture Concept...
- Page 19 Assembly instructions Nova C Perch Double Curved When modules stand next to eachother, attach the other side of the Connection plate to the other module. Nova C Perch Green Furniture Concept...
